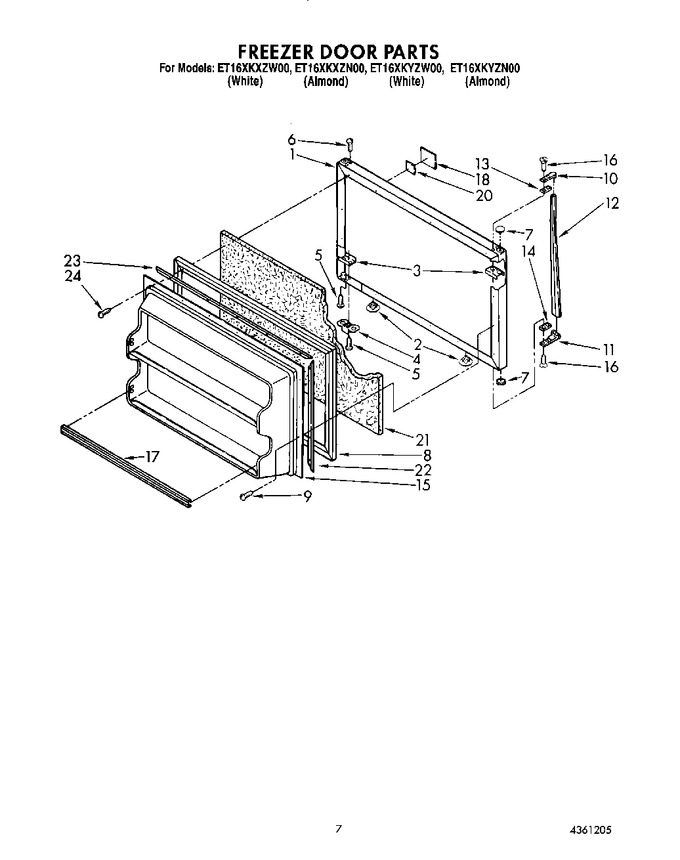

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1103940		Panel, Freezer Door (also Order Item 21) (white)		Appelez-nous	-
1	1103942		Panel, Freezer Door (also Order Item 21) (almond)		Appelez-nous	-
2	989197		Hole Plug (2) (almond)		Appelez-nous	-
2	534927		Hole Plug (2) (white)		Appelez-nous	-
3	943185		Plate, Tap (4)		Appelez-nous	-
4	944035		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
7	989196		Hole Plug (almond)		Appelez-nous	-
8	WP2188456A		Door Gasket (magnetic)   (Replaces: 1122829)				$ 258.49
9	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
9	WPW10141645		Screw (repair)   (Replaces: 489084)				$ 8.05
10	WP2191882		Handle End, Top   (Replaces: 943184)				$ 62.77
11	2148503		Handle End		Appelez-nous	-
12	WP2162555		Handle, Center (white)   (Replaces: 2148037)			Immediately	$ 157.62
12	2148038		Handle, Center (almond)		Appelez-nous	-
13	943187		Shim, Handle				$ 25.14
14	943188		Spacer, Handle Door				$ 7.80
15	1120629		Panel, Interior Door (freezer)		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	1116038		Trim, Door Shelf		Appelez-nous	-
18	2152334		Nameplate				$ 36.13
20	991259		Tape Strip		Appelez-nous	-
21	876029		Insulation Foam (required When Replacing Exterior Door Panel)		Appelez-nous	-
22	1120613		Gasket Retainer, Side (2)		Appelez-nous	-
23	1120614		Gasket Retainer, Top & Bottom (2)				$ 27.51
24	WP488729		Corner Screw (2)   (Replaces: 489287)			Immediately	$ 8.28
