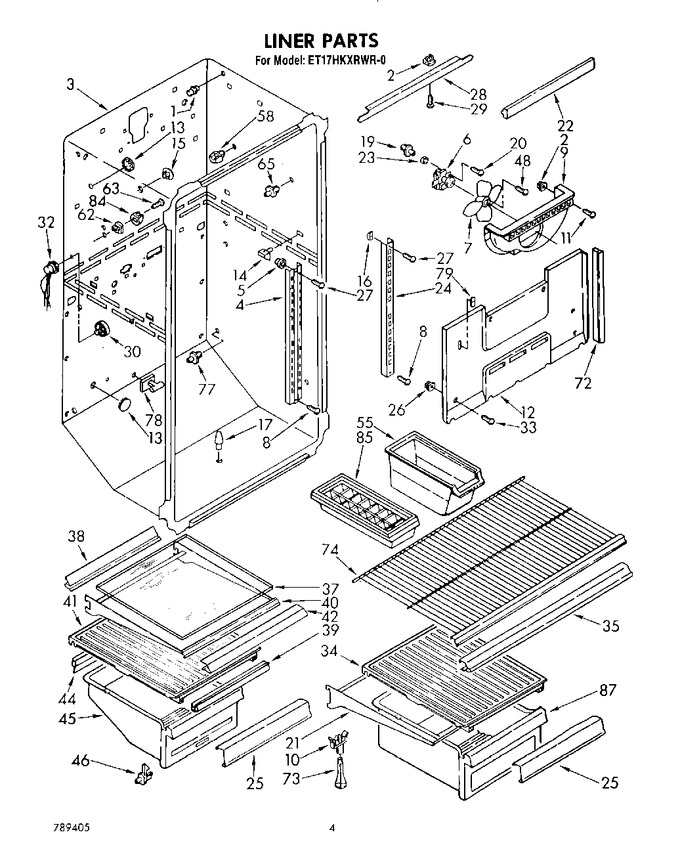

03 - Liner


04 - Breaker And Partition


05 - Unit


06 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	526383		Stud, Evaporator Cover		Appelez-nous	-
2	842339		Grommet		Appelez-nous	-
3	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
4	936230		Ladder, Shelf		Appelez-nous	-
5	520959		Support, Ladder (2)		Appelez-nous	-
6	482731		Fan, Motor   (Replaces: 946653)			Immediately	$ 92.36
7	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 92.26
8	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
8	488980		Screw (repair)		Appelez-nous	-
9	935067		Scroll, Fan		Appelez-nous	-
10	848562		Support, Cover				$ 24.30
11	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
12	986628		Cover, Evaporator		Appelez-nous	-
13	519890		Plug, Hole (4)		Appelez-nous	-
14	836374		Stud, Retainer (4)		Appelez-nous	-
15	659598		Plug, Hole (2)		Appelez-nous	-
16	520965		Support, Ladder (4)				$ 31.35
17	836409		Grommet		Appelez-nous	-
19	845722		Grommet (2)		Appelez-nous	-
20	WP488488		Screw, 8 X 15/16   (Replaces: 488488)				$ 8.52
21	936284		Pan Cantilever, Shelf		Appelez-nous	-
22	935068		Gasket, Sealing		Appelez-nous	-
23	531933		Grommet (2)				$ 5.70
24	934267		Ladder, Shelf (2)		Appelez-nous	-
25	986968		Overlay, Pan		Appelez-nous	-
26	848445		Grommet (4)		Appelez-nous	-
27	488357		Screw, 8 X 1-1/4		Appelez-nous	-
28	984147		Baffle, Liner Top		Appelez-nous	-
29	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 8.40
30	850738		Cap, Receptacle		Appelez-nous	-
32	481658		Wiring, Liner (ice Maker)		Appelez-nous	-
33	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 8.28
34	1109013		Cover, Meat Pan		Appelez-nous	-
35	849261		Trim, Shelf Front		Appelez-nous	-
37	1109017		Glass, Shelf		Appelez-nous	-
38	942183		Retainer, Glass Shelf		Appelez-nous	-
39	982160		Gasket, Front (2)		Appelez-nous	-
40	936794		Shelf, Cantilever (3)		Appelez-nous	-
41	1109010		Pan, Slide & Cover (2)		Appelez-nous	-
42	935215		Trim, Shelf Front		Appelez-nous	-
44	982158		Gasket, Rear (2)		Appelez-nous	-
45	1109012		Pan, Crisper (2)		Appelez-nous	-
46	836423		Stud (2)		Appelez-nous	-
48	00487887		Screw, 3-48 X 1/4 (2)   (Replaces: 487887)				$ 244.80
55	WP982704		Container, Utility   (Replaces: 1106048)				$ 32.55
58	523263		Stud, Saddle (r.s.)		Appelez-nous	-
62	538449		Grommet		Appelez-nous	-
63	WP488729		Screw, 8-15 X 1/2   (Replaces: 487109)			Immediately	$ 8.28
65	529758		Stud, Shelf (2)		Appelez-nous	-
72	981749		Gasket, Evaporator Cover (2)		Appelez-nous	-
73	836410		Post, Crisper				$ 5.84
74	981496		Shelf, Freezer		Appelez-nous	-
77	536475		Stud (2)				$ 7.28
78	836412		Stud		Appelez-nous	-
79	659776		Hole, Plug		Appelez-nous	-
84	836492		Stud, Saddle Shelf (l.s.)		Appelez-nous	-
85	WP841180A		Tray, Ice (2)   (Replaces: 841180)			Immediately	$ 47.84
87	1109015		Pan, Meat		Appelez-nous	-
