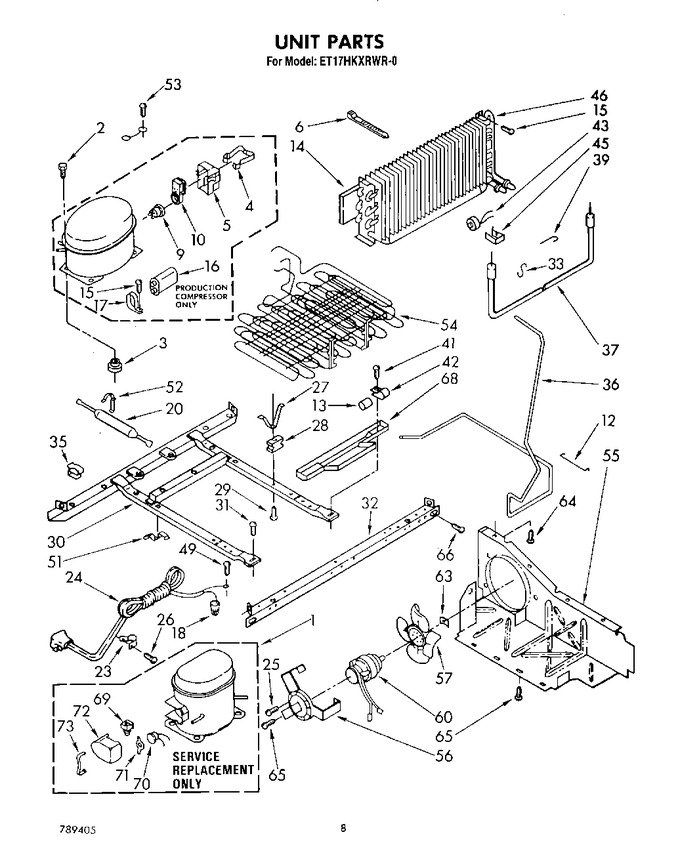

SELECT A DIAGRAM

02 - Cabinet


03 - Liner


04 - Breaker And Partition


05 - Unit


06 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10439652		Compressor (includes Items 69, 70, 71, 72 & 73) (also Order)   (Replaces: 702217)				$ 442.20
1	876765		Tube Kit				$ 90.65
2	876811		Screw, 1/4-2 X 1 (4)   (Replaces: 489116)				$ 7.79
3	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
4	938384		Spring, Case		Appelez-nous	-
5	1105015		Case, Relay		Appelez-nous	-
6	851095		Strap		Appelez-nous	-
9	1100807		Overload		Appelez-nous	-
10	1100806		Relay		Appelez-nous	-
12	850156		Guard, Fan		Appelez-nous	-
13	510769		Dampener (2)		Appelez-nous	-
14	981726		Baffle, Evaporator		Appelez-nous	-
15	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 11.40
16	1101182		Running Capacitor		Appelez-nous	-
17	1101184		Clamp, Capacitor		Appelez-nous	-
18	227991		Wire Connector		Appelez-nous	-
20	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
23	549193		Clamp				$ 14.06
24	850626		Cord, Service		Appelez-nous	-
25	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 13.71
26	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
27	548738		Clamp (4)		Appelez-nous	-
28	943447		Grommet (4)		Appelez-nous	-
29	W11624204		Screw, 8 X 5/8 (4)   (Replaces: 486194)				$ 14.72
30	945457		Frame		Appelez-nous	-
31	488454		Screw, 1/4-28 X 1/2 (2)		Appelez-nous	-
32	548662		Rail, Front		Appelez-nous	-
33	851358		Support, Heater		Appelez-nous	-
35	548745		Clip, Wire (2)		Appelez-nous	-
36	1100820		Exchanger, Heat		Appelez-nous	-
37	992942		Heater, Defrost		Appelez-nous	-
39	850721		Clip, Heater (2)		Appelez-nous	-
41	WPW10141625		Screw, 8-32 X 1/2 (2)   (Replaces: 488197)				$ 22.22
42	510716		Clamp (2)		Appelez-nous	-
43	WP4387489		Defrost, Bimetal (alternate)   (Replaces: 989588)				$ 108.99
43	WP4387489		Defrost, Bimetal   (Replaces: 989589)				$ 108.99
45	513584		Clamp		Appelez-nous	-
46	1105115		Evaporator		Appelez-nous	-
49	488474		Screw		Appelez-nous	-
51	548744		Clip (2)		Appelez-nous	-
52	548508		Clamp		Appelez-nous	-
53	303776		Screw   (Replaces: 488879)		Appelez-nous	-
54	943480		Condenser & Precooler		Appelez-nous	-
55	850764		Baffle		Appelez-nous	-
56	548695		Bracket		Appelez-nous	-
57	989524		Fan		Appelez-nous	-
60	833697		Motor   (Replaces: 945566)			Immediately	$ 109.14
63	WP486692		Nut, Speed   (Replaces: 486692)				$ 8.43
64	489050		Screw, 8-32 X 1/2				$ 692.56
65	488624		Screw, 8 X 3/8		Appelez-nous	-
66	489340		Screw, 5/16-18 X 5/8 (4)   (Replaces: 488683)		Appelez-nous	-
68	945572		Pan, Drip		Appelez-nous	-
69	549500		Relay		Appelez-nous	-
70	936073		Overload		Appelez-nous	-
71	549086		Overload Spring		Appelez-nous	-
72	549336		Cover		Appelez-nous	-
73	876764		Valve, Access(3/16``)			Immediately	$ 95.92
73	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
73	549342		Strap		Appelez-nous	-
73	978026		Valve, Access (5/16``)			Immediately	$ 134.49
73	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
73	978028		Valve, Access (1/2)		Appelez-nous	-
73	978029		Valve Access (5/8``)				$ 93.85
73	978030		Valve, Access (3/4``)				$ 137.25
