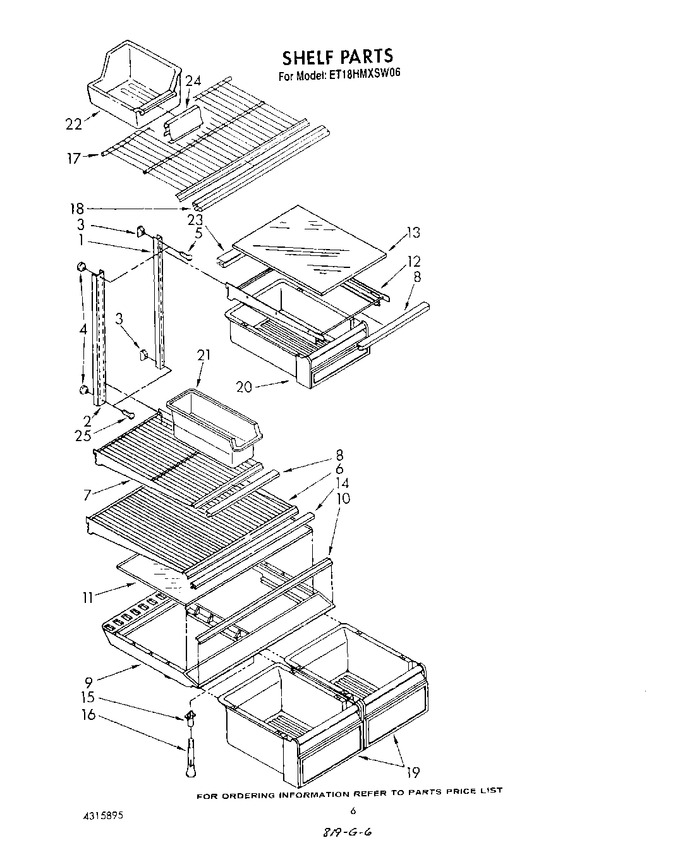

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1111807		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support (4)				$ 29.86
4	520959		Screw, Support Center (2)		Appelez-nous	-
5	489148		Screw, 8-32 X 1-1/4 (3)		Appelez-nous	-
6	1111783		Shelf, Wire Cantilever Full Shelf		Appelez-nous	-
7	1111782		Shelf, Cantilever		Appelez-nous	-
8	1111808		Trim, Shelf		Appelez-nous	-
9	1111861		Crisper Cover		Appelez-nous	-
10	946436		Trim, Crisper Cover		Appelez-nous	-
11	1111862		Glass, Crisper Cover		Appelez-nous	-
12	1111789		Pan Shelf, Cantilever		Appelez-nous	-
13	1111864		Glass, Shelf		Appelez-nous	-
14	1111834		Trim, Shelf		Appelez-nous	-
15	1103731		Support, Crisper Cover		Appelez-nous	-
16	836410		Post, Cripser Cover				$ 5.84
17	943725		Shelf, Freezer		Appelez-nous	-
18	1111814		Trim, Shelf Front		Appelez-nous	-
19	1111863		Pan, Crisper		Appelez-nous	-
20	1111866		Pan, Meat		Appelez-nous	-
21	WP982704		Container   (Replaces: 1108734)				$ 31.00
22	934051		Ice Cube Pan		Appelez-nous	-
23	1111865		Retainer, Glass Shelf		Appelez-nous	-
24	654218		Trim Ice Pan		Appelez-nous	-
25	WP488163		Screw, 8 X 1 (3)   (Replaces: 488163)				$ 7.54
