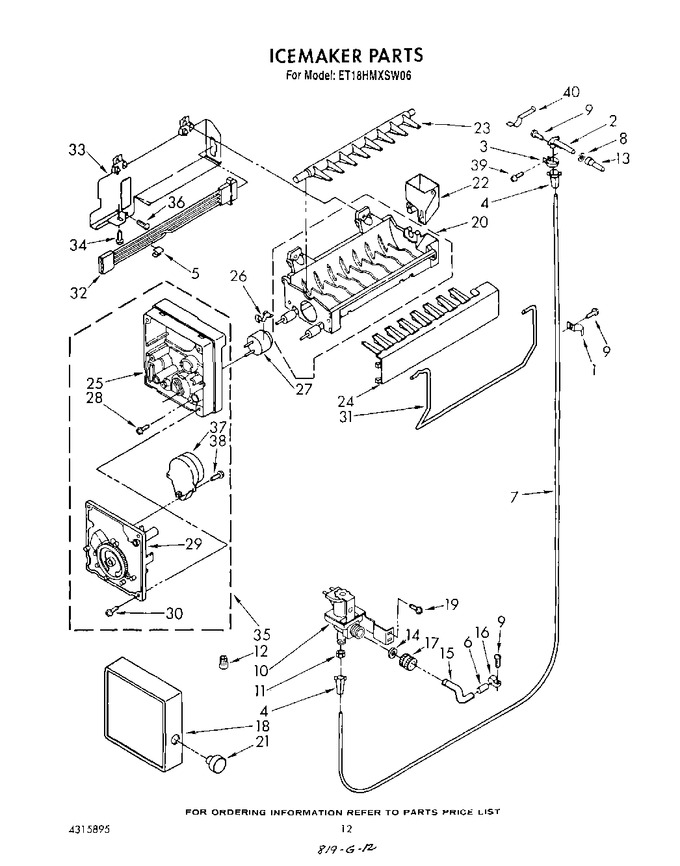

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP488366		Clamp, Tube   (Replaces: 488366)				$ 11.18
2	WP2196157		Fitting, Water Tube   (Replaces: 836489)			Immediately	$ 11.99
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 11.60
4	4387491		Insert, Tube   (Replaces: 841707)				$ 7.84
5	WP628379		Clip, Fuse   (Replaces: 628170)				$ 10.57
6	WP2158826		Dampener   (Replaces: 836074)				$ 1.73
7	W10823511		Tube, Water   (Replaces: 1108197)			Immediately	$ 32.41
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.93
9	WP681414		Screw (repair)   (Replaces: 489254)			Immediately	$ 7.85
9	WP489478		Screw   (Replaces: 489242)				$ 7.75
10	4318047		Valve Solenoid   (Replaces: 627910)			Immediately	$ 74.09
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.97
12	227991		Connector Wire		Appelez-nous	-
13	939027		Tube, Water Inlet		Appelez-nous	-
14	489323		Washer		Appelez-nous	-
15	627883		Tube, Inlet Valve		Appelez-nous	-
16	510716		Clamp Tube		Appelez-nous	-
17	537588		Nut, Valve		Appelez-nous	-
18	WPW10289690		Cover   (Replaces: 1116224)			Immediately	$ 8.40
19	WPW10141625		Screw, 8-32 X 1/2   (Replaces: 488649)				$ 21.16
20	WP542638		Silicone Grease   (Replaces: 542638)			Immediately	$ 12.18
20	WPW10190929		Mold & Heater Assembly (also Order)   (Replaces: 628189)				$ 233.15
21	627992		Knob		Appelez-nous	-
22	WP628356		Bearing & Inlet   (Replaces: 627791)				$ 51.19
23	WP627843		Ejector   (Replaces: 627843)				$ 83.60
24	WP2182124		Ice Striper   (Replaces: 627788)				$ 86.05
25	WP2195914		Support   (Replaces: 627790)				$ 104.57
26	WP2315522		Retainer, Thermostat   (Replaces: 627796)				$ 11.05
27	542369		Cement Alumilastic)		Appelez-nous	-
27	WP627985		Thermostat (also Order)   (Replaces: 627985)				$ 109.18
28	8533917		Screw   (Replaces: 489322)				$ 13.37
29	W10190935		Module, Assembly   (Replaces: 628247)			Immediately	$ 110.07
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.86
31	WP627792		Shut Off Arm   (Replaces: 627792)				$ 84.53
32	WP2187464		Harness, Wiring   (Replaces: 628171)				$ 124.57
33	627751		Shield, Heat		Appelez-nous	-
34	00489128		Screw, 8-32 X 27/64   (Replaces: 489128)				$ 859.97
35	W10190935		Module Assembly (includes Items 25, 28, 29, 30, 37, & 38)   (Replaces: 483042)			Immediately	$ 110.07
36	486214		Screw 8-15 X 1/2		Appelez-nous	-
37	W10190935		Motor   (Replaces: 627811)			Immediately	$ 110.07
38	489136		Screw (3-24 X 23/64)				$ 10.29
39	WP488787		Screw, (8-18 X 1/2)   (Replaces: 488886)				$ 10.58
40	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
40	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 17.91
40	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
40	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
40	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 51.44
40	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
40	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
40	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
40	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
40	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
40	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
40	652604		Clip		Appelez-nous	-
40	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
40	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
40	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
40	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
40	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
40	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
40	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
40	350942		Primer White (13 Oz. Spray Can)				$ 89.66
40	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
40	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
40	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
40	261890		Xenamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
40	285365		Paint, Spray (13 Oz.) (toast)		Appelez-nous	-
40	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
40	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
40	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
40	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 117.11
40	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
40	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
40	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
40	285368		Enamel, Platinum (1 Qt. Uncut)		Appelez-nous	-
40	833938		Kit, Terminal Connector				$ 8.07
	LIT1120606		Label, Use & Care Guide		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT1124890		Energy Label		Appelez-nous	-
	LIT4315895		Parts List		Appelez-nous	-
	LIT1115572		Service & Wiring Sheet		Appelez-nous	-
	LIT628107		Modular Icemaker Service Sheet		Appelez-nous	-
