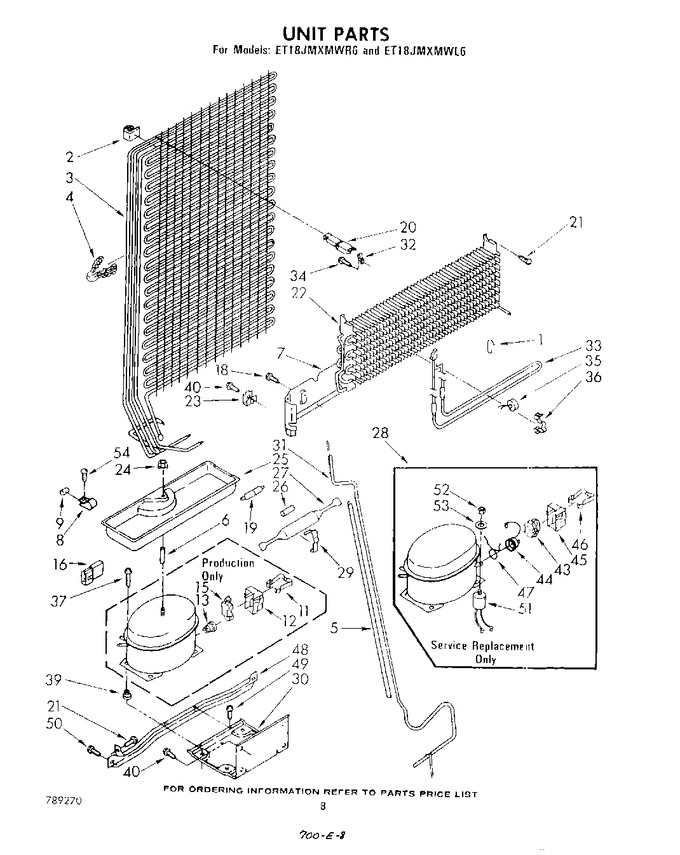

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1108172		Support, Heater		Appelez-nous	-
2	1103640		Bumper (2)		Appelez-nous	-
3	1108183		Condenser & Precooler Assembly		Appelez-nous	-
4	1106781		Clip, Tube (2)		Appelez-nous	-
5	1108073		Sleeve		Appelez-nous	-
6	1105130		Spacer		Appelez-nous	-
7	1108359		Heat Shield Evaporator		Appelez-nous	-
8	510716		Tube Clamp		Appelez-nous	-
9	945593		Dampener		Appelez-nous	-
11	938384		Spring, Relay Case		Appelez-nous	-
12	1108144		Case, Relay		Appelez-nous	-
13	1105163		Overload		Appelez-nous	-
15	946615		Relay		Appelez-nous	-
16	934326		Housing Plug		Appelez-nous	-
18	WP965173		Screw, 8 X 3/8   (Replaces: 487869)			Immediately	$ 11.87
19	1101043		Muffler		Appelez-nous	-
20	1100636		Condenser, Stand-off		Appelez-nous	-
21	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
22	943762		Evaporator		Appelez-nous	-
23	4386951		Clip, Condenser Mounting (2)   (Replaces: 942852)		Appelez-nous	-
24	285002		Nut   (Replaces: 489153)				$ 12.85
25	1101002		Evaporator Tray		Appelez-nous	-
26	510446		Restrictor Sleeve		Appelez-nous	-
27	W10843121		Dryer   (Replaces: 945424)			Immediately	$ 57.13
28	482981		Compressor (includes Items 43, 44, 45, 46, 47, 51, 52 & 53) (also Order 482801 Mounting Kit & 876765		Appelez-nous	-
29	547637		Clamp, Drier		Appelez-nous	-
30	942860		Unit Mounting Plate		Appelez-nous	-
31	1108092		Exchanger, Heat		Appelez-nous	-
32	1100707		Clip, Stand Off		Appelez-nous	-
33	1105165		Heater, Defrost		Appelez-nous	-
34	488624		Screw, 8 X 3/8		Appelez-nous	-
35	WP4387499		Bi-metal, Defrost   (Replaces: 942871)				$ 126.90
36	942873		Clamp		Appelez-nous	-
37	876811		Screw, 1/4-28 X 1   (Replaces: 489116)				$ 7.79
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.79
40	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 8.40
43	WP2262181		Relay   (Replaces: 1108143)				$ 128.78
44	483037		Overload		Appelez-nous	-
45	1105015		Cover, Terminal		Appelez-nous	-
46	938384		Strap		Appelez-nous	-
47	1114190		Overload Spring		Appelez-nous	-
48	943755		Rail, Unit Mounting		Appelez-nous	-
49	WP965173		Screw   (Replaces: 487248)			Immediately	$ 11.87
50	488973		Screw, 1/4-28 X 1		Appelez-nous	-
51	482996		Capacitor		Appelez-nous	-
52	489142		Nut		Appelez-nous	-
53	489143		Washer		Appelez-nous	-
54	876764		Valve, Access(3/16``)			Immediately	$ 95.92
54	978028		Valve, Access (1/2)		Appelez-nous	-
54	978029		Valve Access (5/8``)				$ 93.85
54	978030		Valve, Access (3/4``)				$ 137.25
54	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
54	489050		Screw, 8-32 X 1/2				$ 692.56
54	978026		Valve, Access (5/16``)			Immediately	$ 134.49
54	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
