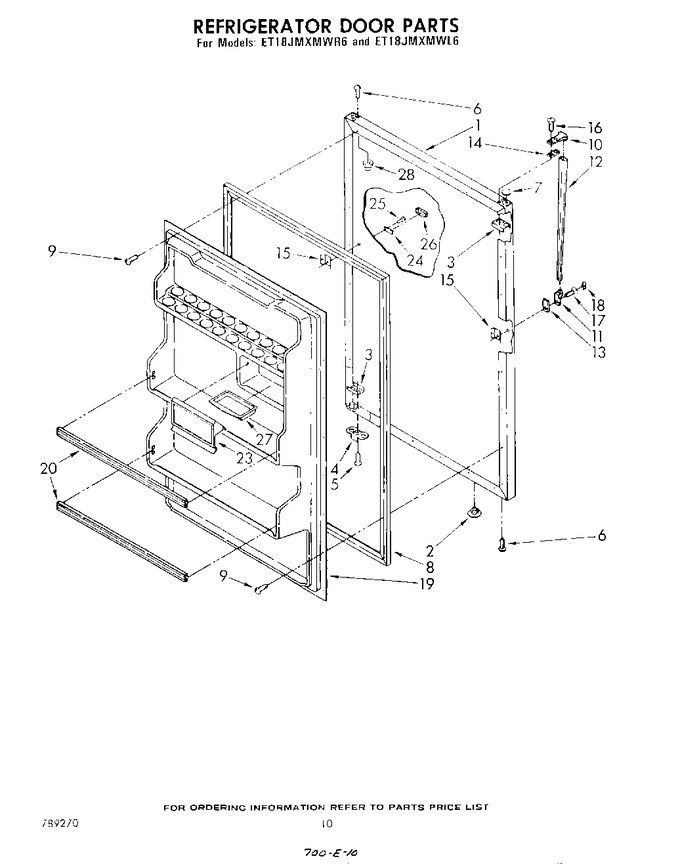

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1104638 | Panel, Refrigerator Door (platinum) |
|
- | |||||
| 1 | 1104636 | Panel, Refrigerator Door (almond) |
|
- | |||||
| 1 | 1104634 | Panel, Refrigerator Door (golden Harvest) |
|
- | |||||
| 1 | 1104632 | Panel, Refrigerator Door (white) |
|
- | |||||
| 1 | 1104637 | Panel, Refrigerator Door (toast) |
|
- | |||||
| 2 | 534927 | Hole Plug (2) |
|
- | |||||
| 3 | 943185 | Plate, Tap (4) |
|
- | |||||
| 4 | 944036 | Bracket, Door Stop |
|
- | |||||
| 5 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 7.75 | ||||
| 6 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 7.94 | |||||
| 6 | 488930 | Screw (repair) |
|
- | |||||
| 7 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 7.80 | ||||
| 7 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 7.80 | ||||
| 8 | 1109186 | Door Gasket, Magnetic (for Platinum Model Only) |
|
- | |||||
| 8 | 1109188 | Door Gasket, Magnetic |
|
- | |||||
| 9 | WP681414 | Screw ((repair)) (Replaces: 488552) |
|
Immediately | $ 7.85 | ||||
| 9 | WP489069 | Screw, 7 X 1/2 (Replaces: 489101) |
|
Immediately | $ 7.86 | ||||
| 10 | 943182 | Handle End (for Platinum Model Only) |
|
- | |||||
| 10 | 819342 | Handle, End (Replaces: 1101861) |
|
Immediately | $ 47.96 | ||||
| 11 | WP2183139 | Handle End, Side (for Platinum Model Only) (Replaces: 1101632) |
|
Immediately | $ 49.50 | ||||
| 11 | 819342 | Handle End, Side (Replaces: 1110055) |
|
Immediately | $ 47.96 | ||||
| 12 | 1104738 | Handle, Center (for Platinum Model Only) |
|
- | |||||
| 12 | 982946 | Handle, Center |
|
- | |||||
| 13 | 992872 | Shim, Handle End (side) |
|
- | |||||
| 14 | 943188 | Spacer, Handle Door |
|
$ 7.80 | |||||
| 15 | WP939101 | Screw Anchor (2) (Replaces: 939101) |
|
$ 7.50 | |||||
| 16 | WP488920 | Screw, 8 X 5/8 (2) (Replaces: 488920) |
|
$ 7.49 | |||||
| 17 | WP488729 | Screw, 8 X 1/2 (Replaces: 487875) |
|
Immediately | $ 7.79 | ||||
| 18 | WP1101634 | Screw Cover (for Platinum Model Only) (Replaces: 1101634) |
|
$ 9.22 | |||||
| 18 | WP1101634 | Screw Cover (Replaces: 1101864) |
|
$ 9.22 | |||||
| 19 | 945886 | Interior Door Panel (for Platinum Model Only) |
|
- | |||||
| 19 | 946827 | Interior Door Panel |
|
- | |||||
| 20 | 946819 | Trim, Door (2) |
|
- | |||||
| 23 | 946998 | Compartment Door, Butter |
|
- | |||||
| 24 | 843213 | Clip, Medallion |
|
- | |||||
| 25 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 7.79 | ||||
| 26 | 1100195 | Medallion (platinum) |
|
- | |||||
| 26 | 989904 | Medallion (almond) |
|
- | |||||
| 26 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 26 | 848382 | Medallion (white) |
|
- | |||||
| 26 | 1100194 | Medallion (toast) |
|
- | |||||
| 27 | 520747 | Tray, Butter |
|
- | |||||
| 28 | 509929 | Cap, Hinge Sleeve |
|
- |
