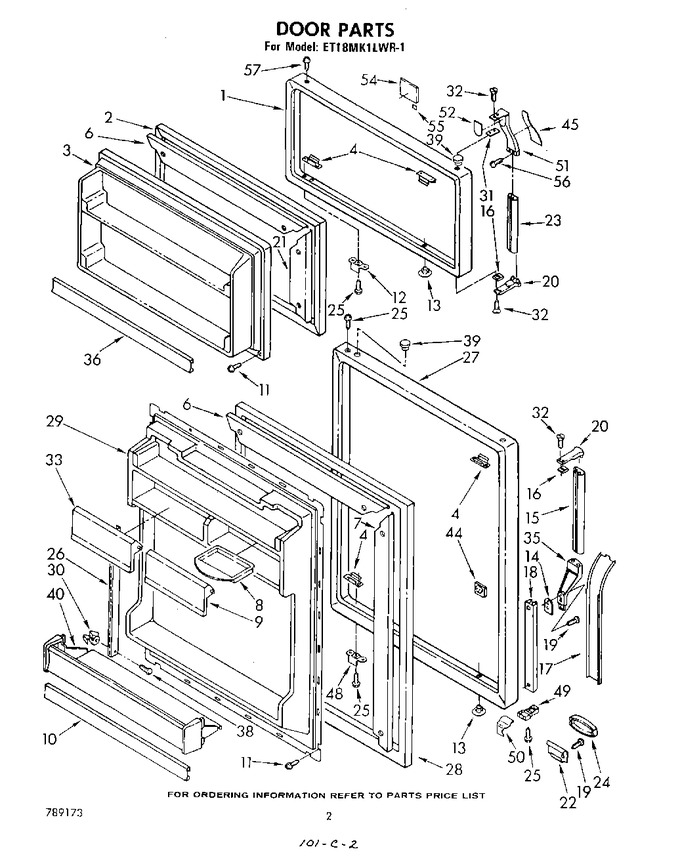

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
02 - Door
03 - Cabinet
04 - Shelf
05 - Compartment Separator And Control
06 - Unit
07 - Liner , Not Illustrated And Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 944142 | Door, Freezer (coffee) |
|
- | |||||
| 1 | 1100187 | Door, Freezer (platinum) |
|
- | |||||
| 1 | 1100186 | Door, Freezer (toast) |
|
- | |||||
| 1 | 944145 | Door, Freezer (almond) |
|
- | |||||
| 1 | 944143 | Door, Freezer (golden Harvest) |
|
- | |||||
| 1 | 944144 | Door, Freezer (new Avocado) |
|
- | |||||
| 1 | 944141 | Door, Freezer (white) |
|
- | |||||
| 2 | 987037 | Gasket, Freezer Door (for Platinum Model Only) |
|
- | |||||
| 2 | 942903 | Gasket, Freezer Door |
|
- | |||||
| 3 | 1100216 | Panel, Inteiror (for Platinum Model Only) |
|
- | |||||
| 3 | 943130 | Panel, Interior |
|
- | |||||
| 4 | 943185 | Tap Plate (2) |
|
- | |||||
| 6 | 836115 | Retainer, Top & Bottom (2) |
|
- | |||||
| 7 | 836117 | Retainer, Side (2) |
|
- | |||||
| 8 | 520747 | Tray, Butter |
|
- | |||||
| 9 | 939300 | Door, Butter |
|
- | |||||
| 10 | 939359 | Trim, Shelf (2) |
|
- | |||||
| 11 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.72 | |||||
| 11 | WP681414 | Screw, 10-12 X 3/8 (Replaces: 488552) |
|
Immediately | $ 8.47 | ||||
| 12 | 944035 | Bracket, Door Stop |
|
- | |||||
| 13 | 534927 | Plug, Hole |
|
- | |||||
| 14 | 935075 | Shim, Handle |
|
- | |||||
| 15 | 935083 | Center, Handle (new Avocado) |
|
- | |||||
| 15 | 944158 | Handle, Center (white & Coffee) |
|
- | |||||
| 15 | 935084 | Handle, Center (golden Harvest) |
|
- | |||||
| 15 | 1100192 | Center, Handle (toast) |
|
- | |||||
| 15 | 1100193 | Center, Handle (platinum) |
|
- | |||||
| 15 | 943068 | Center, Handle (almond) |
|
- | |||||
| 16 | 943188 | Spacer, Handle |
|
$ 7.80 | |||||
| 17 | 935881 | Insert, Handle |
|
- | |||||
| 18 | 935871 | Retainer, Insert |
|
- | |||||
| 19 | WP488729 | Screw, 8 X 1/2 (Replaces: 487909) |
|
Immediately | $ 8.28 | ||||
| 20 | 944157 | Cap, Handle |
|
- | |||||
| 21 | 836119 | Retainer, Side (2) |
|
- | |||||
| 22 | 843213 | Clip, Medallion |
|
- | |||||
| 23 | 944164 | Handle, Center (white, Coffee) |
|
- | |||||
| 23 | 935081 | Handle, Center (golden Harvest) |
|
- | |||||
| 23 | 1100200 | Center, Handle (toast) |
|
- | |||||
| 23 | 935080 | Handle, Center (new Avocado) |
|
- | |||||
| 23 | 943081 | Handle, Center (almond) |
|
- | |||||
| 23 | 1100201 | Center, Handle (platinum) |
|
- | |||||
| 24 | 848382 | Medallion (white) |
|
- | |||||
| 24 | 989901 | Medallion (coffee) |
|
- | |||||
| 24 | 989902 | Medallion (new Avocado) |
|
- | |||||
| 24 | 989903 | Medallion (golden Harvest) |
|
- | |||||
| 24 | 989904 | Medallion (almond) |
|
- | |||||
| 24 | 1100194 | Medallion (toast) |
|
- | |||||
| 24 | 1100195 | Medallion (platinum) |
|
- | |||||
| 25 | WP488921 | Screw, 8 X 1/2 (Replaces: 488921) |
|
Immediately | $ 8.24 | ||||
| 25 | 488930 | Screw (repair) |
|
- | |||||
| 26 | 939361 | Ladder, Door Shelf (2) |
|
- | |||||
| 27 | 944148 | Door, Refrigerator (white) |
|
- | |||||
| 27 | 1100185 | Door, Refrigerator (platinum) |
|
- | |||||
| 27 | 1100184 | Door, Refrigerator (toast) |
|
- | |||||
| 27 | 944152 | Door, Refrigerator (almond) |
|
- | |||||
| 27 | 944150 | Door, Refrigerator (golden Harvest) |
|
- | |||||
| 27 | 944151 | Door, Refrigerator (new Avocado) |
|
- | |||||
| 27 | 944149 | Door, Refrigerator (coffee) |
|
- | |||||
| 28 | 987036 | Gasket, Refrigerator Door (for Platinum Model Only) |
|
- | |||||
| 28 | 942299 | Gasket, Refrigerator Door |
|
- | |||||
| 29 | 1100213 | Panel, Interior (for Platinum Model Only) |
|
- | |||||
| 29 | 943131 | Panel, Interior |
|
- | |||||
| 30 | 537095 | Clip, Expansion (4) |
|
- | |||||
| 31 | 943187 | Shim, Handle |
|
$ 25.14 | |||||
| 32 | WP488920 | Screw, 8 X 5/8 (Replaces: 488920) |
|
$ 7.98 | |||||
| 32 | 488923 | Screw (repair) |
|
- | |||||
| 33 | 939301 | Door, Utility |
|
- | |||||
| 35 | 935103 | End Cap, Center |
|
- | |||||
| 36 | 939365 | Trim, Shelf (2) |
|
- | |||||
| 38 | WP488729 | Screw, 8 X 1/2 (Replaces: 488320) |
|
Immediately | $ 8.28 | ||||
| 39 | 1100188 | Hole Plug (toast) |
|
- | |||||
| 39 | WP2212648 | Plug, Hole (white) (Replaces: 844478) |
|
Immediately | $ 8.19 | ||||
| 39 | 989892 | Plug, Hole (coffee) |
|
- | |||||
| 39 | 989894 | Plug, Hole (new Avocado) |
|
- | |||||
| 39 | WP2212648 | Plug, Hole (golden Harvest) (Replaces: 989893) |
|
Immediately | $ 8.19 | ||||
| 39 | 989196 | Plug, Hole (almond) |
|
- | |||||
| 39 | 1100189 | Hole Plug (platinum) |
|
- | |||||
| 40 | 943132 | Door Shelf, Cantilever |
|
- | |||||
| 40 | 1100214 | Door Shelf, Cantilever (for Platinum Model Only) |
|
- | |||||
| 44 | WP939101 | Screw, Anchor (Replaces: 939101) |
|
$ 7.88 | |||||
| 45 | 935077 | Insert, Handle |
|
- | |||||
| 48 | 944036 | Bracket, Door Stop |
|
- | |||||
| 49 | 944166 | End Cap, Insert Retainer |
|
- | |||||
| 50 | 944167 | Shim, End Cap |
|
- | |||||
| 51 | 944163 | Top End Cap Handle |
|
$ 53.54 | |||||
| 52 | 935074 | Shim, Handle End Cap |
|
- | |||||
| 54 | 945116 | Nameplate Assembly |
|
- | |||||
| 55 | 991259 | Tape |
|
- | |||||
| 56 | 489022 | Screw, 6-20 X 3/8 (2) |
|
- | |||||
| 57 | WP8281206 | Screw, 8-15 X 1/2 (Replaces: 489028) |
|
$ 8.37 |
