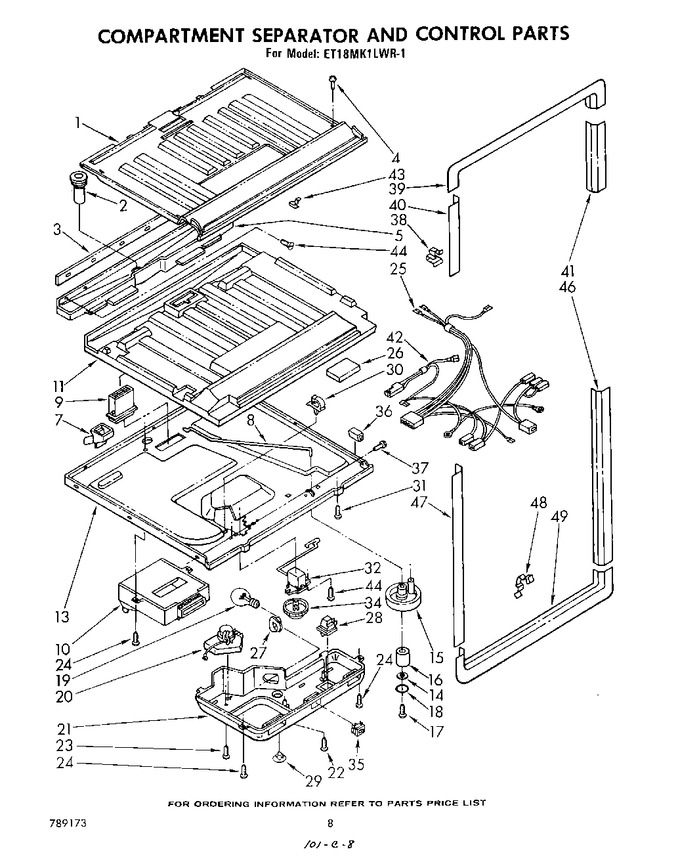

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	937257		Top, Compartment Separator		Appelez-nous	-
2	836088		Drain Insert		Appelez-nous	-
3	937292		Gasket, Drain Pan		Appelez-nous	-
4	WP488729		Screw, 8 X 1/2 (4)   (Replaces: 488320)			Immediately	$ 8.28
5	937291		Drain Pan		Appelez-nous	-
7	939191		Cup, Drain				$ 5.84
8	937271		Connecting Rod		Appelez-nous	-
9	939078		Air Duct Extension		Appelez-nous	-
10	937283		Air Diffuser		Appelez-nous	-
11	937256		Insulation, Compartment Separator		Appelez-nous	-
13	941712		Bottom, Compartment Separator		Appelez-nous	-
14	489071		Washer		Appelez-nous	-
15	937270		Knob, Air Control		Appelez-nous	-
16	941767		Spacer, Knob		Appelez-nous	-
17	489074		Screw		Appelez-nous	-
18	489072		``o`` Ring Seal		Appelez-nous	-
19	W11679940		Bulb   (Replaces: 946059)			Immediately	$ 11.30
20	W10822278		Defrost Timer (10 Hr.)   (Replaces: 945486)			Immediately	$ 34.44
21	935726		Box, Control		Appelez-nous	-
22	488678		Screw, 8 X 1-3/8 (2)		Appelez-nous	-
23	WP487353		Screw, 6-20 X 1/2 (2)   (Replaces: 488693)				$ 7.95
24	WP489069		Screw, 8 X 1/2   (Replaces: 488764)			Immediately	$ 8.40
25	941722		Control Box Wiring		Appelez-nous	-
26	939083		Insulation (2)		Appelez-nous	-
27	4387478		Socket   (Replaces: 851067)			Immediately	$ 115.67
28	W11384469		Switch, Rocker Arm   (Replaces: 549702)			Immediately	$ 39.09
29	940014		Hole Plug				$ 18.33
30	851039		Fastener, Wire		Appelez-nous	-
31	488206		Screw, 8 X 1 (2)		Appelez-nous	-
32	WP819470		Thermostat   (Replaces: 937272)				$ 164.96
34	937144		Knob, Thermostat		Appelez-nous	-
35	938049		Switch, Toggle		Appelez-nous	-
36	939143		Wiring Protector (2)		Appelez-nous	-
37	488624		Screw, 8 X 3/8 (10)		Appelez-nous	-
38	941876		Clip, Liner		Appelez-nous	-
39	937263		Breaker, Freezer (top)		Appelez-nous	-
40	941709		Breaker, Freezer (l.s.)		Appelez-nous	-
41	941708		Breaker, Freezer (r.s.)		Appelez-nous	-
42	941725		Wiring Assembly (ground & Test)		Appelez-nous	-
43	534365		Clip				$ 14.83
44	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 14.72
46	937258		Breaker, Refrigerator R.s.		Appelez-nous	-
47	937259		Breaker, Refrigerator L.s.		Appelez-nous	-
48	939139		Clip, Wrapper (11)		Appelez-nous	-
49	937260		Breaker, Refrigerator (bottom)		Appelez-nous	-
