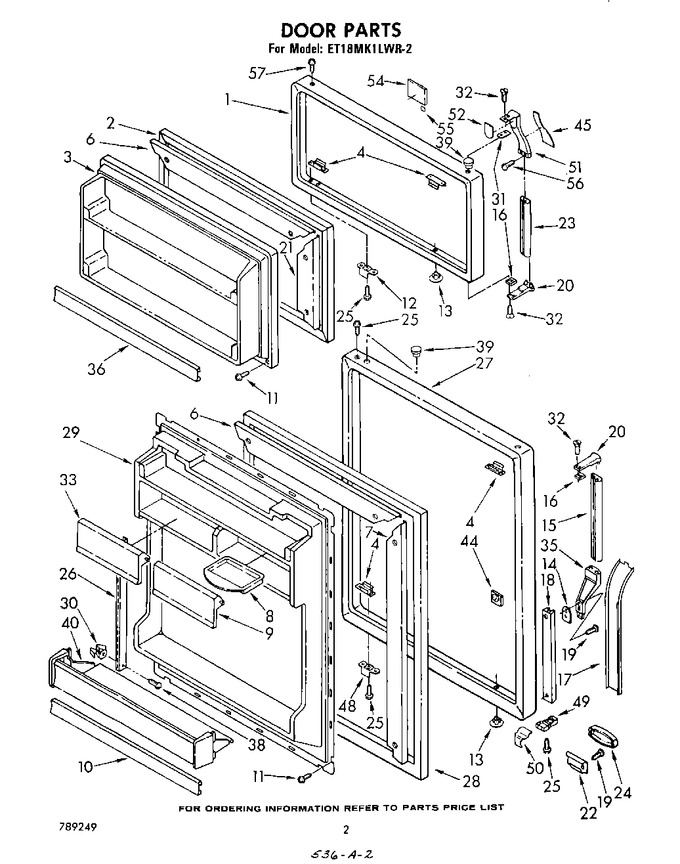

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	944141		Door, Freezer (white)		Appelez-nous	-
1	1100187		Door, Freezer (platinum)		Appelez-nous	-
1	1100186		Door, Freezer (toast)		Appelez-nous	-
1	944145		Door, Freezer (almond)		Appelez-nous	-
1	944143		Door, Freezer (golden Harvest)		Appelez-nous	-
1	944142		Door, Freezer (coffee)		Appelez-nous	-
2	987037		Gasket, Freezer Door (for Platinum Model Only)		Appelez-nous	-
2	942903		Gasket, Freezer Door		Appelez-nous	-
3	943130		Panel, Interior		Appelez-nous	-
3	1100216		Panel, Inteiror (for Platinum Model Only)		Appelez-nous	-
4	943185		Tap Plate (2)		Appelez-nous	-
6	836115		Retainer, Top & Bottom (2)		Appelez-nous	-
7	836117		Retainer, Side (2)		Appelez-nous	-
8	520747		Tray, Butter		Appelez-nous	-
9	939300		Door, Butter		Appelez-nous	-
10	939359		Trim, Shelf (2)		Appelez-nous	-
11	WP489069		Screw, 7 X 1/2   (Replaces: 489089)			Immediately	$ 8.40
11	WP681414		Screw, 10-12 X 3/8   (Replaces: 488552)			Immediately	$ 8.47
12	944035		Bracket, Door Stop		Appelez-nous	-
13	534927		Plug, Hole		Appelez-nous	-
14	935075		Shim, Handle		Appelez-nous	-
15	944158		Handle, Center (white & Coffee)		Appelez-nous	-
15	1100193		Center, Handle (platinum)		Appelez-nous	-
15	1100192		Center, Handle (toast)		Appelez-nous	-
15	935084		Handle, Center (golden Harvest)		Appelez-nous	-
15	943068		Center, Handle (almond)		Appelez-nous	-
16	943188		Spacer, Handle				$ 7.80
17	935881		Insert, Handle		Appelez-nous	-
18	935871		Retainer, Insert		Appelez-nous	-
19	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
20	944157		Cap, Handle		Appelez-nous	-
21	836119		Retainer, Side (2)		Appelez-nous	-
22	843213		Clip, Medallion		Appelez-nous	-
23	943081		Handle, Center (almond)		Appelez-nous	-
23	1100201		Center, Handle (platinum)		Appelez-nous	-
23	935081		Handle, Center (golden Harvest)		Appelez-nous	-
23	1100200		Center, Handle (toast)		Appelez-nous	-
23	944164		Handle, Center (white, Coffee)		Appelez-nous	-
24	848382		Medallion (white)		Appelez-nous	-
24	989901		Medallion (coffee)		Appelez-nous	-
24	989903		Medallion (golden Harvest)		Appelez-nous	-
24	989904		Medallion (almond)		Appelez-nous	-
24	1100194		Medallion (toast)		Appelez-nous	-
24	1100195		Medallion (platinum)		Appelez-nous	-
25	488930		Screw (repair)		Appelez-nous	-
25	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
26	939361		Ladder, Door Shelf (2)		Appelez-nous	-
27	1100184		Door, Refrigerator (toast)		Appelez-nous	-
27	1100185		Door, Refrigerator (platinum)		Appelez-nous	-
27	944149		Door, Refrigerator (coffee)		Appelez-nous	-
27	944148		Door, Refrigerator (white)		Appelez-nous	-
27	944152		Door, Refrigerator (almond)		Appelez-nous	-
27	944150		Door, Refrigerator (golden Harvest)		Appelez-nous	-
28	942299		Gasket, Refrigerator Door		Appelez-nous	-
28	987036		Gasket, Refrigerator Door (for Platinum Model Only)		Appelez-nous	-
29	1100213		Panel, Interior (for Platinum Model Only)		Appelez-nous	-
29	943131		Panel, Interior		Appelez-nous	-
30	537095		Clip, Expansion (4)		Appelez-nous	-
31	943187		Shim, Handle				$ 25.14
32	488923		Screw (repair)		Appelez-nous	-
32	WP488920		Screw, 8 X 5/8   (Replaces: 488920)				$ 7.98
33	939301		Door, Utility		Appelez-nous	-
35	935103		End Cap, Center		Appelez-nous	-
36	939365		Trim, Shelf (2)		Appelez-nous	-
38	WP488729		Screw, 8 X 1/2   (Replaces: 488320)			Immediately	$ 8.28
39	WP2212648		Plug, Hole (golden Harvest)   (Replaces: 989893)			Immediately	$ 8.19
39	989196		Plug, Hole (almond)		Appelez-nous	-
39	1100188		Hole Plug (toast)		Appelez-nous	-
39	989892		Plug, Hole (coffee)		Appelez-nous	-
39	WP2212648		Plug, Hole (white)   (Replaces: 844478)			Immediately	$ 8.19
39	1100189		Hole Plug (platinum)		Appelez-nous	-
40	943132		Door Shelf, Cantilever		Appelez-nous	-
40	1100214		Door Shelf, Cantilever (for Platinum Model Only)		Appelez-nous	-
44	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.88
45	935077		Insert, Handle		Appelez-nous	-
48	944036		Bracket, Door Stop		Appelez-nous	-
49	944166		End Cap, Insert Retainer		Appelez-nous	-
50	944167		Shim, End Cap		Appelez-nous	-
51	944163		Top End Cap Handle				$ 53.54
52	935074		Shim, Handle End Cap		Appelez-nous	-
54	945116		Nameplate Assembly		Appelez-nous	-
55	991259		Tape		Appelez-nous	-
56	489022		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
57	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
