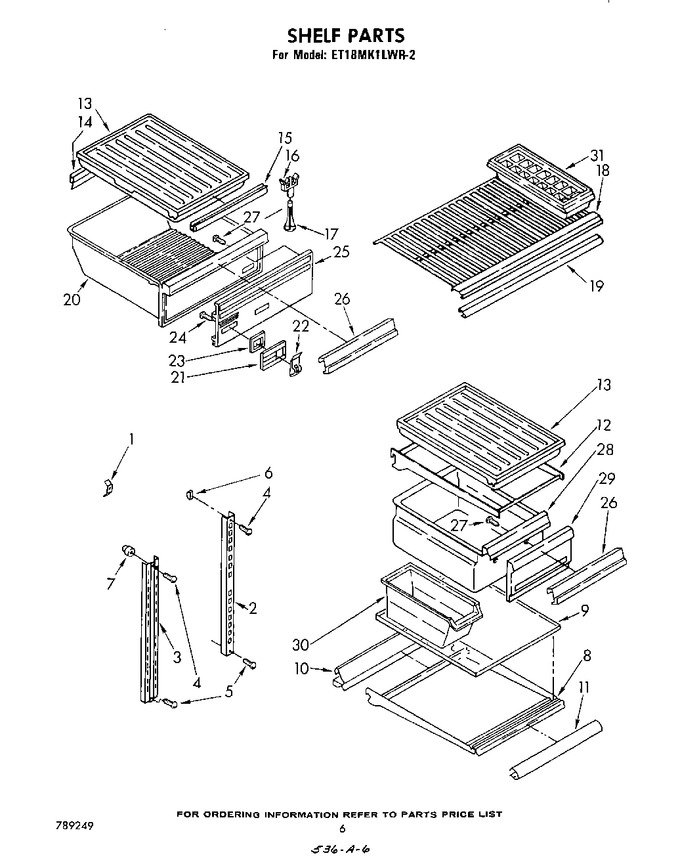

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	983604		Screw Anchor		Appelez-nous	-
2	934267		Shelf, Ladder		Appelez-nous	-
3	936230		Shelf, Ladder Center		Appelez-nous	-
4	488357		Screw, 8 X 1-1/4		Appelez-nous	-
5	488980		Screw (repair)		Appelez-nous	-
5	488960		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	520965		Screw, Support				$ 31.35
7	520959		Screw, Support Center		Appelez-nous	-
8	937332		Shelf, Cantilever		Appelez-nous	-
9	943027		Glass, Shelf		Appelez-nous	-
10	943028		Glass, Reflector		Appelez-nous	-
11	937315		Trim, Shelf		Appelez-nous	-
12	937316		Pan Shelf, Cantilever		Appelez-nous	-
13	943792		Pan Slide & Cover (3)		Appelez-nous	-
14	982157		Crisper Gasket, Rear		Appelez-nous	-
15	937319		Crisper Gasket, Front		Appelez-nous	-
16	848562		Support, Crisper Cover				$ 24.30
17	937340		Post, Crisper Cover		Appelez-nous	-
18	937306		Shelf, Freezer		Appelez-nous	-
19	937309		Trim, Shelf		Appelez-nous	-
20	943030		Pan, Crisper		Appelez-nous	-
21	942234		Housing, Humidity Control		Appelez-nous	-
22	942235		Slide, Humidity Control		Appelez-nous	-
23	942236		Seal, Humidity Control		Appelez-nous	-
24	489041		Screw, 6-19 X 7/16		Appelez-nous	-
25	1100209		Front Cover, Crisper (for Platinum Model Only)		Appelez-nous	-
25	943032		Front Cover, Crisper		Appelez-nous	-
26	939059		Overlay		Appelez-nous	-
27	488132		Screw (repair)		Appelez-nous	-
27	WP488729		Screw, 8 X 1/2   (Replaces: 488783)			Immediately	$ 8.28
28	839922		Meat Pan		Appelez-nous	-
29	939058		Front Cover, Meat		Appelez-nous	-
29	1100211		Front Cover, Meat (for Platinum Model Only)		Appelez-nous	-
30	WP982704		Container Utility   (Replaces: 935139)				$ 32.55
31	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
