SELECT A DIAGRAM

01 - Cabinet Back


02 - Covers, Hinges & Light Covers


03 - Crisper Assy & Freezer Feature Assy

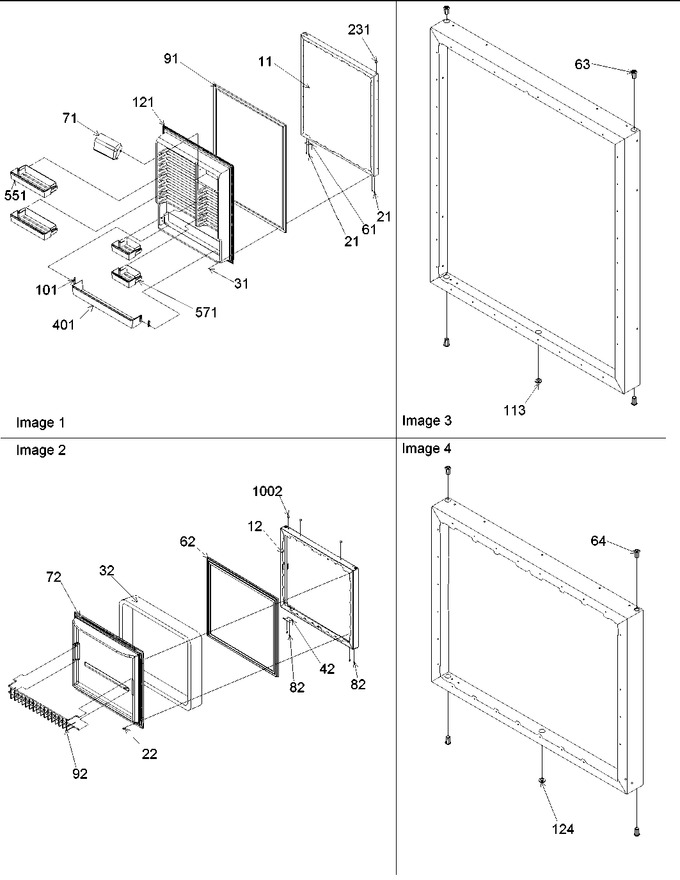

04 - Door Assy


05 - Door Handles & Accessories


06 - Evaporator & Freezer Control Assy


07 - Ice Maker Assy & Parts


08 - Insulation & Roller Assy


09 - Light Switches & Drain Funnel


10 - Machine Compartment


11 - Ref. Feature, & Shelf Assy


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12206801C		Assy,ref Dr Foam(bisque) Btm		Appelez-nous	-
12	12206901C		Assy,fz Dr Foam((bisque)		Appelez-nous	-
21	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
22	M0219730		Screw				$ 7.65
31	M0219730		Screw				$ 7.65
32	876370		Insulation, Batt   (Replaces: B0523561)				$ 243.14
42	67003781		Stop, Door (bsq)   (Replaces: 10447110)				$ 83.12
61	67003781		Stop, Door (bsq)   (Replaces: 10447110)				$ 83.12
62	WP12550122Q		Freezer Door Gasket   (Replaces: 12550122)				$ 304.97
63	10961001		Bushing, Door (wht)		Appelez-nous	-
64	10961001		Bushing, Door (wht)		Appelez-nous	-
71	10423420		Door,dairy		Appelez-nous	-
72	12228801		Liner, Fzr Door		Appelez-nous	-
82	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
91	WP12550121Q		Gasket,ref Dr(white)   (Replaces: 12550121)				$ 337.08
92	12208702		Retainer, Frz Door		Appelez-nous	-
101	10202001		Clip, Retainer		Appelez-nous	-
113	M0310344		Plug, Button (bsq)		Appelez-nous	-
121	12228701		Liner, Ref Door		Appelez-nous	-
124	M0310344		Plug, Button (bsq)		Appelez-nous	-
231	10686407		Plug,button(bisque)		Appelez-nous	-
401	10419107		Retainer, Ref Door				$ 53.34
551	10419707		Shelf, Ref Door		Appelez-nous	-
571	10502911		Bucket, Ref Door (plain)		Appelez-nous	-
1002	12246604		Plug, Handle Hole (bsq)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
