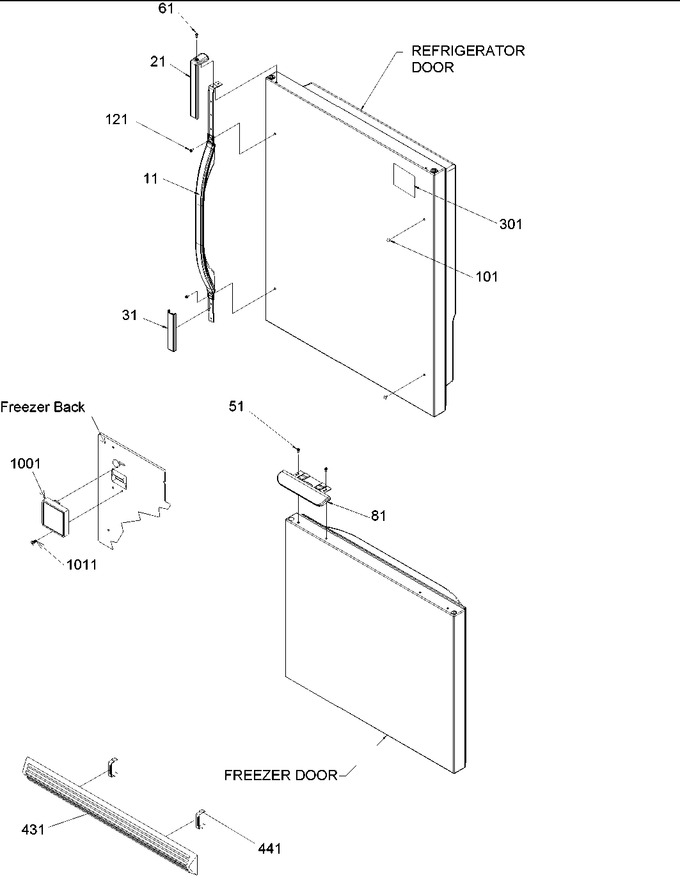

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12443505C		Handle,ref Dr(bisque)		Appelez-nous	-
21	12443304		Trim,upper Hndl(bisque)		Appelez-nous	-
31	12273521		Trim,lwr Handle(bisque)		Appelez-nous	-
51	WPW10348409		Screw, Mounting   (Replaces: M0211533)			Immediately	$ 8.20
61	12248201		Screw, Hndl Cone				$ 5.48
81	WP67005141		Handle, Fz Dr (bsq)   (Replaces: 12610801C)				$ 153.52
101	12246604		Plug, Handle Hole (bsq)		Appelez-nous	-
121	R9800670		Screw, Mounting   (Replaces: M0223230)				$ 10.58
301	Y12528501		Nameplate, Dba   (Replaces: 12536301)			Immediately	$ 62.74
431	10474906		Grille Toe Bisque		Appelez-nous	-
441	10551502		Clip, Toe Grille				$ 5.84
1001	D7874403		Cover-fl Tb/plug		Appelez-nous	-
1011	67006425		Screw, Sm   (Replaces: M0238616)			Immediately	$ 7.30

    View Diagram in Separate Window       Print Part List
