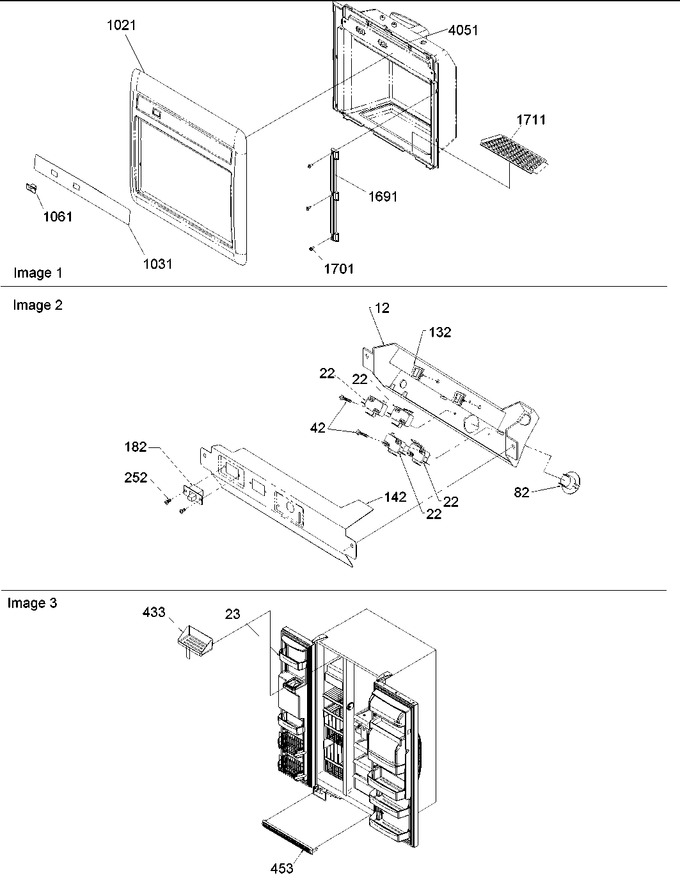

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 12 | 10323308 | Bracket,elec Mntg |
|
- | |||||
| 22 | 12419601 | Switch, Limit |
|
- | |||||
| 23 | 12311807 | Shelf, Fzr Door |
|
- | |||||
| 42 | M0237809 | Screw, T.f. |
|
- | |||||
| 82 | 10131702 | Socket, Light |
|
- | |||||
| 132 | B5667304 | Wire Clip |
|
- | |||||
| 142 | 10131810 | Cover, Elec Brkt |
|
- | |||||
| 182 | 10166002 | Switch-crushed/cube |
|
- | |||||
| 252 | W11084238 | Screw (Replaces: M0234001) |
|
- | |||||
| 433 | 10870802 | Shelf, Ice Cream |
|
- | |||||
| 453 | 12321807Q | Assy, Toe Grille (white) |
|
$ 136.91 | |||||
| 1021 | 12501903W | Facade,dispenser(white) |
|
- | |||||
| 1031 | 12508204W | Insert, Facade (white) |
|
- | |||||
| 1061 | 12502102W | Cap, Switch(white) |
|
- | |||||
| 1691 | 12335602 | Extension, Cavity |
|
- | |||||
| 1701 | M0216517 | Screw |
|
- | |||||
| 1711 | 12524801W | Grille,sump(white) |
|
- | |||||
| 4051 | A3189379 | Gasket, Foam |
|
- |
