SELECT A DIAGRAM

01 - Cabinet Back


02 - Cabinet Parts


03 - Deli, Shelves & Crisper Assy


04 - Drain, Rollers & Evap Assy


05 - Façade Dispenser Cover, & Elec Brkt Assy


06 - Freezer Door


07 - Freezer Shelves & Lights


08 - Ice Bucket Auger & Ice Maker Parts


09 - Ice Maker/control Assy


10 - Lights, Hinges & Shelving


11 - Machine Compartment


12 - Refrigerator Door, Trim & Handles


13 - Water Filter Assy

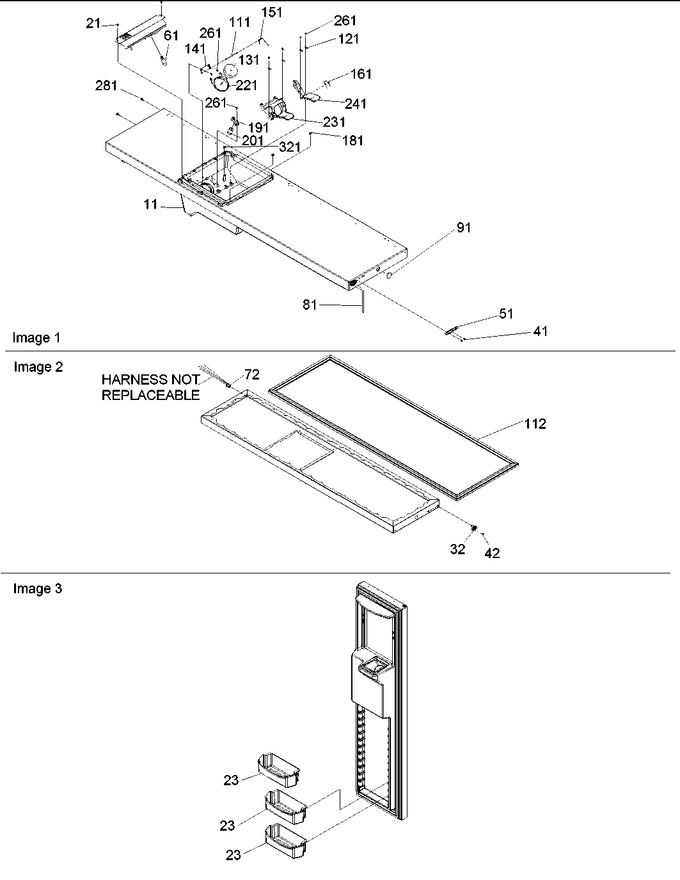

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	12309909WQ		Assy,frz Dr Foam(white) Sxs		Appelez-nous	-
21	M0216705		Screw				$ 5.81
23	12311909		Bucket,fz Door		Appelez-nous	-
32	R0181181		Closure-w Door   (Replaces: 12113201)			Immediately	$ 7.55
41	WP98165		Screw, Sm   (Replaces: M0211018)				$ 8.57
42	WP8281227		Screw, Tc   (Replaces: M0220432)				$ 10.96
51	C8972409		Stop, Door (wht)		Appelez-nous	-
61	W10857122		Light Bulb   (Replaces: M0360001)				$ 14.52
72	WP67004977		Bushing, Top   (Replaces: C8964401)				$ 8.20
81	WPB5705307		Tubing, Plastic   (Replaces: B5705326)				$ 13.05
91	A3080001		Plug, Button (blk)		Appelez-nous	-
111	A1061501		Pin, Chute Door		Appelez-nous	-
112	R9800047		Assy,fz Dr Gasket(white)		Appelez-nous	-
121	A1061601		Retainer, Ice Arm		Appelez-nous	-
131	B8380701		Insulation, Chute Door		Appelez-nous	-
141	B8380802		Brkt-chute Door		Appelez-nous	-
151	B8380901		Spring,chute Door				$ 7.18
161	B8385401		Spring, Return		Appelez-nous	-
181	W10819546		Clip, Facade   (Replaces: B8390302)				$ 13.14
191	C8972501		Retainer Door Delay		Appelez-nous	-
201	C8973602		Delay, Door				$ 49.84
221	10246601		Kit,chute Dr No.3		Appelez-nous	-
231	12102101		Ice Act. Arm		Appelez-nous	-
241	10872107		Arm, Water Actuator		Appelez-nous	-
261	M0211116		Screw, Sm		Appelez-nous	-
281	M0311605		Plug, Button (wht)		Appelez-nous	-
321	12454803		Clip, Waterline		Appelez-nous	-
NI	R0156692		Kit,chute Dr No.3		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
