Diagram # Part Number Description Series Availability Ships Price Add to Cart
12 12596002B Facade(black) Appelez-nous -
22 67006425 Screw, Sm   (Replaces: M0238642) In-Stock Immediately $ 6.95

32 12665201B Insert,facade(black)-dba Appelez-nous -
42 12598902B Actr Pad Frame Assy. (blk) Special Order $ 35.81

81 12596102B Tray,sump(black) Appelez-nous -
91 12596201B Grille,sump(black) Appelez-nous -
102 12550401 Board,control Appelez-nous -
112 2006254 Screw,hi/lo   (Replaces: M0237902) Special Order $ 13.13

132 WP12575501 Switch, Limit   (Replaces: 12575501) Special Order $ 68.90

NI WPM0104106 Clip   (Replaces: M0104106) Special Order $ 7.78


    View Diagram in Separate Window     Print Icon   Print Part List

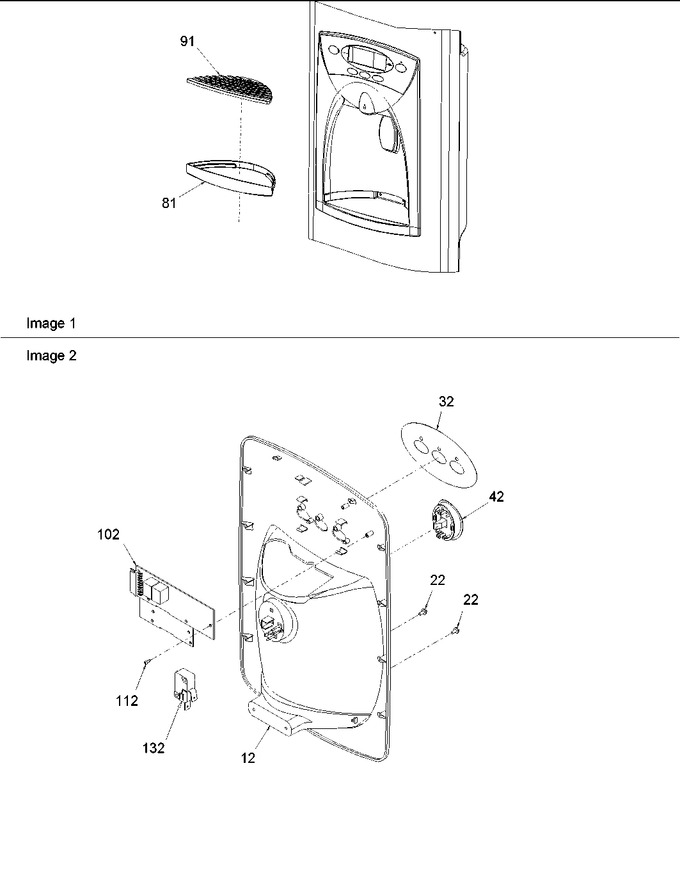

Diagram for DRS2462BB (BOM: PDRS2462BB0)
