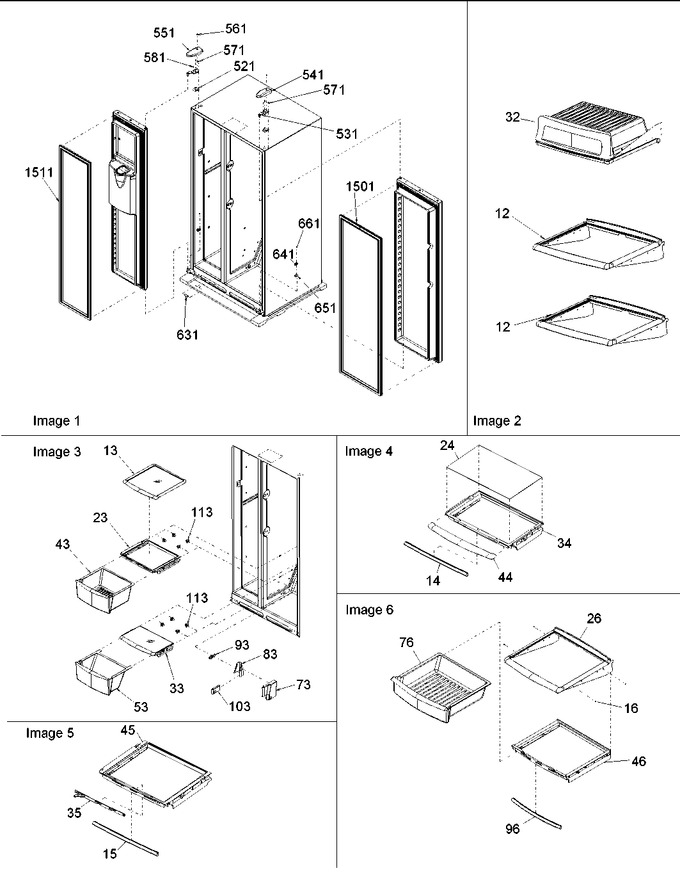

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	12457405		Shelf,sta-dba(24)		Appelez-nous	-
13	12559702		Shelf,top Crisper-dba		Appelez-nous	-
14	12589104		Seal, Sm Crisper Front		Appelez-nous	-
15	12589104		Seal, Sm Crisper Front		Appelez-nous	-
23	12585703Q		Assy,lg Crisper-dba		Appelez-nous	-
24	12204811		Glass, Shelf		Appelez-nous	-
33	12585803Q		Assy,deli Frame		Appelez-nous	-
34	12663501		Frame, Deli		Appelez-nous	-
35	12562601OR		Slide,lg Crisper(orange)-dba		Appelez-nous	-
43	WP67001503		Pan, Lg Crisper   (Replaces: 12559504)				$ 147.75
44	12562401		Trim,deli Front-dba		Appelez-nous	-
45	WP67002723		Frame, Lg Crisper   (Replaces: 12663601)				$ 166.40
53	WP67001504		Pan, Deli   (Replaces: 12559404)				$ 147.46
73	12586002		Housing,deli Control-dba		Appelez-nous	-
83	12586101		Slide, Deli Control		Appelez-nous	-
93	12586201OR		Control,deli(orange)-dba		Appelez-nous	-
103	12664201		Tunnel, Deli Control		Appelez-nous	-
113	WP12603701		Support, Crisper Frame   (Replaces: 12603701)				$ 10.31
521	12579702		Shim, Top Hinge		Appelez-nous	-
531	WP12566607ED		Hinge, Top (blk)   (Replaces: 12566603ED)				$ 86.75
541	12571101B		Cover,lh Top Hinge(black)		Appelez-nous	-
551	12571102B		Cover,rh Top Hinge(black)		Appelez-nous	-
561	WP8281196		Screw, Mach   (Replaces: M0202336)			Immediately	$ 7.19
571	R9800670		Screw, Tf   (Replaces: M0238731)				$ 9.38
581	W11214483		Screw, Mach   (Replaces: M0202321)				$ 14.02
631	WP2300868		Tube, Union   (Replaces: B5706903)			Immediately	$ 29.05
641	R0181181		Closure, Door (blk)   (Replaces: 12431302)			Immediately	$ 7.19
651	WP67005716		Shim, Dr Closure (blk)   (Replaces: 10361806)				$ 7.46
661	W11227370		Screw, Tc   (Replaces: M0220431)			Immediately	$ 14.20
1501	W10840101		Gasket, Ref Dr (blk)   (Replaces: 12591501B)				$ 311.67
1511	W10133491		Gasket, Fz Dr (blk)   (Replaces: 12591502B)				$ 342.75
