Diagram # Part Number Description Series Availability Ships Price Add to Cart
11 M0213129 Screw Appelez-nous -
12 10968801 Seal-crisp Front Appelez-nous -
21 10809618 Shelf,full Stationary Appelez-nous -
22 10882701 Band, Crisper Appelez-nous -
32 10852501 Slide, Crisper/deli Appelez-nous -
43 Y10370066 Glass, Shelf Appelez-nous -
62 10782901 Frame,crisper Appelez-nous -
63 10782901 Frame,crisper Appelez-nous -
73 12113011 Trim,lwr Crispr Frnt Appelez-nous -
81 10783803 Frame, Deli Appelez-nous -
131 10784201 Pan, Deli Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

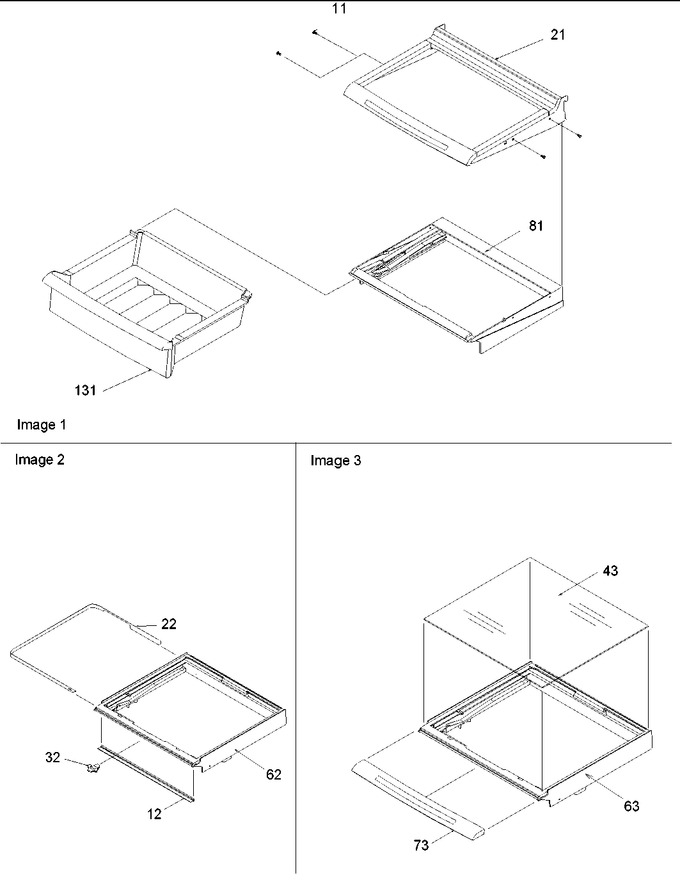

Diagram for DRS2662AC (BOM: PDRS2662AC0)
