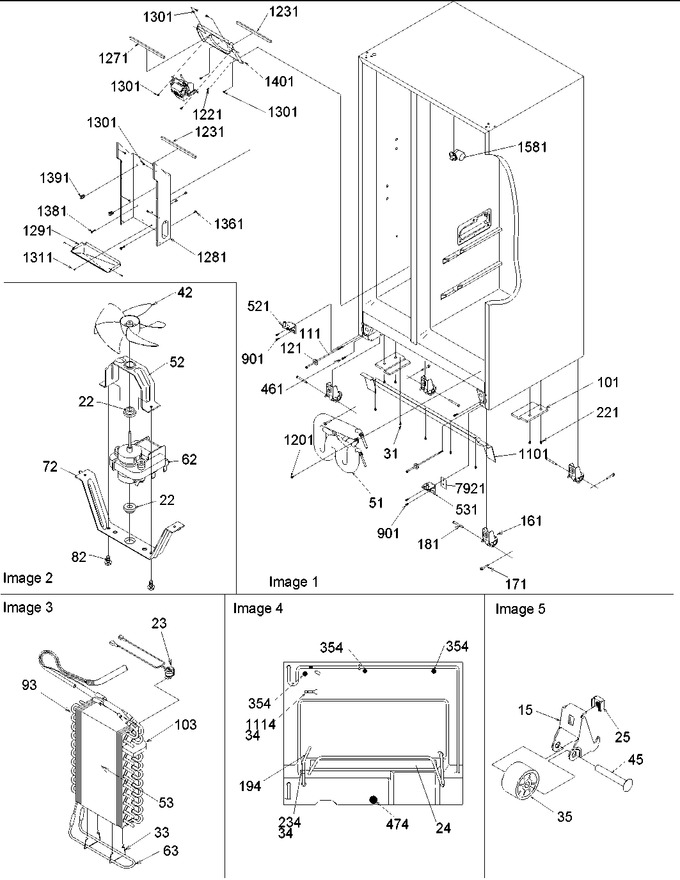

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 15 | C8742402 | Assy, Roller Bracket |
|
- | |||||
| 22 | WP2264462 | Grommet (Replaces: A1017202) |
|
Immediately | $ 43.97 | ||||
| 23 | 12017823 | Thermostat, Defrost |
|
- | |||||
| 24 | 10906502 | Insulation, O.c.bottom |
|
- | |||||
| 25 | M0286708 | Nut, Speed |
|
$ 45.57 | |||||
| 31 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 7.86 | ||||
| 33 | W11673433 | Clip, Evap Heater (Replaces: 10428101) |
|
$ 141.12 | |||||
| 34 | WP489069 | Screw (Replaces: M0220617) |
|
Immediately | $ 7.86 | ||||
| 35 | WP10450603 | Roller (Replaces: 10450602) |
|
$ 7.88 | |||||
| 42 | WP2169142 | Fan, Evaporator (Replaces: 12217201) |
|
Immediately | $ 43.41 | ||||
| 45 | M1205302 | Rivet |
|
$ 5.85 | |||||
| 51 | 10988502 | Tank-water |
|
- | |||||
| 52 | 10492801 | Brkt, Up Evap. Fan |
|
$ 5.27 | |||||
| 53 | R0170055 | Assy,low Side(sxs 22) |
|
$ 322.79 | |||||
| 62 | WPW10189703 | Motor Evap Fan (Replaces: 10449505) |
|
Immediately | $ 70.17 | ||||
| 63 | WP12049801 | Heater, Evap (Replaces: 12049801) |
|
$ 142.38 | |||||
| 72 | 10492701 | Brkt, Lwr. Evap. Fan |
|
$ 5.27 | |||||
| 82 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 7.82 | ||||
| 93 | 10629601 | Block, Air Coil (left) |
|
- | |||||
| 101 | 10508001 | Support, Mach Comp. |
|
- | |||||
| 103 | 10629001 | Block, Air Coil (right) |
|
- | |||||
| 111 | 10093311 | Screw Adjust |
|
- | |||||
| 121 | M0274067 | Washer, Nylon |
|
- | |||||
| 161 | 12452602Q | Assy, Roller Bracket |
|
- | |||||
| 171 | M1200004 | Cotter Pin K |
|
- | |||||
| 181 | M1200202 | Pin K |
|
- | |||||
| 194 | 10505101 | Tube, Drain |
|
- | |||||
| 221 | WP3400094 | Screw (Replaces: M0253942) |
|
$ 7.93 | |||||
| 234 | M0102303 | Clamp |
|
- | |||||
| 354 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 461 | M0204339 | Screw Bolt K |
|
- | |||||
| 474 | A3076901 | Plug-button |
|
$ 5.70 | |||||
| 521 | 12431707 | Hinge, Btm L E-ct |
|
- | |||||
| 531 | 12431709 | Hinge, Btm R E-ct |
|
- | |||||
| 901 | WP67006715 | Screw, Sm (Replaces: M0241408) |
|
$ 7.19 | |||||
| 1101 | 10508107 | Baffle, M.c. Air |
|
- | |||||
| 1114 | M0585206 | Clip, Wire |
|
- | |||||
| 1201 | WP98165 | Screw, Sm (Replaces: M0211018) |
|
$ 8.00 | |||||
| 1221 | WP489399 | Screw (Replaces: M0232903) |
|
$ 6.95 | |||||
| 1231 | B8386608 | Gasket |
|
- | |||||
| 1271 | B8386607 | Gasket (1=1ft.) |
|
- | |||||
| 1281 | 10893803 | Shield, Evap |
|
- | |||||
| 1291 | D7850202 | Drip Tray Pnt. |
|
- | |||||
| 1301 | WP90767 | Screw, Sm (Replaces: M0224416) |
|
Immediately | $ 7.82 | ||||
| 1311 | 10098801 | Rivet |
|
- | |||||
| 1361 | M0580002 | Grommet A |
|
- | |||||
| 1381 | 10527401 | Clip, Evap |
|
- | |||||
| 1391 | 10623003 | Clip, Evaporator |
|
- | |||||
| 1401 | 10890206 | Shroud,evap Fan-e Ct |
|
- | |||||
| 1581 | D7714408 | Socket, Light |
|
$ 68.10 | |||||
| 7921 | 12146702 | Shim-bot Hinge |
|
- |
