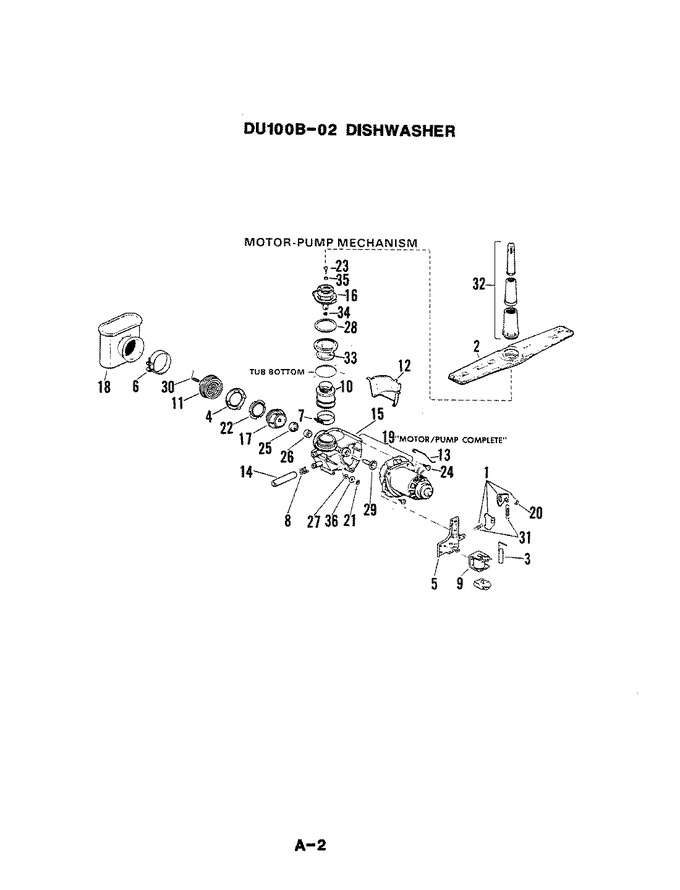

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2610-0005		Armgate Valve		Appelez-nous	-
2	2020-0005		Spray Arm		Appelez-nous	-
3	2025-0001		Link & Armature		Appelez-nous	-
4	2085-0001		Base, Wear Ring		Appelez-nous	-
5	2145-0052		Bracket, Switch		Appelez-nous	-
5	2145-0001		Bracket, Solenoid		Appelez-nous	-
6	WP696392		Clamp   (Replaces: 2235-0008)				$ 8.17
7	WP696392		Clamp   (Replaces: 2235-0007)				$ 8.17
8	2235-0004		Clamp, Fill Hose		Appelez-nous	-
9	2250-0001		Solenoid, Drain Coil		Appelez-nous	-
10	2260-0007		Connector, Pump		Appelez-nous	-
11	2465-0002		Grader/nut		Appelez-nous	-
12	2485-0003		Guard		Appelez-nous	-
12	2485-0001		Guard		Appelez-nous	-
13	2510-0002		Hanger		Appelez-nous	-
14	2530-0001		Hose, Drain		Appelez-nous	-
15	WG04F00655		Housing Pump Assembly   (Replaces: 2535-0001)			Immediately	$ 246.46
16	2540-0002		Hub, Spray Arm		Appelez-nous	-
17	2560-0003		Pump Impeller		Appelez-nous	-
18	2590-0001		Insulator		Appelez-nous	-
18	2275-0004		Cover, Timer		Appelez-nous	-
19	WG04F00655		Pump Assy.   (Replaces: 2720-0001)			Immediately	$ 246.46
20	2940-0001		Retainer		Appelez-nous	-
21	2945-0006		E Ring		Appelez-nous	-
22	2945-0001		Wear Ring		Appelez-nous	-
23	3005-0004		Screw		Appelez-nous	-
24	3005-0002		Screw		Appelez-nous	-
25	3010-0004		Seal, Shaft		Appelez-nous	-
26	3010-0003		Seal, Seat		Appelez-nous	-
27	3010-0002		Seal, Shaft		Appelez-nous	-
28	3010-0005		Seal, Split Ring		Appelez-nous	-
29	3050-0001		Shaft Guard, Slinger		Appelez-nous	-
30	3070-0001		Spring, Cutter		Appelez-nous	-
31	3070-0002		Spring, Gate Valve		Appelez-nous	-
31	3135-0005		Switch, Float		Appelez-nous	-
32	3175-0002		Nozzle, Assembly		Appelez-nous	-
33	3255-0001		Valve, Check		Appelez-nous	-
34	3280-0003		Washer		Appelez-nous	-
35	3280-0002		Washer		Appelez-nous	-
36	3280-0024		Washer		Appelez-nous	-
