SELECT A DIAGRAM

01 - Control Panel


02 - Door


03 - Pump Assembly


04 - Tub Assembly

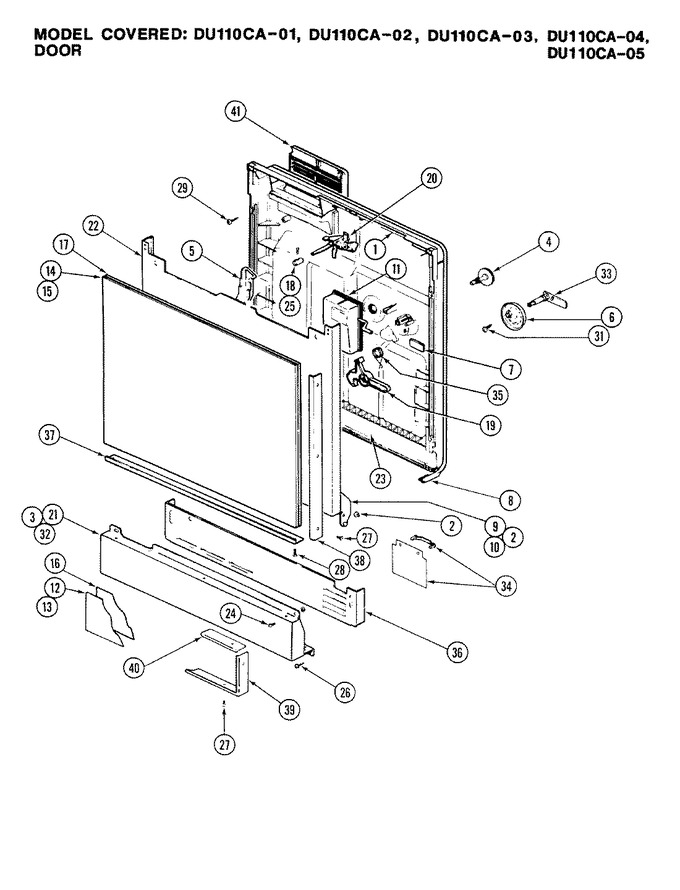

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2075-0001		Bar, Door		Appelez-nous	-
2	2095-0002		Bearing, Hinge Arm		Appelez-nous	-
3	2145-0058		Bracket, Mtg.		Appelez-nous	-
4	2205-0008		Cap, Fill		Appelez-nous	-
5	2255-0001		Conduit		Appelez-nous	-
6	2275-0005		Cover, Detergent Cup				$ 43.29
7	2307-0001		Deflector		Appelez-nous	-
8	2450-0025		Gasket		Appelez-nous	-
9	2520-0016		Hinge, Arm L.h.		Appelez-nous	-
10	2520-0017		Hinge, Arm R.h.		Appelez-nous	-
11	2570-0001		Injector, Rinse		Appelez-nous	-
12	2580-0035		Insert, Panel (alm/wht)		Appelez-nous	-
13	2580-0036		Insert, Panel (blk/harv)		Appelez-nous	-
14	2580-0004		Insert,almond/white		Appelez-nous	-
15	2580-0005		Insert, Black/hvst		Appelez-nous	-
16	2590-0012		Insulator		Appelez-nous	-
17	2590-0010		Insulator		Appelez-nous	-
18	2615-0002		Knob,latch Handle		Appelez-nous	-
19	2645-0004		Latch, Detergent Cup		Appelez-nous	-
20	2645-0003		Latch Assembly		Appelez-nous	-
21	2800-0022		Lower Access Panel		Appelez-nous	-
22	2800-0024		Panel, Assy. Weld		Appelez-nous	-
23	2800-0004		Panel, Inner Door		Appelez-nous	-
24	3005-0025		Screw		Appelez-nous	-
25	3005-0029		Screw		Appelez-nous	-
26	61002031		Screw   (Replaces: 3005-0033)				$ 43.43
27	3005-0031		Screw		Appelez-nous	-
28	3005-0014		Screw		Appelez-nous	-
29	3005-0028		Screw		Appelez-nous	-
30	WP3351614		Screw, 8-32 X 5/8   (Replaces: 3005-0136)			Immediately	$ 6.57
31	3005-0074		Screw		Appelez-nous	-
32	WP489483		Screw   (Replaces: 3005-0076)				$ 10.27
33	3020-0008		Shaft & Handle		Appelez-nous	-
34	3030-0001		Shield,drip		Appelez-nous	-
35	3070-0005		Spring, Detergent Cup		Appelez-nous	-
36	2605-0003		Toe Kick, Assy.		Appelez-nous	-
37	3230-0087		Trim, Door Bottom		Appelez-nous	-
38	3230-0086		Trim, Door Side		Appelez-nous	-
39	3230-0089		Trim,bottom, & Sides		Appelez-nous	-
40	3230-0088		Trim, Top Acces Panel		Appelez-nous	-
41	3265-0002		Vent Assy.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
