SELECT A DIAGRAM

01 - Control Panel


02 - Door


03 - Pump Assembly

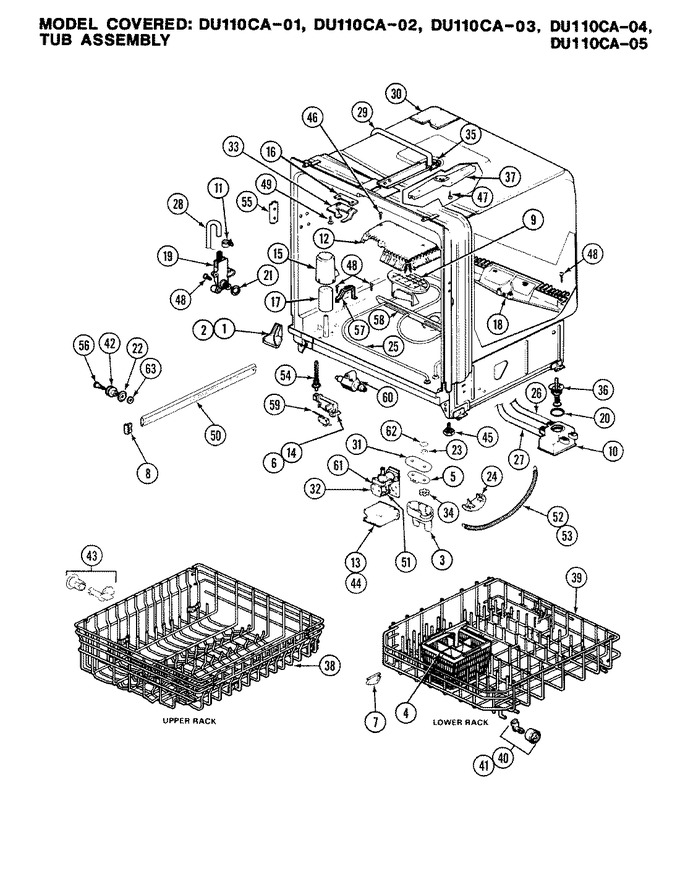

04 - Tub Assembly


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2045-0006		Baffle, Tub (lt)		Appelez-nous	-
2	2045-0005		Baffle, Tub (rt)		Appelez-nous	-
3	2080-0002		Barrier, Element		Appelez-nous	-
4	2090-0001		Basket, Silverware		Appelez-nous	-
5	2145-0025		Barrier, Bracket		Appelez-nous	-
6	2145-0026		Bracket, Switch		Appelez-nous	-
7	2155-0002		Bumper		Appelez-nous	-
8	2355-0002		End Cap, Rack Slide		Appelez-nous	-
9	2205-0003		Cap, Sump		Appelez-nous	-
10	2231-0001		Chamber, Collection		Appelez-nous	-
11	2235-0004		Clamp, Fill Hose		Appelez-nous	-
12	2275-0008		Cover, Sump Inlet		Appelez-nous	-
13	2275-0002		Cover, Junction Box		Appelez-nous	-
14	2275-0020		Cover		Appelez-nous	-
15	2275-0009		Float, Dome		Appelez-nous	-
16	2385-0001		Keep, Fastener		Appelez-nous	-
17	2410-0002		Float, Flood		Appelez-nous	-
18	2425-0011		Frame, Filter Assy.		Appelez-nous	-
19	2575-0003		Inlet, Water		Appelez-nous	-
20	2450-0014		Gasket		Appelez-nous	-
21	2450-0006		Gasket, Inlet		Appelez-nous	-
22	2450-0015		Gasket, Tub Roller		Appelez-nous	-
23	2480-0003		Grommet		Appelez-nous	-
25	2350-0002		Element, Heater		Appelez-nous	-
26	2530-0011		Hose, Check Valve		Appelez-nous	-
27	2530-0010		Hose, Chamber To Pump		Appelez-nous	-
28	03000030		Hose Fill		Appelez-nous	-
29	2530-0012		Hose, Power Shower		Appelez-nous	-
30	2585-0001		Insulation		Appelez-nous	-
31	2590-0005		Insulator		Appelez-nous	-
32	2590-0004		Insulator		Appelez-nous	-
33	2645-0016		Keeper Latch		Appelez-nous	-
34	2735-0009		Nut		Appelez-nous	-
35	WW03F00159		Nut-strip   (Replaces: 3120-0002)			Immediately	$ 170.53
36	2735-0033		Piston & Nut Assembly		Appelez-nous	-
37	2020-0003		Arm, Spray		Appelez-nous	-
38	2905-0008		Rack Assy. (upr)		Appelez-nous	-
39	2905-0009		Rack & Roller Assy. (lwr)		Appelez-nous	-
40	2955-0007		Roller Assembly,lower Front				$ 27.81
41	2955-0008		Roller Assy. (rear Lower)		Appelez-nous	-
42	2165-0007		Roller & Bushing Assy		Appelez-nous	-
43	3125-0006		Roller & Stud Assy		Appelez-nous	-
44	3005-0007		Screw,no.10-16x1/2		Appelez-nous	-
45	3005-0135		Screw, Leg Leveling		Appelez-nous	-
46	3005-0034		Screw		Appelez-nous	-
47	3005-0030		Screw		Appelez-nous	-
48	3005-0027		Screw		Appelez-nous	-
49	3005-0134		Screw		Appelez-nous	-
50	3045-0002		Slide, Rack		Appelez-nous	-
51	2250-0002		Solenoid, Assembly		Appelez-nous	-
53	3070-0044		Spring, Door Red		Appelez-nous	-
54	3085-0001		Stem, Float		Appelez-nous	-
55	2735-0034		Nut, Strip		Appelez-nous	-
56	3125-0005		Stud, Tub Roller		Appelez-nous	-
57	3130-0003		Support Heater Front)		Appelez-nous	-
58	3130-0004		Support Heater (rear)		Appelez-nous	-
59	3135-0005		Switch, Float		Appelez-nous	-
60	3255-0008		Valve Check Assembly		Appelez-nous	-
61	WD15X93		Valve, Water   (Replaces: 3255-0009)				$ 64.56
62	3280-0009		Washer		Appelez-nous	-
63	3280-0003		Washer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
