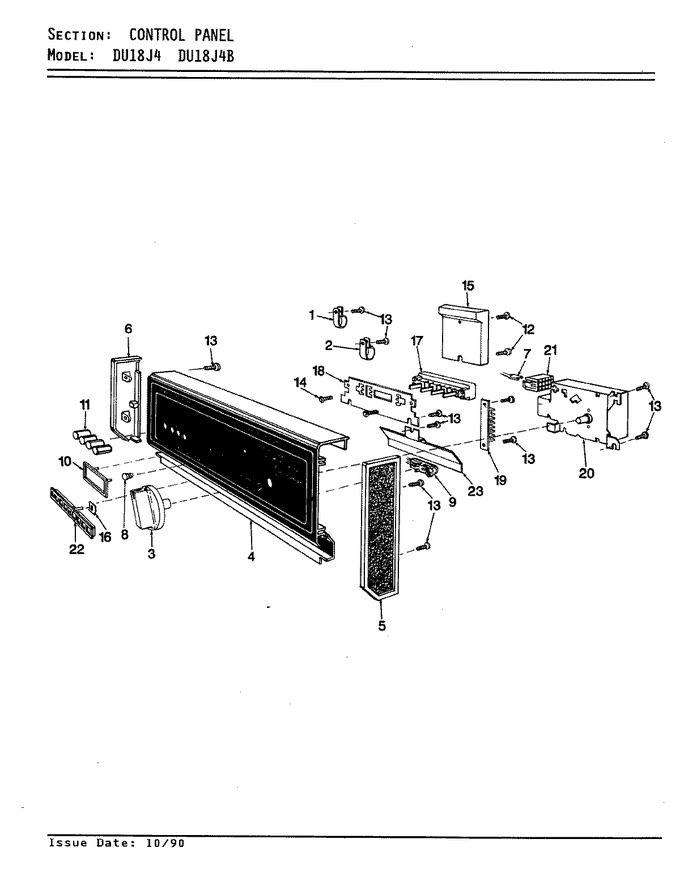

01 - Control Panel (du18j4/du18j4b)


02 - Detergent Cup (du18j4/du18j4b)


03 - Door (du18j4/du18j4b)


04 - Frame (du18j4/du18j4b)


05 - Motor, Heater, & Spray Arm (du18j4b)


06 - Rack (du18j4/du18j4b)


07 - Tub (du18j4/du18j4b)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10833902		Clamp   (Replaces: 805584)				$ 10.39
2	808442		Wire Clamp		Appelez-nous	-
3	809495		Control Knob		Appelez-nous	-
4	809702		Control Panel		Appelez-nous	-
5	808693		Rh Endcap		Appelez-nous	-
6	808694		Lh Endcap		Appelez-nous	-
7	03100005		Terminal		Appelez-nous	-
8	809036		Lens		Appelez-nous	-
9	809317		Light Assembly		Appelez-nous	-
10	809701		Nameplate		Appelez-nous	-
10	809668		Nameplate		Appelez-nous	-
10	809669		Nameplate		Appelez-nous	-
10	809700		Nameplate		Appelez-nous	-
11	809636		Baffle		Appelez-nous	-
12	806894		Screw		Appelez-nous	-
13	809175		Screw		Appelez-nous	-
14	807141		Screw		Appelez-nous	-
15	807425		Splash Pan		Appelez-nous	-
16	808475		Speednut		Appelez-nous	-
17	809328		Pb Switch		Appelez-nous	-
18	806594		Switch Bracket		Appelez-nous	-
19	808483		Terminal Board		Appelez-nous	-
20	809771		Timer		Appelez-nous	-
21	809883		Connector Block		Appelez-nous	-
22	808477		Vent Trim		Appelez-nous	-
23	808574		Shield		Appelez-nous	-
