01 - Control Panel (du18j4/du18j4b)


02 - Detergent Cup (du18j4/du18j4b)


03 - Door (du18j4/du18j4b)


04 - Frame (du18j4/du18j4b)


05 - Motor, Heater, & Spray Arm (du18j4b)


06 - Rack (du18j4/du18j4b)


07 - Tub (du18j4/du18j4b)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809543		Angle, Base		Appelez-nous	-
2	807566		Rear Brace		Appelez-nous	-
3	807019		Bracket		Appelez-nous	-
4	807849		Bracket		Appelez-nous	-
5	808670		Support Channel		Appelez-nous	-
6	808442		Wire Clamp		Appelez-nous	-
7	806723		Clamp		Appelez-nous	-
8	808395		Cord Kit		Appelez-nous	-
9	800222		Terminal Cover		Appelez-nous	-
10	809212		Hinge Asm		Appelez-nous	-
11	809422		Leveler		Appelez-nous	-
12	M0282005		Nut   (Replaces: 804619)				$ 7.42
13	805255		Relay		Appelez-nous	-
14	807001		Screw		Appelez-nous	-
15	807950		Screw		Appelez-nous	-
16	807501		Screw		Appelez-nous	-
17	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.43
18	804672		Screw		Appelez-nous	-
19	WP488234		Screw   (Replaces: 806593)				$ 6.37
20	808885		Side Panel		Appelez-nous	-
21	COMM PART		Terminal Block   (Replaces: 807486)		Appelez-nous	-
22	807213		Ground Terminal		Appelez-nous	-
23	807559		Toe Plate		Appelez-nous	-
24	809241		Wtr Inlet Valve		Appelez-nous	-
25	809144		Wire Shield		Appelez-nous	-

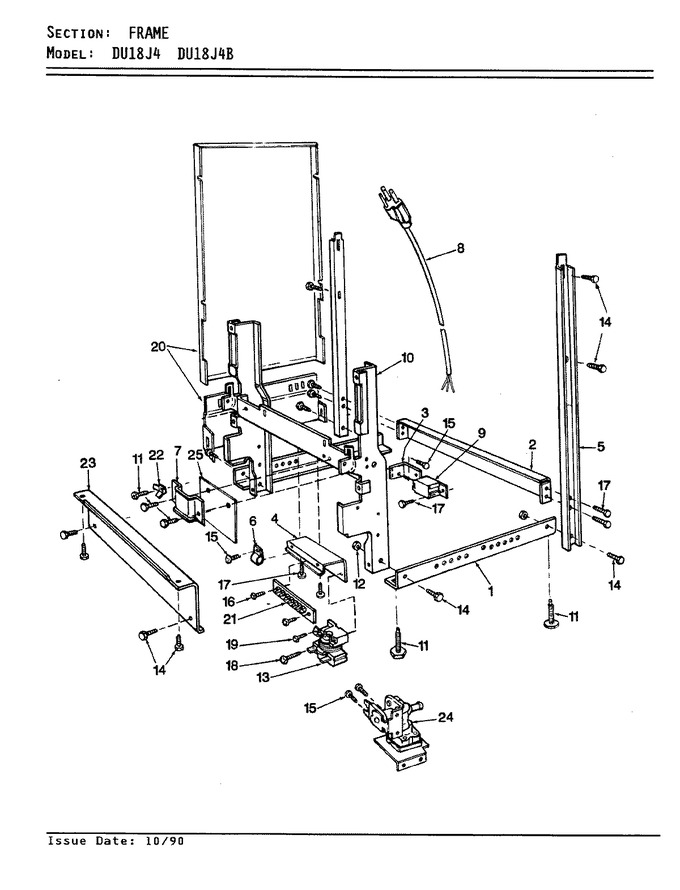

    View Diagram in Separate Window       Print Part List
