01 - Control Panel
02 - Detergent Cup
03 - Door
04 - Frame
05 - Motor & Spray Arm
06 - Rack
07 - Tub
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

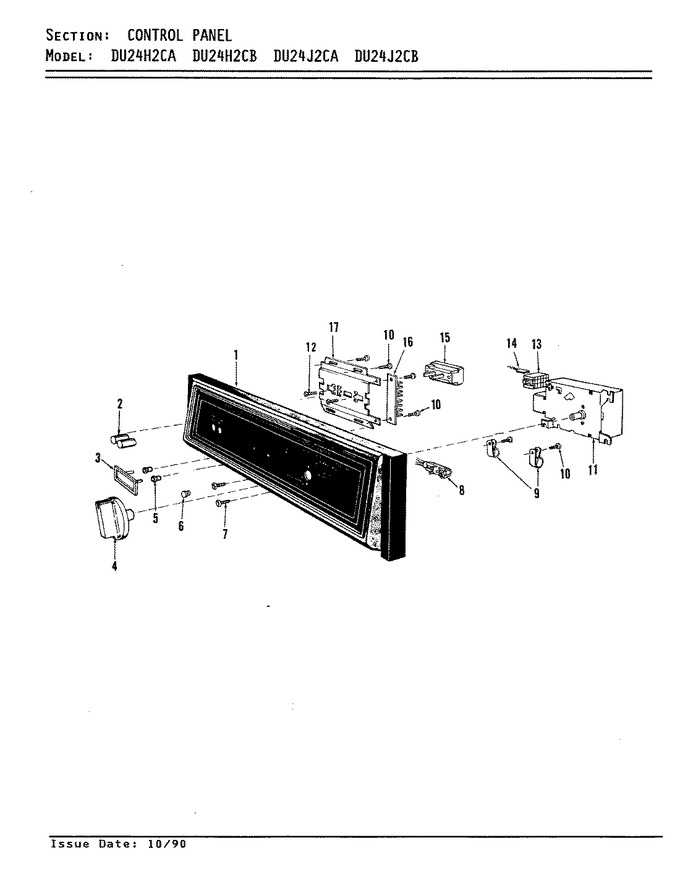

| 1 | 809337 | Console Panel |
|
- | |||||
| 2 | 809323 | Pushbutton |
|
- | |||||
| 3 | 809324 | Nameplate |
|
- | |||||
| 3 | 809326 | Nameplate |
|
- | |||||
| 3 | 809325 | Nameplate |
|
- | |||||
| 4 | 809485 | Selector Knob |
|
- | |||||
| 5 | 809335 | Grommet |
|
- | |||||
| 6 | 809036 | Lens |
|
- | |||||
| 7 | 805324 | Screw |
|
- | |||||
| 8 | 809317 | Light Assembly |
|
- | |||||
| 9 | 808442 | Wire Clamp |
|
- | |||||
| 10 | 809175 | Screw |
|
- | |||||
| 11 | 809441 | Timer |
|
- | |||||
| 12 | 807141 | Screw |
|
- | |||||
| 13 | 809296 | Terminal Housing |
|
- | |||||
| 14 | 808333 | Terminal |
|
- | |||||
| 15 | 807281 | Switch |
|
- | |||||
| 16 | 808483 | Terminal Board |
|
- | |||||
| 17 | 809314 | Bracket |
|
- |
