SELECT A DIAGRAM

01 - Control Panel


02 - Detergent Cup


03 - Door


04 - Frame


05 - Motor & Spray Arm


06 - Rack


07 - Tub

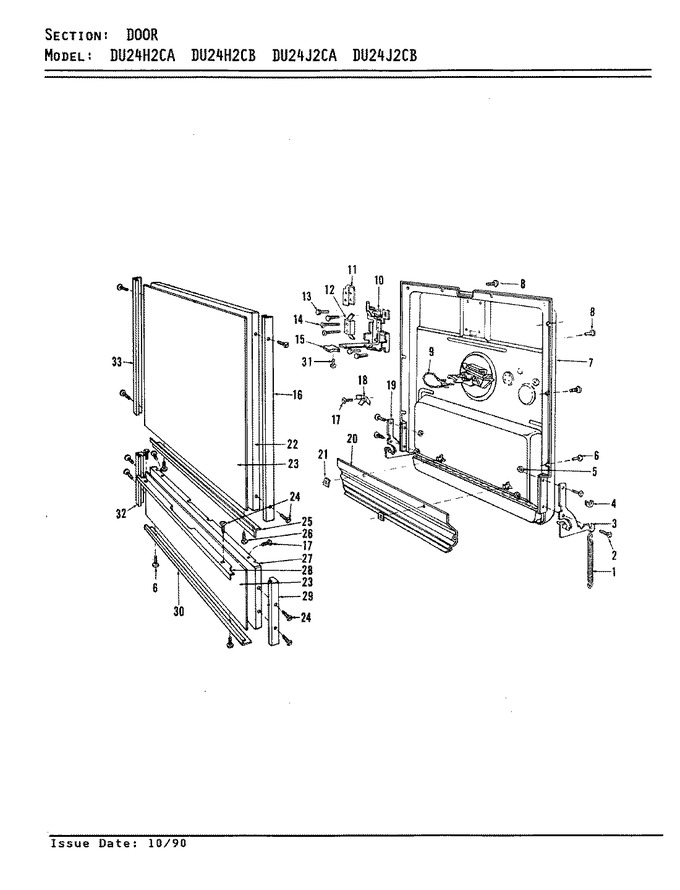

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	809360		Door Spring		Appelez-nous	-
2	803311		Screw		Appelez-nous	-
3	805681		Rh Arm		Appelez-nous	-
4	805884		Spring Pad		Appelez-nous	-
5	M0282009		Locknut   (Replaces: 808470)				$ 12.66
6	WP7101P126-60		Screw   (Replaces: 809055)			Immediately	$ 7.52
7	809052		Door Assembly		Appelez-nous	-
8	808749		Screw		Appelez-nous	-
9	809075		Wire Tie		Appelez-nous	-
10	807016		Latch Asm		Appelez-nous	-
11	807450		Switch Cover		Appelez-nous	-
12	807043		Switch		Appelez-nous	-
13	809029		Screw		Appelez-nous	-
14	808618		Screw		Appelez-nous	-
15	806398		Latch Knob		Appelez-nous	-
16	808976		Door Trim		Appelez-nous	-
17	WP90767		Screw   (Replaces: 808658)			Immediately	$ 7.43
18	807213		Ground Terminal		Appelez-nous	-
19	805682		Lh Arm		Appelez-nous	-
20	809025		Baffle Seal		Appelez-nous	-
21	809026		Speednut		Appelez-nous	-
22	807262		Outer Panel		Appelez-nous	-
23	808914		Acc Pnl Insert		Appelez-nous	-
23	808908		Panel Kit, Door & Access		Appelez-nous	-
24	WP74004005		Screw   (Replaces: 807293)				$ 7.79
25	COMM PART		Door Trim   (Replaces: 807347)		Appelez-nous	-
26	809163		Screw		Appelez-nous	-
27	809108		Access Panel		Appelez-nous	-
28	808346		Acc Pnl Trim		Appelez-nous	-
29	808028		Rh Trim		Appelez-nous	-
30	808027		Bottom Trim		Appelez-nous	-
31	W11233072		Screw   (Replaces: 803416)			Immediately	$ 13.25
32	808029		Lh Trim		Appelez-nous	-
33	808926		Black Door Kit		Appelez-nous	-
33	809343		Manual, Use & Care		Appelez-nous	-
33	808977		Door Trim		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
