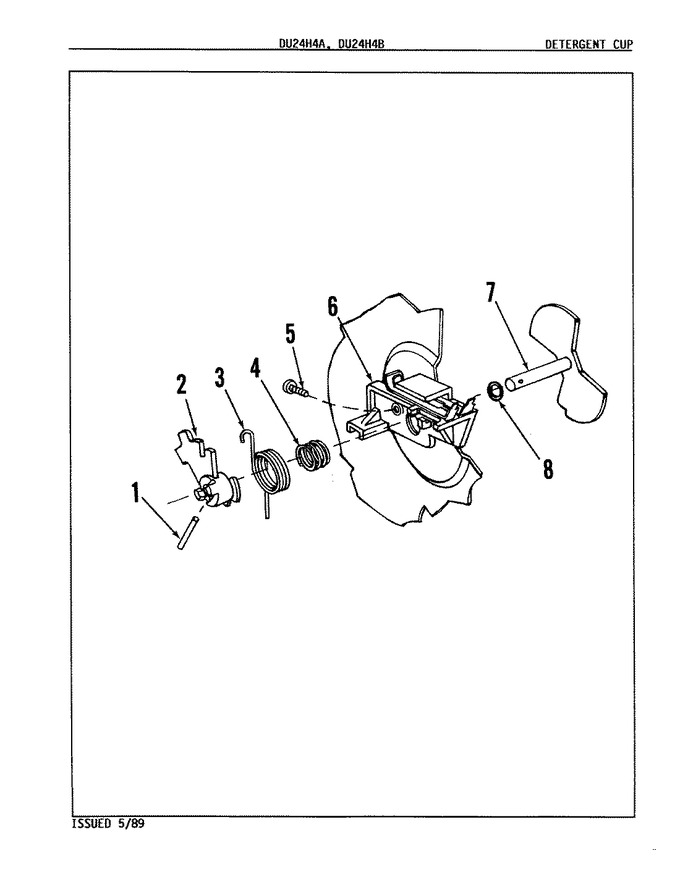

01 - Detergent Cup
02 - Door
03 - Frame
04 - Motor, Heater & Spray Arm
05 - Rack
06 - Tub
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 808827 | Roll Pin |
|
- | |||||
| 2 | 154180301 | Cam (Replaces: 806566) |
|
$ 32.84 | |||||
| 3 | 805227 | Spring |
|
- | |||||
| 4 | 806567 | Spring |
|
- | |||||
| 5 | 809029 | Screw |
|
- | |||||
| 6 | 809072 | Det Cup Trigger |
|
- | |||||
| 7 | 809028 | Dispenser Lid |
|
- | |||||
| 8 | 806647 | O Ring |
|
- |
