View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Detergent Cup
02 - Door
03 - Frame
04 - Motor, Heater & Spray Arm
05 - Rack
06 - Tub
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

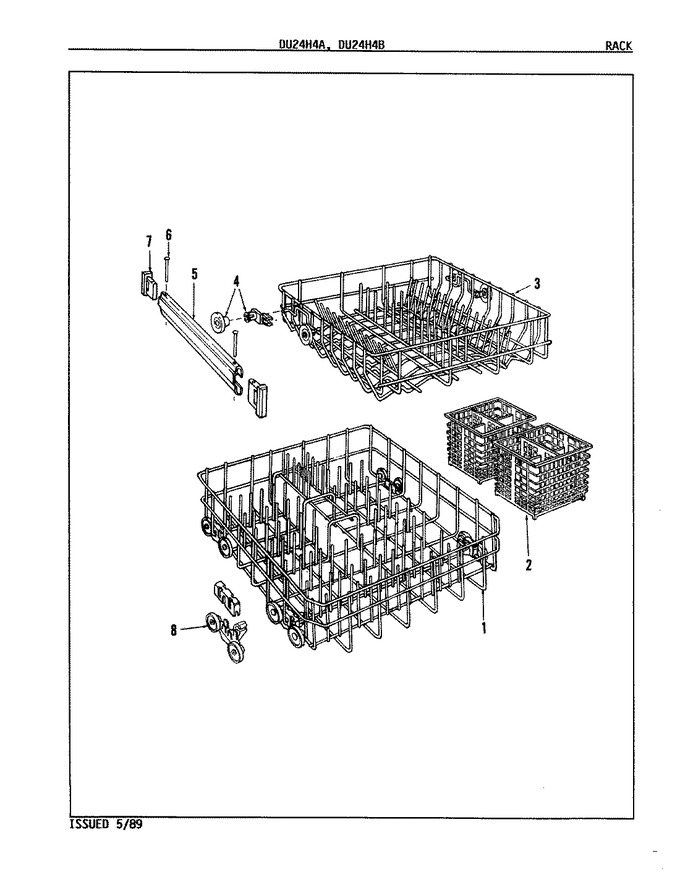

| 1 | 809149 | Lower Rack |
|
- | |||||
| 2 | 808845 | Slvrware Basket |
|
- | |||||
| 3 | 809497 | Upper Rack Asm |
|
- | |||||
| 4 | 809500 | Rack Wheel Asm |
|
- | |||||
| 5 | 809501 | Rack Slide |
|
- | |||||
| 6 | 809502 | Slide Cap Pin |
|
- | |||||
| 7 | 809721 | Slide Cap |
|
- | |||||
| 8 | 807008 | Wheel Asm |
|
- |
