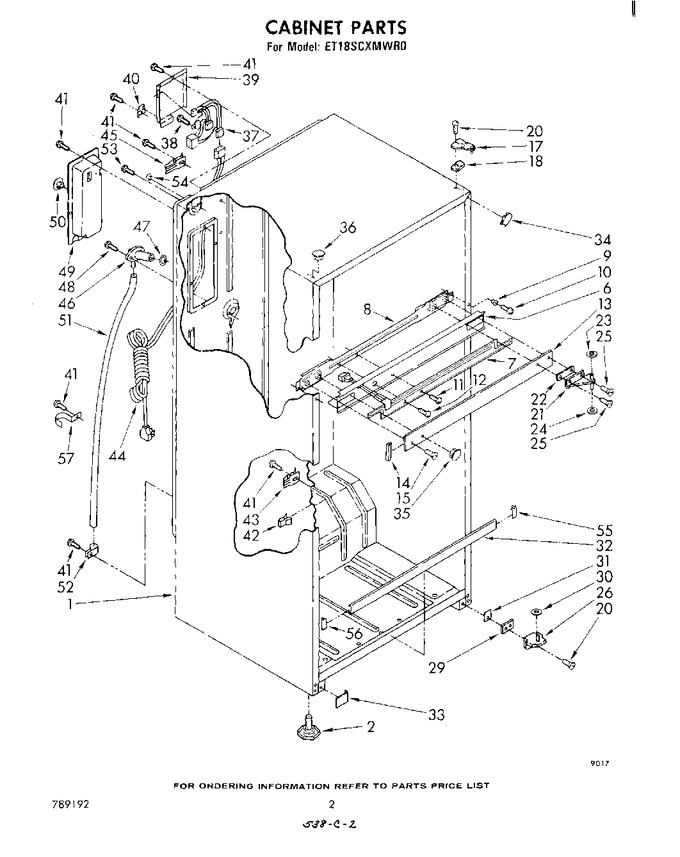

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 944766 | Leveler (2) |
|
- | |||||
| 6 | 943698 | Frame, Center Rail |
|
- | |||||
| 7 | 943691 | Heater, Mullion |
|
- | |||||
| 8 | 943699 | Center Rail, Bracket |
|
- | |||||
| 9 | 942737 | Ferrule, Center Rail |
|
- | |||||
| 10 | WP488729 | Screw, 8 X 1/2 (Replaces: 488320) |
|
Immediately | $ 7.79 | ||||
| 11 | WP965173 | Screw, 8-15 X 3/8 (Replaces: 487584) |
|
Immediately | $ 10.72 | ||||
| 12 | 489113 | Screw, 8-15 X 3/8 |
|
- | |||||
| 13 | 943695 | Center Rail (golden Harvest) |
|
- | |||||
| 13 | 943694 | Center Rail (coffee) |
|
- | |||||
| 13 | 943692 | Center Rail (white) |
|
- | |||||
| 13 | 943696 | Center Rail (new Avocado) |
|
- | |||||
| 14 | 946323 | Filler, Center Rail (2) (golden Harvest) |
|
- | |||||
| 14 | 946321 | Filler, Center Rail (2) (almond) |
|
- | |||||
| 14 | 946322 | Filler, Center Rail (2) (coffee) |
|
- | |||||
| 14 | 946324 | Filler, Center Rail (2) (new Avocado) |
|
- | |||||
| 14 | 946320 | Filler, Center Rail (2) (white) |
|
- | |||||
| 15 | 489097 | Screw, 10-32 X 3/8 |
|
- | |||||
| 17 | 1100513 | Shim, Hinge Top |
|
- | |||||
| 18 | 1100509 | Shim, Top Hinge |
|
- | |||||
| 20 | WP999367 | Screw, 10-32 X 23/32 (Replaces: 489105) |
|
$ 7.86 | |||||
| 20 | 488949 | Screw (repair) |
|
- | |||||
| 21 | 944788 | Hinge, Center |
|
$ 32.65 | |||||
| 22 | 836155 | Shim, Hinge Center |
|
- | |||||
| 22 | 836195 | Shim, Center (repair) |
|
- | |||||
| 23 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 24 | WP488296 | Washer, 11/64 (Replaces: 488296) |
|
$ 7.19 | |||||
| 25 | WP999367 | Screw, 10-32 X 1/2 (2) (Replaces: 489096) |
|
$ 7.86 | |||||
| 25 | 488949 | Screw (repair) |
|
- | |||||
| 26 | 944776 | Hinge Butt, Bottom |
|
- | |||||
| 29 | 1100779 | Shim, Bottom Hinge (almond) |
|
- | |||||
| 29 | 1100780 | Shim, Bottom Hinge (coffee) |
|
- | |||||
| 29 | 1100781 | Shim, Bottom Hinge (golden Harvest) |
|
- | |||||
| 29 | 1100782 | Shim, Bottom Hinge (new Avocado) |
|
- | |||||
| 29 | 1100778 | Shim, Bottom Hinge (white) |
|
- | |||||
| 30 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 31 | 942822 | Cover, Glider Rail (almond) |
|
- | |||||
| 31 | 942818 | Cover, Glider Rail (white) |
|
- | |||||
| 31 | 942819 | Cover, Glider Rail (coffee) |
|
- | |||||
| 31 | 942820 | Cover, Glider Rail (golden Harvest) |
|
- | |||||
| 31 | 942821 | Cover, Glider Rail (new Avocado) |
|
- | |||||
| 32 | 943686 | Cover, Deck Rail (coffee) |
|
- | |||||
| 32 | 943687 | Cover, Deck Rail (golden Harvest) |
|
- | |||||
| 32 | 943688 | Cover, Deck Rail (new Avocado) |
|
- | |||||
| 32 | 943689 | Cover, Deck Rail (almond) |
|
- | |||||
| 32 | 943685 | Cover, Deck Rail (white) |
|
- | |||||
| 33 | 943552 | Cover, Glider Rail (white) |
|
- | |||||
| 33 | 944831 | Cover, Glider Rail (almond) |
|
- | |||||
| 33 | 944832 | Cover, Glider Rail (coffee) |
|
- | |||||
| 33 | 944833 | Cover, Glider Rail (golden Harvest) |
|
- | |||||
| 33 | 944834 | Cover, Glider Rail (new Avocado) |
|
- | |||||
| 34 | 942811 | Filler, Wrap Corner (almond) |
|
- | |||||
| 34 | 942807 | Filler, Wrap Corner (white) |
|
- | |||||
| 34 | 942808 | Filler, Wrap Corner (coffee) |
|
- | |||||
| 34 | 942809 | Filler, Wrap Corner (golden Harvest) |
|
- | |||||
| 34 | 942810 | Filler, Wrap Corner (new Avocado) |
|
- | |||||
| 35 | 940086 | Hole Plug (white) |
|
- | |||||
| 35 | 940090 | Hole Plug (new Avocado) |
|
- | |||||
| 35 | 940089 | Hole Plug (golden Harvest) |
|
- | |||||
| 35 | 940088 | Hole Plug (coffee) |
|
- | |||||
| 35 | 940087 | Hole Plug (almond) |
|
- | |||||
| 36 | 989876 | Hole Plug (2) (golden Harvest) |
|
- | |||||
| 36 | 842031 | Hole Plug (2) (white) |
|
- | |||||
| 36 | 989195 | Hole Plug (2) (almond) |
|
- | |||||
| 36 | 989875 | Hole Plug (2) (coffee) |
|
- | |||||
| 36 | 989877 | Hole Plug (2) (new Avocado) |
|
- | |||||
| 37 | 942844 | Cabinet, Wiring Assembly |
|
- | |||||
| 38 | WP250830 | Screw, 8-32 X 1/2 (Replaces: 489048) |
|
$ 7.95 | |||||
| 39 | 942845 | Cover, Wiring |
|
- | |||||
| 40 | 944741 | Clip, Wiring Cover |
|
- | |||||
| 41 | W11624204 | Screw, 8 X 1/2 (Replaces: 486194) |
|
$ 14.02 | |||||
| 42 | W10812038 | Clip, Wire (4) (Replaces: 939054) |
|
- | |||||
| 43 | 549193 | Clamp-service Cord |
|
$ 13.39 | |||||
| 44 | 937360 | Cord, Service |
|
- | |||||
| 45 | 937357 | Clamp |
|
- | |||||
| 46 | 942813 | Fitting, Drain |
|
- | |||||
| 47 | 940121 | Gasket, Seal |
|
- | |||||
| 48 | WP98165 | Screw, 8 X 5/8 (Replaces: 488401) |
|
$ 8.00 | |||||
| 49 | 942853 | Plug Assembly |
|
- | |||||
| 50 | 655411 | Hole Plug |
|
- | |||||
| 51 | 8316810 | Tube, Drain (Replaces: 509640) |
|
$ 119.73 | |||||
| 52 | 519405 | Clamp |
|
- | |||||
| 53 | WP489069 | Screw, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 7.86 | ||||
| 54 | 536195 | Hole Plug |
|
- | |||||
| 55 | 944700 | Filler, Deck Rail (r.s.) (white) |
|
- | |||||
| 55 | 944702 | Filler, Deck Rail (r.s.) (coffee) |
|
- | |||||
| 55 | 944703 | Filler, Deck Rail (r.s.) (golden Harvest) |
|
- | |||||
| 55 | 944704 | Filler, Deck Rail (r.s.) (new Avocado) |
|
- | |||||
| 55 | 944701 | Filler, Deck Rail (r.s.) (almond) |
|
- | |||||
| 56 | 944705 | Filler, Deck Rail (l.s.) (white) |
|
- | |||||
| 56 | 944709 | Filler, Deck Rail (l.s.) (new Avocado) |
|
- | |||||
| 56 | 944708 | Filler, Deck Rail (l.s.) (golden Harvest) |
|
- | |||||
| 56 | 944707 | Filler, Deck Rail (l.s.) (coffee) |
|
- | |||||
| 56 | 944706 | Filler, Deck Rail (l.s.) (almond) |
|
- | |||||
| 57 | 1103015 | Clamp, Drain Tube |
|
- |
