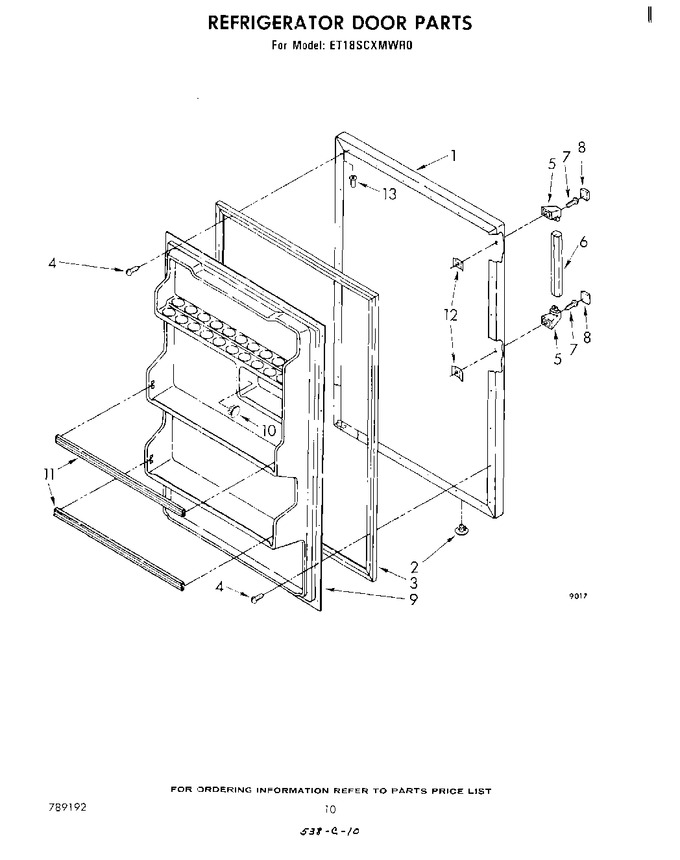

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1100030		Panel, Refrigerator Door (almond)		Appelez-nous	-
1	1100026		Panel, Refrigerator Door (white)		Appelez-nous	-
1	1100027		Panel, Refrigerator Door (coffee)		Appelez-nous	-
1	1100028		Panel, Refrigerator Door (golden Harvest)		Appelez-nous	-
1	1100029		Panel, Refrigerator Door (new Avocado)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	946991		Door Gasket, Magnetic		Appelez-nous	-
4	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 8.47
4	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 8.40
5	992814		End Cap, Handle		Appelez-nous	-
6	1100023		Handle, Center		Appelez-nous	-
7	488987		Screw, 8-15 X 1-5/8		Appelez-nous	-
8	1100024		Door Handle, Cover		Appelez-nous	-
9	945886		Interior Door Panel		Appelez-nous	-
10	655410		Hole Plug (2)		Appelez-nous	-
11	946819		Trim, Door Shelf (2)		Appelez-nous	-
12	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.88
13	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
13	1101603		Energy Guide Label		Appelez-nous	-
13	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
13	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
13	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
13	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
13	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
13	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
13	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
13	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
13	261886		Enamel, Coffee (13 Oz. Spray Can)		Appelez-nous	-
13	261888		Enamel, New Avocado (13 Oz. Spray Can)		Appelez-nous	-
13	261890		Enamel, Golden Harvest (13 Oz. Spray Can)		Appelez-nous	-
13	833938		Kit, Terminal Connector				$ 8.47
13	946417		Care & Use Guide		Appelez-nous	-
13	946424		Consumer Buy Guide		Appelez-nous	-
13	946604		Tech Sheet		Appelez-nous	-
13	350956		Enamel, Almond (13 Oz. Spray Can)				$ 54.01
13	509929		Cap, Hinge Sleeve (2)		Appelez-nous	-
13	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
13	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
13	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
13	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
13	482395		Plastic Repair Kit				$ 84.17
13	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
13	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
13	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
13	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
13	789192		List, Parts		Appelez-nous	-
13	350942		Primer White (13 Oz. Spray Can)				$ 94.14
13	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
13	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
13	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
13	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 109.25
13	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 60.28
13	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 137.86
13	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
13	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
13	261887		Enamel, Coffee (1 Qt. Uncut)		Appelez-nous	-
13	261889		Enamel, New Avocado (1 Qt. Uncut)		Appelez-nous	-
13	261891		Enamel, Golden Harvest (1 Qt. Uncut)		Appelez-nous	-
13	876370		Insulation, Fiberglass (63-1/2`` X 32-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
