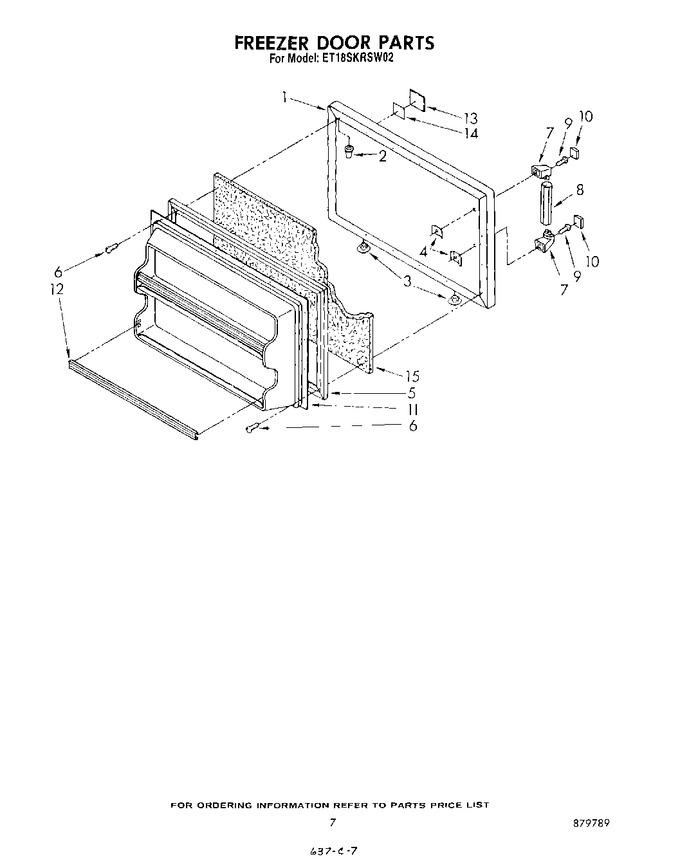

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1106166		Panel, Freezer Door (also Order Item 15) (white)		Appelez-nous	-
2	509929		Cap, Hinge Sleeve		Appelez-nous	-
3	534927		Hole Plug		Appelez-nous	-
4	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.50
5	1106180		Door Gasket, Magnetic		Appelez-nous	-
6	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
6	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.85
7	992814		End Cap, Handle		Appelez-nous	-
8	1100023		Handle, Center		Appelez-nous	-
9	488923		Screw (repair)		Appelez-nous	-
9	488987		Screw, 8-15 X 1-5/8		Appelez-nous	-
10	1100024		Door Handle, Cover		Appelez-nous	-
11	945802		Interior Door Panel		Appelez-nous	-
12	1116065		Trim, Door Shelf		Appelez-nous	-
13	945114		Nameplate Assembly		Appelez-nous	-
14	991259		Tape		Appelez-nous	-
15	876029		Kit, Foam Slab (required When Replacing Exterior Door)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
