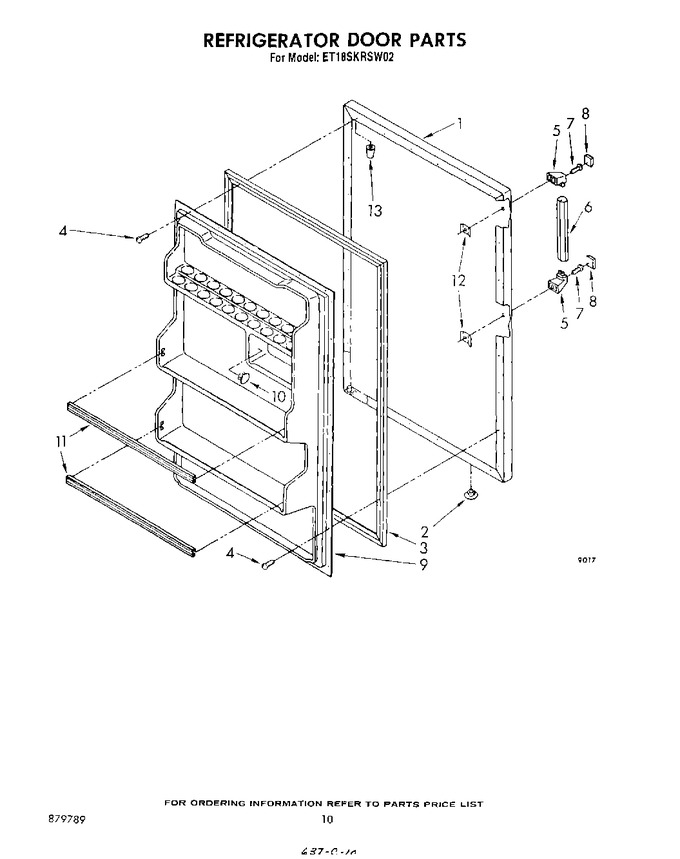

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1106162		Panel, Refrigerator Door (white)		Appelez-nous	-
2	534927		Hole Plug (2)		Appelez-nous	-
3	1109186		Door Gasket, Magnetic		Appelez-nous	-
4	WP681414		Screw ((repair))   (Replaces: 488552)			Immediately	$ 7.85
4	WP489069		Screw, 7 X 1/2   (Replaces: 489101)			Immediately	$ 7.86
5	992814		End Cap, Handle		Appelez-nous	-
6	1100023		Handle, Center		Appelez-nous	-
7	488987		Screw, 8-15 X 1-5/8		Appelez-nous	-
8	1100024		Door Handle, Cover		Appelez-nous	-
9	945886		Interior Door Panel		Appelez-nous	-
10	655410		Hole Plug (2)		Appelez-nous	-
11	1116062		Trim, Door Shelf (2)		Appelez-nous	-
12	WP939101		Screw Anchor (2)   (Replaces: 939101)				$ 7.50
13	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
13	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 117.94
13	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
13	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.18
13	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 173.95
13	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 231.56
13	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 231.56
13	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
13	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
13	799908		Silicone (spray)		Appelez-nous	-
13	350942		Primer White (13 Oz. Spray Can)				$ 89.66
13	350941		Leveler, Enamel (13 Oz. Spray Can)		Appelez-nous	-
13	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 57.04
13	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 38.21
13	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
13	833938		Kit, Terminal Connector				$ 8.07
13	509929		Cap, Hinge Sleeve		Appelez-nous	-
13	212643		Sealer, Gum (4 Feet)			Immediately	$ 82.13
13	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
13	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 231.56
13	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
13	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 49.29
13	606755		Bag, Insulation (36-5/8`` X 46``)				$ 78.45
13	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
	LIT879789		Parts List		Appelez-nous	-
	LIT1114011		Care & Use Guide		Appelez-nous	-
	LIT1116380		Energy Label		Appelez-nous	-
	LIT1105320		Service & Wiring Sheet		Appelez-nous	-
