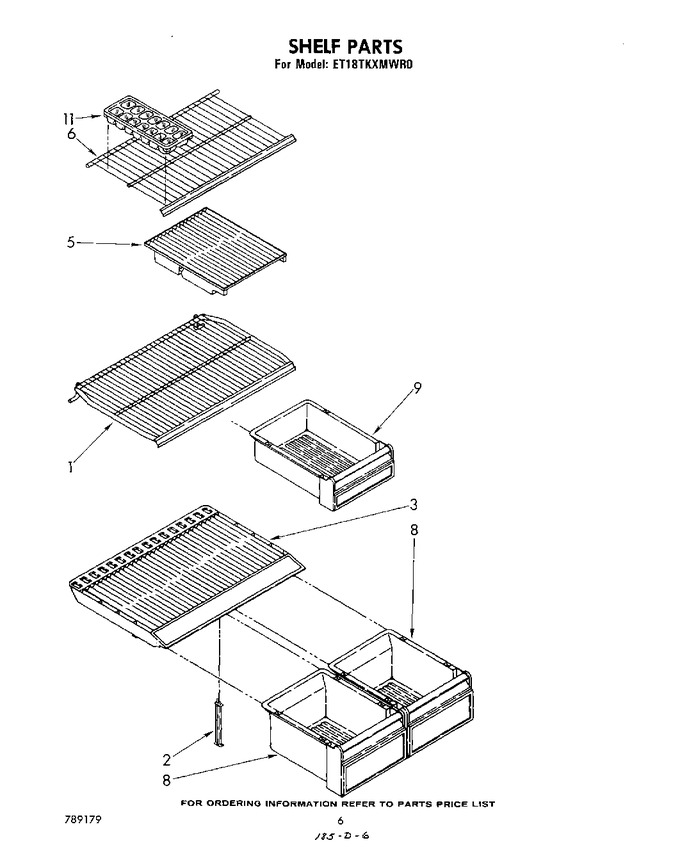

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	946454		Shelf, Pullout (3)		Appelez-nous	-
2	1100462		Support Post		Appelez-nous	-
3	1100633		Cover, Crisper		Appelez-nous	-
5	944739		Cover, Meat Pan		Appelez-nous	-
6	1100461		Shelf, Freezer		Appelez-nous	-
8	946438		Pan, Crisper (2)		Appelez-nous	-
9	946426		Pan, Meat		Appelez-nous	-
11	WP841180A		Tray, Ice (2) (for Platinum Model Only)   (Replaces: 841180)			Immediately	$ 47.84
11	WP841180A		Tray, Ice (2)   (Replaces: 944744)			Immediately	$ 47.84
