Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 945281 Panel, Refrigerator Door (coffee) Appelez-nous -
1 1100275 Panel, Refrigerator Door (platinum) Appelez-nous -
1 1100274 Panel, Refrigerator Door (toast) Appelez-nous -
1 945284 Panel, Refrigerator Door (almond) Appelez-nous -
1 945283 Panel, Refrigerator Door (new Avocado) Appelez-nous -
1 945282 Panel, Refrigerator Door (golden Harvest) Appelez-nous -
1 945280 Panel, Refrigerator Door (white) Appelez-nous -
2 534927 Hole Plug (2) Appelez-nous -
3 943185 Plate, Tap (4) Appelez-nous -
4 944036 Bracket, Door Stop Appelez-nous -
5 WP488921 Screw, 8 X 1/2   (Replaces: 488921) In-Stock Immediately $ 7.75

6 WP8281206 Screw, 8-15 X 1/2   (Replaces: 489028) Special Order $ 7.94

6 488930 Screw (repair) Appelez-nous -
7 WP2212648 Hole Plug (white)   (Replaces: 844478) In-Stock Immediately $ 7.80

7 989196 Hole Plug (almond) Appelez-nous -
7 989892 Hole Plug (coffee) Appelez-nous -
7 1100189 Hole Plug (platinum) Appelez-nous -
7 1100188 Hole Plug (toast) Appelez-nous -
7 989894 Hole Plug (new Avocado) Appelez-nous -
7 WP2212648 Hole Plug (golden Harvest)   (Replaces: 989893) In-Stock Immediately $ 7.80

8 946993 Door Gasket, Magnetic Appelez-nous -
9 WP489069 Screw, 7 X 1/2   (Replaces: 489101) In-Stock Immediately $ 7.86

9 WP681414 Screw ((repair))   (Replaces: 488552) In-Stock Immediately $ 7.85

10 943182 Handle End Appelez-nous -
11 WP2183139 Handle End, Side   (Replaces: 983542) In-Stock Immediately $ 49.50

12 982946 Handle, Center Appelez-nous -
13 992872 Shim, Handle End (side) Appelez-nous -
14 943188 Spacer, Handle Door Special Order $ 7.80

15 WP939101 Screw Anchor (2)   (Replaces: 939101) Special Order $ 7.50

16 WP488920 Screw, 8 X 5/8 (2)   (Replaces: 488920) Special Order $ 7.49

17 WP488729 Screw, 8 X 1/2   (Replaces: 487875) In-Stock Immediately $ 7.79

18 WP1101634 Screw Cover   (Replaces: 1100011) Special Order $ 9.22

19 945886 Interior Door Panel Appelez-nous -
20 946819 Trim, Door (2) Appelez-nous -
23 946999 Compartment, Butter Door Appelez-nous -
24 843213 Clip, Medallion Appelez-nous -
25 WP488729 Screw, 8 X 1/2   (Replaces: 487909) In-Stock Immediately $ 7.79

26 1100194 Medallion (toast) Appelez-nous -
26 1100195 Medallion (platinum) Appelez-nous -
26 989901 Medallion (coffee) Appelez-nous -
26 848382 Medallion (white) Appelez-nous -
26 989902 Medallion (new Avocado) Appelez-nous -
26 989903 Medallion (golden Harvest) Appelez-nous -
26 989904 Medallion (almond) Appelez-nous -
27 520747 Tray, Butter Appelez-nous -
28 1101603 Energy Guide Label Appelez-nous -
28 WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 17.91

28 72032 Paint, Touch-up 1/2 Oz. (black) In-Stock Immediately $ 18.69

28 72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 12.30

28 WP503695 Cork, Sealer 1/4 Pound)   (Replaces: 503695) Special Order $ 117.94

28 542639 Cement, Alumilastic 1-1/4 Oz.) Appelez-nous -
28 WP542638 Grease, Silicone (1/2 Oz.)   (Replaces: 542638) In-Stock Immediately $ 12.18

28 WP505587 Sealer, Mastic (1 Qt.).   (Replaces: 505587) In-Stock Immediately $ 173.95

28 876370 Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305) Special Order $ 231.56

28 876370 Insulation, Fiberglass (63-1/2`` X 32-1/2`` X 2-5/8``)   (Replaces: 978941) Special Order $ 231.56

28 285368 Enamel, Platinum (1 Qt. Uncut) Appelez-nous -
28 799340 Enamel, Black (1 Qt. Uncut) Appelez-nous -
28 799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

28 261887 Enamel, Coffee (1 Qt. Uncut) Appelez-nous -
28 261889 Enamel, New Avocado (1 Qt. Uncut) Appelez-nous -
28 261891 Enamel, Golden Harvest (1 Qt. Uncut) Appelez-nous -
28 978883 Enamel, Almond (1 Qt. Uncut) Appelez-nous -
28 261886 Enamel, Coffee (13 Oz. Spray Can) Appelez-nous -
28 261888 Enamel, New Avocado (13 Oz. Spray Can) Appelez-nous -
28 261890 Enamel, Golden Harvest (13 Oz. Spray Can) Appelez-nous -
28 833938 Kit, Terminal Connector Ice Maker Field Installable Special Order $ 8.07

28 946416 Care & Use Guide Appelez-nous -
28 946423 Consumer Buy Guide Appelez-nous -
28 946604 Tech Sheet Appelez-nous -
28 350956 Enamel, Almond (13 Oz. Spray Can) Special Order $ 51.44

28 509929 Cap, Hinge Sleeve (4) Appelez-nous -
28 212643 Sealer, Gum (4 Feet) In-Stock Immediately $ 82.13

28 479502 Tape, Vinyl 3/4 X 108``) Special Order $ 66.77

28 876370 Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) Special Order $ 231.56

28 876029 Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) Appelez-nous -
28 482395 Plastic Repair Kit Special Order $ 84.17

28 511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 49.29

28 606755 Bag, Insulation (36-5/8`` X 46``) Special Order $ 78.45

28 799833 Kit, Evaporator Repair (aluminum Epoxy) Appelez-nous -
28 799832 Kit. Porcelain Repair (white) Appelez-nous -
28 789179 List, Parts Appelez-nous -
28 350942 Primer White (13 Oz. Spray Can) Special Order $ 89.66

28 350941 Leveler, Enamel (13 Oz. Spray Can) Appelez-nous -
28 285006 Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939) Special Order $ 57.04

28 350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 38.21

28 285365 Paint, Spray (13 Oz.) (toast) Appelez-nous -
28 285366 Paint, Spray (13 Oz.) (platinum) Appelez-nous -
28 DD81-03944A Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108) Special Order $ 109.25

28 DD81-03471A Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109) Special Order $ 60.28

28 DD81-03523A Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110) Special Order $ 137.86

28 72112 Paint, (touch-up 1/2 Oz.) (toast) Appelez-nous -
28 DD81-03496A Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113) Special Order $ 117.11

28 285367 Enamal, Toast (1 Qt. Uncut) Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

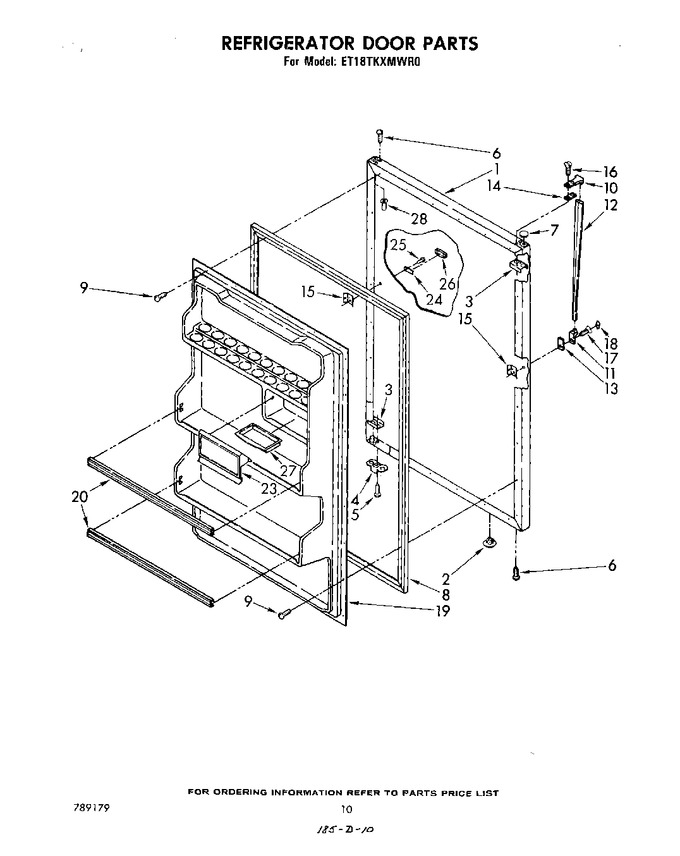

Diagram for ET18TKXMWR0
