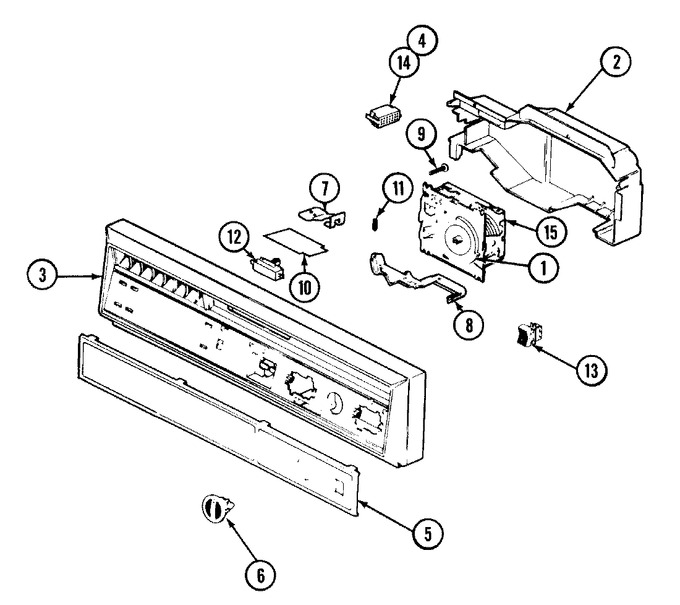

01 - Control Panel


02 - Door


03 - Pump Assembly


04 - Rack


05 - Tub


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2195-0010		Timer, Cam		Appelez-nous	-
2	03000099		Cover Electrical		Appelez-nous	-
3	03000100		Escutcheon		Appelez-nous	-
4	Y03000072		Terminal, Housing		Appelez-nous	-
5	03000073		Insert, Escutcheon		Appelez-nous	-
6	2615-0014		Knob, Timer		Appelez-nous	-
7	3135-0035		Switch, Leaf Assembly		Appelez-nous	-
8	2660-0003		Lever, Detergent Timer		Appelez-nous	-
9	3005-0032		Screw		Appelez-nous	-
10	3030-0006		Shield, Switch		Appelez-nous	-
11	3070-0007		Spring, Det. Trip		Appelez-nous	-
12	3135-0006		Switch, Interlock		Appelez-nous	-
13	Y03000074		Switch, Rocker		Appelez-nous	-
13	03000225		Switch, Rocker		Appelez-nous	-
14	Y03000076		Terminal		Appelez-nous	-
15	Y03000075		Timer		Appelez-nous	-
16	W10124376		Manual, Use & Care		Appelez-nous	-
17	16000329		Guide, Quick Ref. - Magic Chef		Appelez-nous	-
