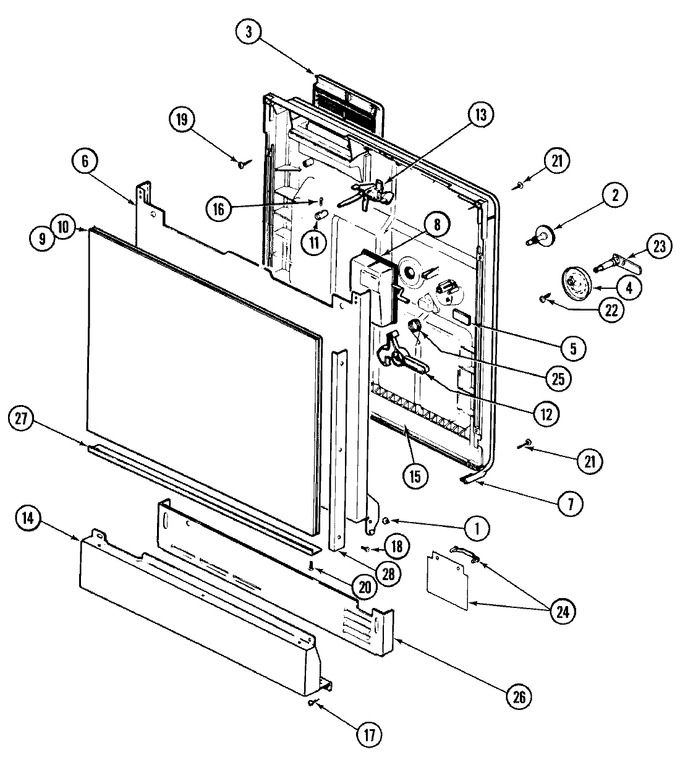

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2095-0002		Bearing, Hinge Arm		Appelez-nous	-
2	Y03000003		Cap, Fill		Appelez-nous	-
3	3265-0002		Vent Assy.		Appelez-nous	-
4	2275-0005		Cover, Detergent Cup				$ 43.29
5	2307-0001		Deflector		Appelez-nous	-
6	Y03000093		Door &hinge Assembly (outer)		Appelez-nous	-
7	2450-0016		Gasket		Appelez-nous	-
8	Y03000002		Injector, Rinse		Appelez-nous	-
10	2580-0011		Insert, Panel (blk/alm)		Appelez-nous	-
11	2615-0002		Knob,latch Handle		Appelez-nous	-
12	2645-0004		Latch, Detergent Cup		Appelez-nous	-
13	Y03000191		Latch, Assembly		Appelez-nous	-
14	Y03000189		Panel, Access		Appelez-nous	-
15	2800-0004		Panel, Inner Door		Appelez-nous	-
16	3005-0029		Screw		Appelez-nous	-
17	61002031		Screw   (Replaces: 3005-0033)				$ 43.43
18	W11233072		Screw   (Replaces: Y03000188)			Immediately	$ 13.25
19	3005-0032		Screw		Appelez-nous	-
20	3005-0014		Screw		Appelez-nous	-
21	3005-0028		Screw		Appelez-nous	-
22	3005-0074		Screw		Appelez-nous	-
23	3020-0007		Shaft, Det. Cup		Appelez-nous	-
24	3030-0001		Shield,drip		Appelez-nous	-
25	3070-0005		Spring, Detergent Cup		Appelez-nous	-
26	Y03000037		Toe Kick		Appelez-nous	-
27	03000094		Trim Bottom Door		Appelez-nous	-
28	Y03000097		Door Trim Side		Appelez-nous	-
