SELECT A DIAGRAM

01 - Cabinet Parts


02 - Door Parts


03 - Liner Parts

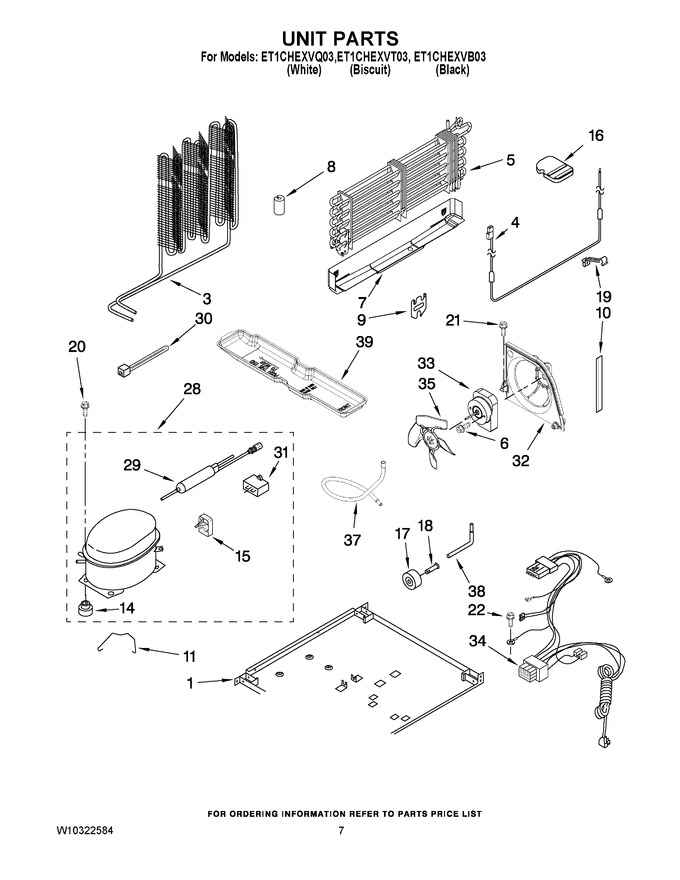

04 - Unit Parts


05 - Icemaker Parts


06 - Shelf Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2320187		Plate, Unit Mounting		Appelez-nous	-
3	W10268878		Condenser		Appelez-nous	-
4	WPW10140847		Heater, Defrost   (Replaces: W10140847)				$ 167.34
5	2254249		Evaporator Assy				$ 239.15
6	W11501418		Screw   (Replaces: 8533961)		Appelez-nous	-
7	2254295		Drain Pan				$ 74.91
8	W10852725		Grommet, Cond (4)   (Replaces: 2319835)				$ 8.09
9	2176301		Bracket, Heater				$ 6.37
10	2300638		Extension, Air Baffle				$ 52.69
11	2212996		Strap   (Replaces: 2255113)				$ 12.72
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 7.30
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.79
15	W10805623		Start-device Combination (start Relay And Overload For Production Compressor Only)   (Replaces: W10249964)				$ 132.96
16	2201185		Support Block				$ 8.21
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 19.12
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw   (Replaces: 489373)				$ 7.79
21	3400518		Screw				$ 13.63
22	WP489128		Screw   (Replaces: 488500)				$ 11.40
28	W10285060		Compressor (includes Illus. 14,29,31) (also Order 482801 Installation Kit & 876765 Tube Kit)   (Replaces: W10252075)				$ 738.55
29	WPW10143759		Drier (service)   (Replaces: W10143759)			Immediately	$ 30.78
29	WPW10143759		Drier (production)   (Replaces: W10177049)			Immediately	$ 30.78
30	WPW10339879		Clamp   (Replaces: 2155774)				$ 8.30
31	WPW10662129		Capacitator (production)   (Replaces: 2264017)			Immediately	$ 58.86
31	WPW10662129		Capacitator (service)   (Replaces: 1118576)			Immediately	$ 58.86
32	WP2315541		Air Baffle   (Replaces: 2315541)			Immediately	$ 87.99
33	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
34	2187382		Wire Assembly Unit				$ 264.30
35	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 25.19
37	2225237		Tube, Suction				$ 40.12
38	2154109		Tube, Process				$ 76.26
39	WP2254574		Tray, Evaporator   (Replaces: 2254574)				$ 183.59
NI	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
NI	978028		Valve, Access (1/2)		Appelez-nous	-
NI	978029		Valve Access (5/8``)				$ 93.85
NI	978030		Valve, Access (3/4``)				$ 137.25
NI	876764		Valve, Access(3/16``)			Immediately	$ 95.92
NI	N/P		Refrigerant Charge (4.00 Ozs. (r134a)		Appelez-nous	-
NI	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 110.51
NI	978026		Valve, Access (5/16``)			Immediately	$ 134.49
