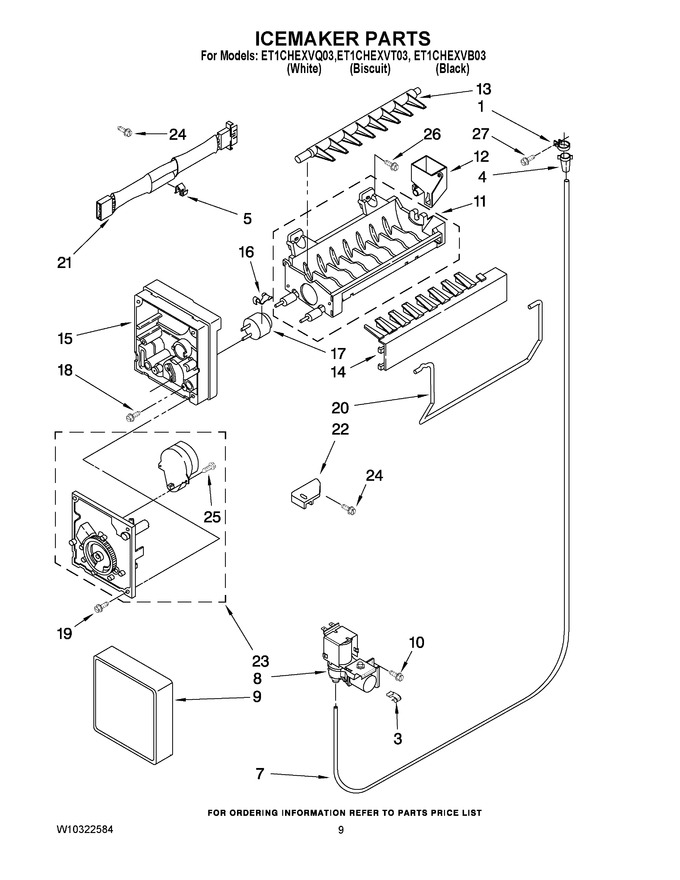

05 - Icemaker Parts
06 - Shelf Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP488878 | Clamp, Tube (Replaces: 488878) |
|
$ 11.60 | |||||
| 3 | 2210495 | Clip, Water Valve |
|
- | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.84 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 10.57 | |||||
| 7 | W10823511 | Tube Water (Replaces: 2181943) |
|
Immediately | $ 32.41 | ||||
| 8 | WP2315576 | Valve Solenoid (Replaces: 2315576) |
|
Immediately | $ 95.98 | ||||
| 9 | WPW10289690 | Cover (Replaces: W10289690) |
|
Immediately | $ 8.40 | ||||
| 10 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.94 | ||||
| 11 | WPW10190929 | Mold & Heater Assembly (also Order 542638 Silicone Grease) (Replaces: W10122527) |
|
$ 233.15 | |||||
| 12 | W10122561 | Cup, Water Fill (Replaces: 628515) |
|
$ 27.77 | |||||
| 13 | WP627843 | Ejector (Replaces: 627843) |
|
$ 83.60 | |||||
| 14 | WPW10122563 | Ice Striper (Replaces: W10122563) |
|
$ 94.69 | |||||
| 15 | WP2195914 | Support (Replaces: 2194712) |
|
$ 104.57 | |||||
| 16 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 11.05 | |||||
| 17 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 628397) |
|
$ 109.18 | |||||
| 18 | 8533917 | Screw |
|
$ 13.37 | |||||
| 19 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 20 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 84.53 | |||||
| 21 | WP2187464 | Harness, Wiring (Replaces: 2187464) |
|
$ 124.57 | |||||
| 22 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 32.17 | ||||
| 23 | 8201515 | Module Assembly (includes Item 25) (Replaces: W10223929) |
|
Immediately | $ 141.64 | ||||
| 24 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.75 | |||||
| 25 | 489136 | Screw (3-24 X 23/64) |
|
$ 10.29 | |||||
| 26 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.54 | |||||
| 27 | WP488787 | Screw, (8-18 X 1/2) (Replaces: 488886) |
|
$ 10.58 | |||||
| 100 | 4317943 | Ice Maker, Complete Assembly (Replaces: W10190952) |
|
Immediately | $ 188.95 |
