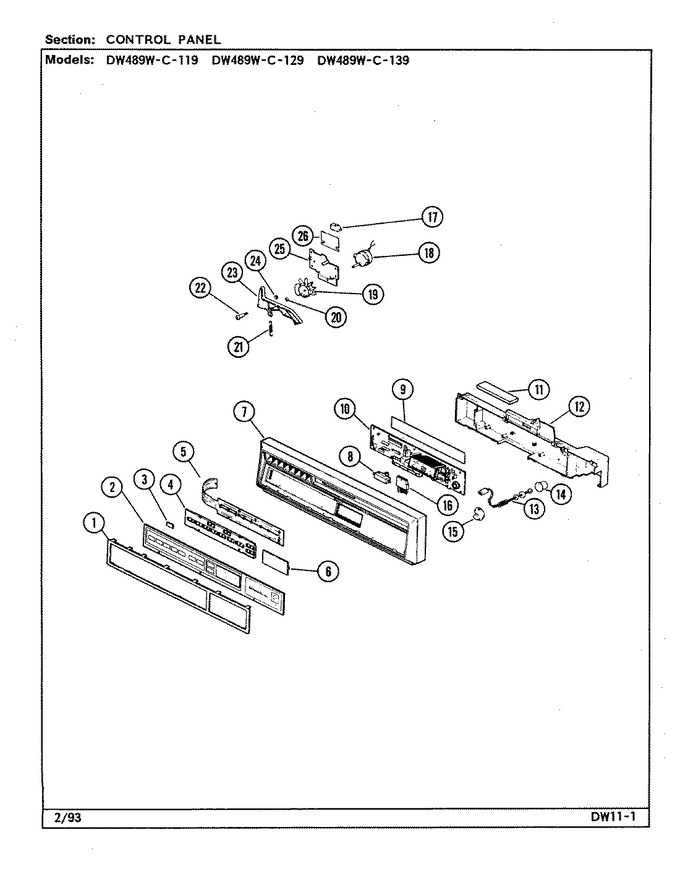

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 03000058 | Frame | 1 |
|
- | ||||
| 2 | WD34M459 | Insert Control Panel | 1 |
|
- | ||||
| 3 | 2775-0008 | Pad | 1 |
|
- | ||||
| 4 | 2080-0004 | Barrier | 1 |
|
- | ||||
| 5 | 3135-0065 | Switch | 1 |
|
- | ||||
| 6 | 03000059 | Filter Display | 1 |
|
- | ||||
| 7 | 03000061 | Escutcheon (white) | 1 |
|
- | ||||
| 8 | 3135-0064 | Switch | 1 |
|
- | ||||
| 9 | 2080-0005 | Barrier, Moisture | 1 |
|
- | ||||
| 10 | Y03000062 | Control Board | 1 |
|
- | ||||
| 11 | 2775-0007 | Pad, Foam | 1 |
|
- | ||||
| 12 | 2275-0031 | Cover, Circuit Board | 1 |
|
- | ||||
| 13 | 3155-0002 | Thermistor & Spring | 1 |
|
- | ||||
| 14 | 3155-0005 | Thermister,housing | 1 |
|
- | ||||
| 15 | 2940-0012 | Retainer, Thermistor | 1 |
|
- | ||||
| 16 | 2260-0011 | Connector, Elec. 6 Pin | 1 |
|
- | ||||
| 16 | 2260-0008 | Connector, Elec 5 Pins | 1 |
|
- | ||||
| 17 | 3135-0080 | Switch, Detergent Motor | 1 |
|
- | ||||
| 18 | 2720-0012 | Motor, Detergent Cup | 1 |
|
- | ||||
| 19 | 2195-0008 | Cam, Motor | 1 |
|
- | ||||
| 20 | 2940-0011 | Retainer | 1 |
|
- | ||||
| 21 | 3070-0007 | Spring, Det. Trip | 1 |
|
- | ||||
| 22 | 3125-0004 | Nut Lock | 1 |
|
- | ||||
| 23 | 2660-0024 | Lever, Detergent Trip | 1 |
|
- | ||||
| 24 | 2735-0027 | Lock Nut | 1 |
|
- | ||||
| 25 | 2845-0031 | Plate Mounting | 1 |
|
- | ||||
| 26 | 2590-0009 | Insulator, Switch | 1 |
|
- |
