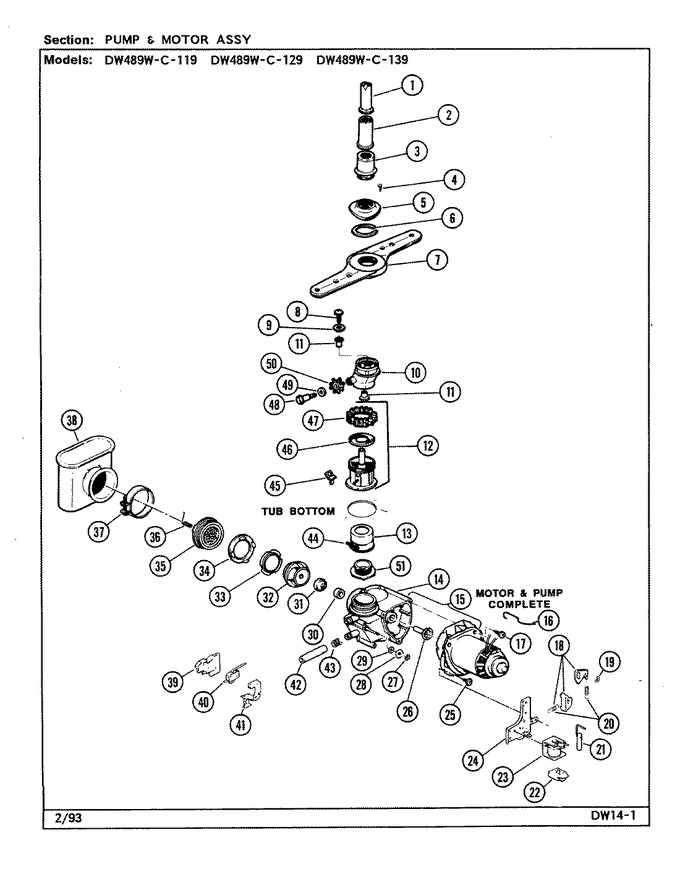

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WD22M18 | Tube, Spray Top | 1 |
|
- | ||||
| 2 | 3175-0001 | Tube, Spray Center | 1 |
|
- | ||||
| 3 | WD22M20 | Base, Spray | 1 |
|
- | ||||
| 4 | 3005-0008 | Screw | 1 |
|
- | ||||
| 5 | 2005-0001 | Adapter, Power Tower | 1 |
|
- | ||||
| 6 | 3010-0017 | Ring, Split | 1 |
|
- | ||||
| 7 | Y03000056 | Arm, Spray | 1 |
|
- | ||||
| 8 | 3005-0044 | Screw | 1 |
|
- | ||||
| 9 | WG04A01350 | Washer (Replaces: 3280-0001) | 1 |
|
$ 11.44 | ||||
| 10 | 2540-0003 | Hub & Pinion | 1 |
|
- | ||||
| 11 | 2095-0001 | Bearing | 1 |
|
- | ||||
| 12 | 3130-0023 | Support & Nut Assembly | 1 |
|
- | ||||
| 13 | 2260-0009 | Connector, Pump | 1 |
|
- | ||||
| 14 | WG04F00655 | Housing Pump Assembly (Replaces: 2535-0001) | 1 |
|
Immediately | $ 246.46 | |||
| 15 | WG04F00655 | Motor Assy. (Replaces: Y03000182) | 1 |
|
Immediately | $ 246.46 | |||
| 16 | 03000183 | Hanger Mechanism | 1 |
|
- | ||||
| 17 | 3005-0113 | Screw | 1 |
|
- | ||||
| 18 | 2020-0004 | Arm Kit, Gate Valve | 1 |
|
- | ||||
| 19 | 2940-0001 | Retainer | 1 |
|
- | ||||
| 20 | 3070-0002 | Spring, Gate Valve | 1 |
|
- | ||||
| 21 | 2025-0001 | Link & Armature | 1 |
|
- | ||||
| 22 | 03000186 | Insulator | 1 |
|
- | ||||
| 23 | Y03000185 | Solenoid | 1 |
|
- | ||||
| 24 | 03000106 | Bracket, Solenoid | 1 |
|
- | ||||
| 25 | 3005-0002 | Screw | 1 |
|
- | ||||
| 26 | 3050-0001 | Shaft Guard, Slinger | 1 |
|
- | ||||
| 26 | 3040-0008 | Sleeve, Centering | 1 |
|
- | ||||
| 27 | 2735-0041 | Nut | 1 |
|
- | ||||
| 28 | 3280-0024 | Washer | 1 |
|
- | ||||
| 29 | 3010-0002 | Seal, Shaft | 1 |
|
- | ||||
| 30 | 3010-0003 | Seal, Seat | 1 |
|
- | ||||
| 31 | 3010-0004 | Seal, Shaft | 1 |
|
- | ||||
| 32 | 2560-0003 | Pump Impeller | 1 |
|
- | ||||
| 33 | 2945-0001 | Wear Ring | 1 |
|
- | ||||
| 34 | 2085-0001 | Base, Wear Ring | 1 |
|
- | ||||
| 35 | 2465-0002 | Grader/nut | 1 |
|
- | ||||
| 36 | 3070-0001 | Spring, Cutter | 1 |
|
- | ||||
| 37 | WP696392 | Clamp (Replaces: 2235-0008) | 1 |
|
$ 8.17 | ||||
| 38 | 2575-0004 | Sump-inlet | 1 |
|
- | ||||
| 40 | 3135-0005 | Switch, Float | 1 |
|
- | ||||
| 41 | 03000192 | Bracket | 1 |
|
- | ||||
| 42 | 2530-0009 | Hose, Drain | 1 |
|
- | ||||
| 43 | 2235-0004 | Clamp, Fill Hose | 1 |
|
- | ||||
| 44 | WP696392 | Clamp (Replaces: 2235-0007) | 1 |
|
$ 8.17 | ||||
| 45 | WG04F04521 | Valve (Replaces: WD2M49) | 1 |
|
Immediately | $ 3.64 | |||
| 46 | 3010-0018 | Seal, Lip Lower | 1 |
|
- | ||||
| 47 | 2735-0032 | Nut, Gear | 1 |
|
- | ||||
| 48 | 3005-0138 | Screw | 1 |
|
- | ||||
| 49 | 3280-0036 | Washer | 1 |
|
- | ||||
| 50 | 2451-0001 | Gear, Pinion | 1 |
|
- |
