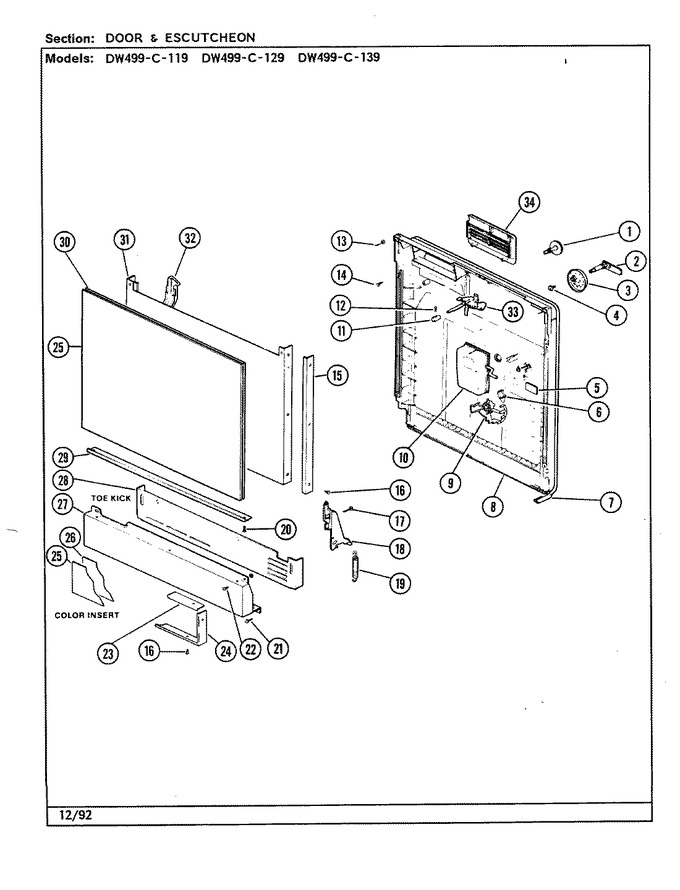

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WG04A04026		Fill Cap Assembly   (Replaces: WD12M69)	1		Immediately	$ 51.53
2	3020-0007		Shaft, Det. Cup	1	Appelez-nous	-
3	WG04F01675		Cover,detergent Cup   (Replaces: WD16M25)	1			$ 11.44
4	3005-0113		Screw	1	Appelez-nous	-
5	2307-0001		Deflector	1	Appelez-nous	-
6	3070-0032		Spring, Detergent Latch	1	Appelez-nous	-
7	WD8M13		Gasket	1	Appelez-nous	-
8	WD31M58		Inner Door	1	Appelez-nous	-
9	2195-0011		Cam, Detergent Trip	1	Appelez-nous	-
10	2570-0001		Injector, Rinse	1	Appelez-nous	-
11	WD9M21		Knob, Latch Handle	1	Appelez-nous	-
12	3005-0029		Screw	1	Appelez-nous	-
13	3005-0028		Screw	1	Appelez-nous	-
14	3005-0032		Screw	1	Appelez-nous	-
15	3230-0086		Trim, Door Side	1	Appelez-nous	-
16	3005-0031		Screw	1	Appelez-nous	-
17	WD3M62		Screw	1	Appelez-nous	-
18	WD14M3		Arm Hinge (left)	1	Appelez-nous	-
18	WD14M4		(right)	1	Appelez-nous	-
19	WD2M171		Spring, Door	1	Appelez-nous	-
20	3005-0014		Screw	1	Appelez-nous	-
21	61002031		Screw   (Replaces: 3005-0033)	1			$ 43.43
22	3005-0025		Screw	1	Appelez-nous	-
23	3230-0088		Trim, Top Acces Panel	1	Appelez-nous	-
24	3230-0089		Trim,bottom, & Sides	1	Appelez-nous	-
25	WD27M257		Panel Kit (b/w)	1	Appelez-nous	-
26	2590-0012		Insulator	1	Appelez-nous	-
27	WD27M253		Panel, Access	1	Appelez-nous	-
28	WG04L00718		Toe Kick   (Replaces: WD27M252)	1			$ 34.31
29	WD34M407		Trim, Bottom	1	Appelez-nous	-
30	2590-0010		Insulator	1	Appelez-nous	-
31	WD27M254		Door, Outer	1	Appelez-nous	-
32	WD12M70		Harness Conduit	1	Appelez-nous	-
33	2645-0003		Latch Assembly	1	Appelez-nous	-
34	DC498UA		Manual, Use & Care	1	Appelez-nous	-
34	3265-0002		Vent Assy.	1	Appelez-nous	-
