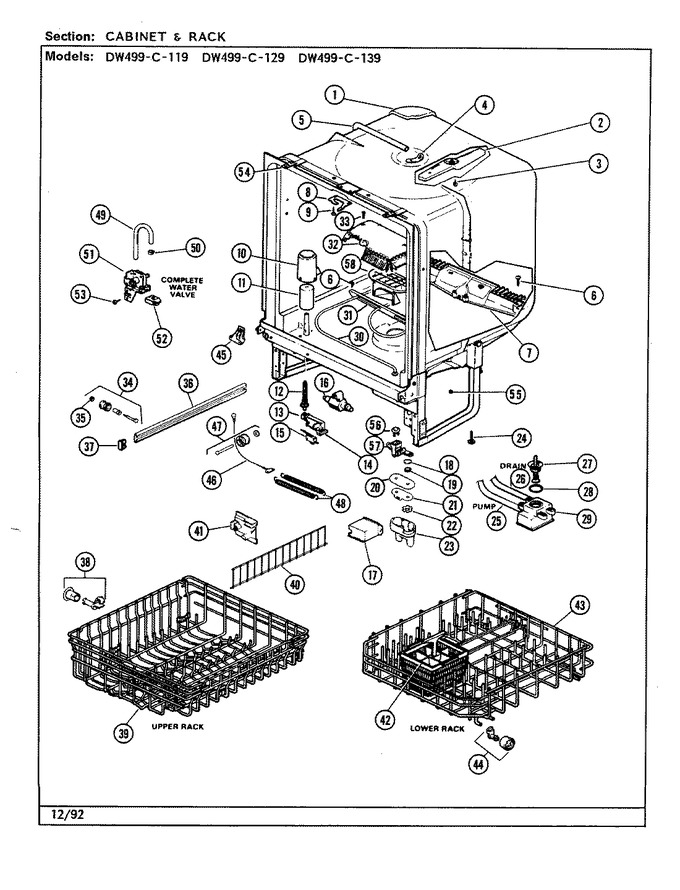

01 - Control Panel
02 - Door Assembly
03 - Pump Assembly
04 - Rack Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2585-0001 | Insulation | 1 |
|
- | ||||
| 2 | WW03F00159 | Arm, Spray (Replaces: WD22M13) | 1 |
|
Immediately | $ 170.53 | |||
| 3 | W11772394 | Screw (Replaces: 3005-0003) | 1 |
|
Immediately | $ 11.90 | |||
| 4 | WW03F00159 | Nut-strip (Replaces: 3120-0002) | 1 |
|
Immediately | $ 170.53 | |||
| 5 | 2530-0014 | Hose, Power Shower | 1 |
|
- | ||||
| 6 | 3005-0015 | Screw | 1 |
|
- | ||||
| 7 | 03000052 | Filter Assembly | 1 |
|
$ 5.49 | ||||
| 7 | 03000053 | Gasket, Filter | 1 |
|
- | ||||
| 8 | 2645-0005 | Keeper-latch | 1 |
|
- | ||||
| 9 | 03000001 | Screw | 1 |
|
- | ||||
| 10 | 2275-0009 | Float, Dome | 1 |
|
- | ||||
| 11 | 2410-0002 | Float, Flood | 1 |
|
- | ||||
| 12 | 3085-0001 | Stem, Float | 1 |
|
- | ||||
| 13 | 2145-0026 | Bracket, Switch | 1 |
|
- | ||||
| 14 | 2275-0020 | Cover | 1 |
|
- | ||||
| 15 | 3135-0005 | Switch, Float | 1 |
|
- | ||||
| 16 | 03000054 | Check Valve | 1 |
|
- | ||||
| 17 | 2275-0002 | Cover, Junction Box | 1 |
|
- | ||||
| 18 | 3280-0009 | Washer | 1 |
|
- | ||||
| 19 | 2480-0003 | Grommet | 1 |
|
- | ||||
| 20 | 2590-0005 | Insulator | 1 |
|
- | ||||
| 21 | 2145-0025 | Barrier, Bracket | 1 |
|
- | ||||
| 22 | 2735-0009 | Nut | 1 |
|
- | ||||
| 23 | 03000067 | Barrier | 1 |
|
- | ||||
| 24 | 2650-0002 | Screw, Leveling | 1 |
|
- | ||||
| 25 | WD2M169 | Clip | 1 |
|
- | ||||
| 25 | WD2M168 | Tube Grounding | 1 |
|
- | ||||
| 25 | WD24M21 | Hose, Pump | 1 |
|
- | ||||
| 25 | WD24M22 | Hose, Short | 1 |
|
- | ||||
| 26 | 2530-0011 | Hose, Check Valve | 1 |
|
- | ||||
| 27 | 2735-0033 | Piston & Nut Assembly | 1 |
|
- | ||||
| 28 | 2450-0014 | Gasket | 1 |
|
- | ||||
| 29 | Y03000055 | Coll. Chamber | 1 |
|
- | ||||
| 30 | WD5M5 | Heater | 1 |
|
- | ||||
| 31 | 03000068 | Support, Heater | 1 |
|
- | ||||
| 32 | 2275-0008 | Cover, Sump Inlet | 1 |
|
- | ||||
| 33 | 3005-0034 | Screw | 1 |
|
- | ||||
| 34 | 2955-0009 | Roller & Stud Assembly | 1 |
|
- | ||||
| 35 | 3280-0003 | Washer | 1 |
|
- | ||||
| 36 | WD12M71 | Rack Slide Assy. | 1 |
|
- | ||||
| 37 | 2355-0002 | End Cap, Rack Slide | 1 |
|
- | ||||
| 38 | 2955-0011 | Roller & Stud | 1 |
|
- | ||||
| 39 | WG04F12728 | Rack, Upper (Replaces: WD28M44) | 1 |
|
Immediately | $ 213.26 | |||
| 40 | WD12M73 | Support Cup Shelf | 1 |
|
- | ||||
| 41 | WD28M33 | Shelf, Cup | 1 |
|
- | ||||
| 42 | WG04F00380 | Basket, Silverware (Replaces: WD28M30) | 1 |
|
Immediately | $ 70.96 | |||
| 42 | WD2M121 | Lid, Basket Cutlery | 1 |
|
- | ||||
| 43 | WD28M68 | Lower Rack & Roller (Replaces: WD28M46) | 1 |
|
$ 92.82 | ||||
| 44 | 2955-0008 | Roller Assy. (rear Lower) | 1 |
|
- | ||||
| 44 | 2955-0007 | Roller Assembly,lower Front | 1 |
|
$ 27.81 | ||||
| 45 | 2045-0006 | Baffle, Tub (lt) | 1 |
|
- | ||||
| 45 | 2045-0005 | Baffle, Tub (rt) | 1 |
|
- | ||||
| 46 | 2190-0001 | Cable | 1 |
|
- | ||||
| 47 | 2955-0010 | Pulley & Shaft | 1 |
|
- | ||||
| 48 | WD2M171 | Spring, Door | 1 |
|
- | ||||
| 49 | 2530-0004 | Hose | 1 |
|
- | ||||
| 50 | 2235-0004 | Clamp, Fill Hose | 1 |
|
- | ||||
| 51 | WD15X93 | Valve, Water (Replaces: 3255-0009) | 1 |
|
$ 64.56 | ||||
| 52 | 2590-0004 | Insulator | 1 |
|
- | ||||
| 53 | WP3351614 | Screw (Replaces: 3005-0046) | 1 |
|
Immediately | $ 6.57 | |||
| 54 | WG04A00396 | Bracket (Replaces: WD2M162) | 1 |
|
$ 3.64 | ||||
| 55 | WD2M163 | Baffle | 1 |
|
- | ||||
| 56 | 03000069 | Safety Thermostat | 1 |
|
- | ||||
| 57 | 03000070 | Support, Thermostat | 1 |
|
- | ||||
| 58 | 2205-0003 | Cap, Sump | 1 |
|
- |
