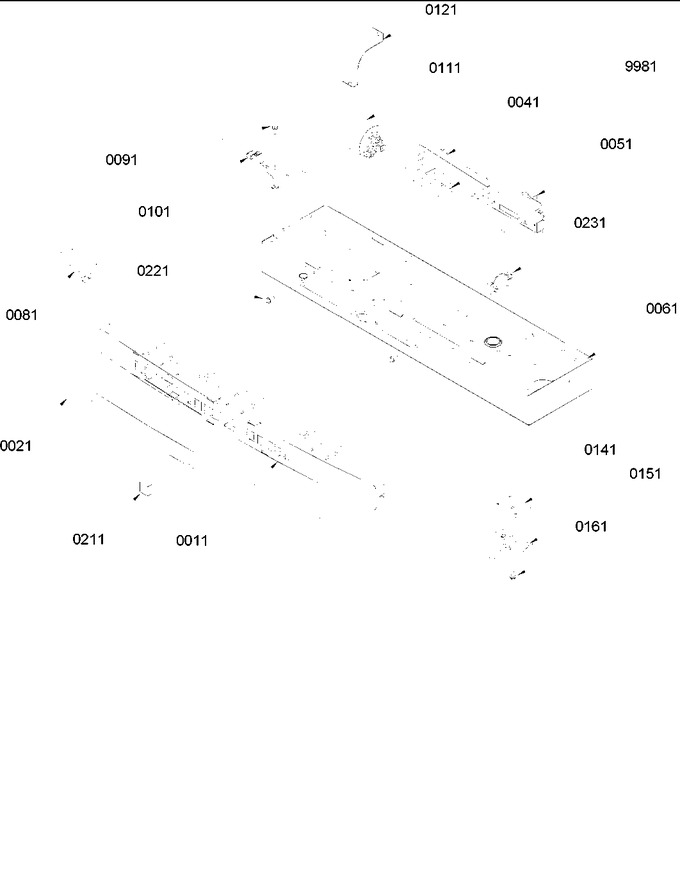

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 11 | 20052904 | Housing, Control |
|
- | |||||
| 21 | 20076101 | Overlay |
|
$ 39.99 | |||||
| 41 | 20067101 | Switch Push Button |
|
- | |||||
| 51 | 20070403 | Thermostat |
|
- | |||||
| 61 | 20063614 | Box-control |
|
- | |||||
| 81 | Y20057504 | Cord, Power |
|
- | |||||
| 91 | M0227803 | Screw |
|
- | |||||
| 101 | M0103906 | Clamp-speed |
|
- | |||||
| 111 | D6789064 | Capacitor, Round |
|
- | |||||
| 121 | C6300511 | Strap, Capacitor |
|
- | |||||
| 141 | 20050701 | Blocking, Indexing Vent |
|
- | |||||
| 151 | 20050801 | Lever-control, Vent |
|
- | |||||
| 161 | M0245104 | Screw-sm |
|
- | |||||
| 211 | Y20066001 | Knob |
|
- | |||||
| 221 | WP489349 | Screw (Replaces: M0216515) |
|
Immediately | $ 8.43 | ||||
| 231 | M0118702 | Clip-guide |
|
- | |||||
| 998 | 20113401 | Knob, Push Button |
|
- | |||||
| NI | 10839820 | Gasket, Foam |
|
- |
