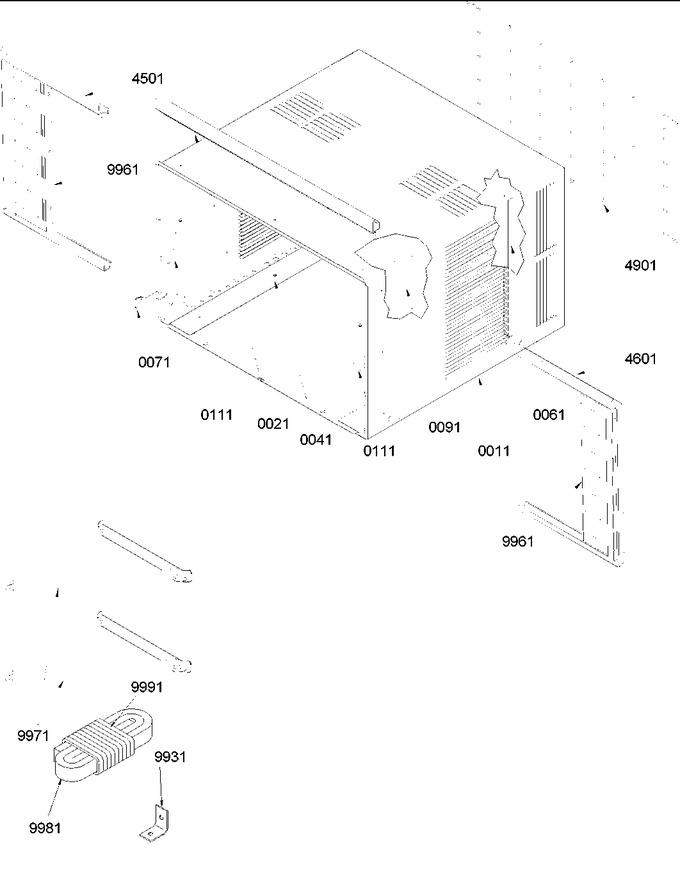

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	Y20060301		Outercase, Tox		Appelez-nous	-
21	Y20055103		Rail, Top		Appelez-nous	-
41	WP693995		Screw, Sm Stl   (Replaces: M0245203)			Immediately	$ 7.55
61	Y20065009		Seal Strip, Outer		Appelez-nous	-
71	20075701		Grommet, Power Cord		Appelez-nous	-
91	10839707		Gasket		Appelez-nous	-
111	10839807		Gasket		Appelez-nous	-
450	20050403		Frame, Sliding L		Appelez-nous	-
460	20050404		Frame, Sliding R		Appelez-nous	-
490	WRC23K		Grille, Rear (200)   (Replaces: 20063801)				$ 55.72
993	10661401		Brkt, Window Stop		Appelez-nous	-
996	20054903		Curtain, Rac		Appelez-nous	-
997	20061801		Brkt, Support		Appelez-nous	-
998	10839702		Gasket		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0211030)				$ 10.58
NI	WP90767		Screw   (Replaces: M0216716)			Immediately	$ 8.25
NI	M0213032		Screw		Appelez-nous	-
NI	M0213531		Screw, Sm		Appelez-nous	-
NI	10839720		Gasket .500 X .250		Appelez-nous	-
NI	20054801		Foot, Adjusting		Appelez-nous	-
NI	M0211020		Screw		Appelez-nous	-
NI	20065102		Clip, Basepan		Appelez-nous	-
NI	20081601		Mtg Kit Assy		Appelez-nous	-
NI	10228317		Kit-window Mounting-curtains		Appelez-nous	-
NI	Y20064101		Sub 20064101a Drain		Appelez-nous	-
