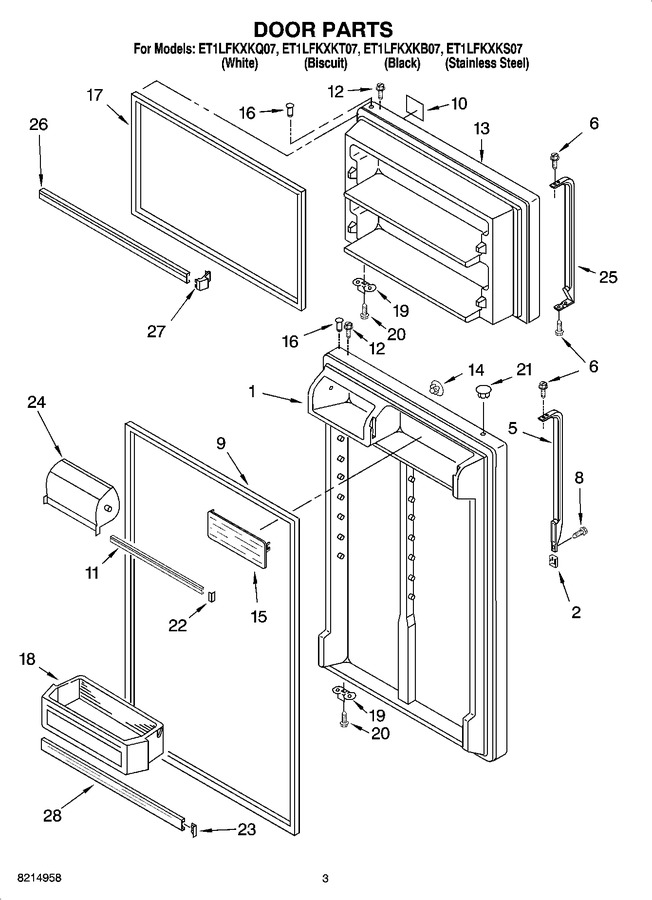

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2225437		Refrigerator Door (includes Illus. 9, & 16) (stainless Steel)		Appelez-nous	-
1	W11023679		Refrigerator Door (includes Illus. 9 & 16) (white)   (Replaces: 2183920)				$ 722.23
1	W11023688		Refrigerator Door (includes Illus. 9 & 16) (biscuit)   (Replaces: 2205284)		Appelez-nous	-
1	W11023687		Refrigerator Door (includes Illus. 9 & 16) (black)   (Replaces: 2200714)				$ 767.09
2	2193353T		Handle, Trim (biscuit)		Appelez-nous	-
2	WP2193353W		Handle, Trim (white)   (Replaces: 2193353W)				$ 8.11
2	2193353B		Handle, Trim (black)				$ 5.85
5	4388947		Handle, Refrigerator (white)   (Replaces: 2213112W)				$ 194.73
5	2213112T		Handle, Refrigerator (biscuit)		Appelez-nous	-
5	4388950		Handle, Refrigerator (black)   (Replaces: 2213112B)				$ 224.58
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.19
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.56
9	2159061		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202875)			Immediately	$ 183.67
10	2200957		Nameplate (white)		Appelez-nous	-
10	2200959		Nameplate (black)		Appelez-nous	-
10	2205136		Nameplate (biscuit)		Appelez-nous	-
11	WP2201061		Trim, Door Shelf   (Replaces: 2195378)				$ 118.40
12	WP8281206		Screw   (Replaces: 8281206)				$ 7.94
13	W11023679		Freezer Door (includes Illus. 16 & 17) (white)   (Replaces: 2182489)				$ 722.23
13	2225438		Freezer Door (includes Illus. 16, & 17) (stainless Steel)		Appelez-nous	-
13	W11023687		Freezer Door (includes Illus. 16 & 17) (black)   (Replaces: 2200711)				$ 767.09
13	W11023688		Freezer Door (includes Illus. 16 & 17) (biscuit)   (Replaces: 2204686)		Appelez-nous	-
14	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 7.59
14	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 7.40
14	WP2189009		Hole Plug, Handle (black)   (Replaces: 2189009)				$ 7.25
15	WP2188236		Shelf, Flip-up   (Replaces: 2188236)				$ 61.31
16	WP2183003		Thimble   (Replaces: 2183003)				$ 7.75
17	2159060		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214967)				$ 320.01
18	WP2204812		Bin, Door Shelf   (Replaces: 2204812)				$ 76.62
19	W11745278		Bracket, Door Stop (2)   (Replaces: 2189202)			Immediately	$ 13.37
20	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.75
21	WP2212648		Hole Plug (2) (white)   (Replaces: 2212648)			Immediately	$ 7.80
21	WP2212651		Hole Plug (2) (black)   (Replaces: 2212651)				$ 23.06
21	WP2212649		Hole Plug (2) (biscuit)   (Replaces: 2212649)				$ 7.61
22	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.65
23	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 12.18
24	WP2218118		Compartment Door   (Replaces: 2218118)				$ 78.02
25	4388947		Handle, Freezer (white)   (Replaces: 2213111W)				$ 194.73
25	2213111T		Handle, Freezer (biscuit)		Appelez-nous	-
25	4388950		Handle, Freezer (black)   (Replaces: 2213111B)				$ 224.58
26	2195947		Trim-door (2)				$ 50.94
27	WP2195916K		Endcap (4)   (Replaces: 2195916)			Immediately	$ 12.55
28	WPW10421486		Trim, Door   (Replaces: 2195948)				$ 109.28
