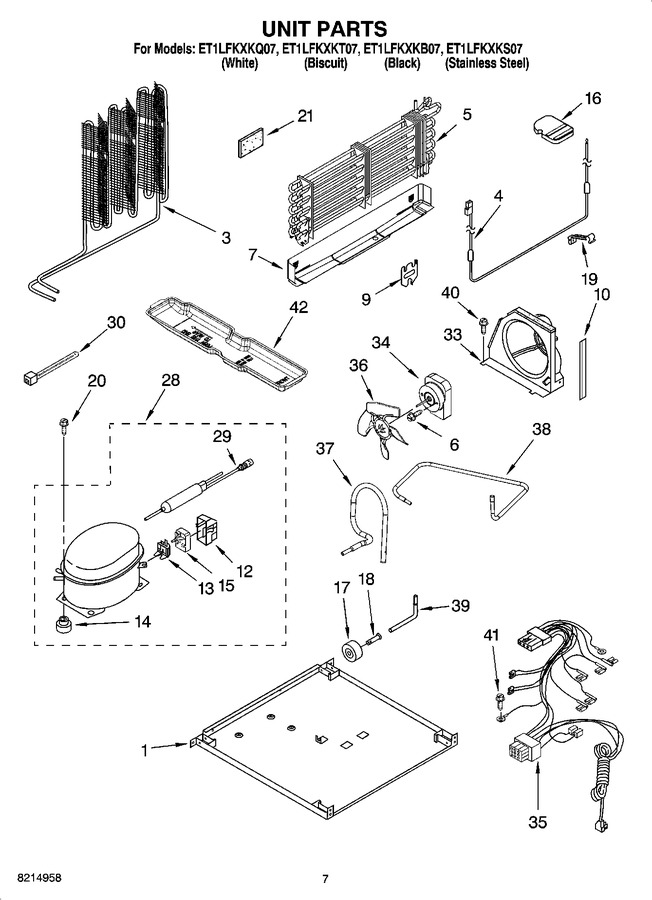

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2225596		Plate, Unit Mounting		Appelez-nous	-
3	2214960		Condenser				$ 141.57
4	WPW10140847		Heater, Defrost   (Replaces: 2314157)				$ 159.37
5	2254249		Evaporator Assy				$ 239.15
6	WPW10171469		Screw   (Replaces: 8533859)			Immediately	$ 11.06
7	2254295		Drain Pan				$ 74.91
9	2176301		Bracket, Heater				$ 6.37
10	2300638		Extension, Air Baffle				$ 52.69
12	WP2162358		Production   (Replaces: 2162358)				$ 90.75
12	WP2162358		Cover Service Only)   (Replaces: 4387731)				$ 90.75
13	WP2302290		Production   (Replaces: 2302290)				$ 133.54
13	WP4387938		Overload (service Only)   (Replaces: 4387938)				$ 189.12
14	876811		Grommet (4) (production)   (Replaces: 1100826)				$ 7.42
14	WP4387558		Grommet (4) (service)   (Replaces: 4387558)				$ 6.95
15	WP2258450		Relay   (Replaces: 2258450)				$ 112.82
16	2201185		Support Block				$ 8.21
17	WPW10475495		Roller (2)   (Replaces: 2150304)			Immediately	$ 32.06
18	W11594405		Rivet   (Replaces: 2221797)			Immediately	$ 18.21
19	2182338		Clip, Heater				$ 6.62
20	876811		Screw   (Replaces: 489373)				$ 7.42
21	W11553819		Insulation, Sound Dampening   (Replaces: 2169104)			Immediately	$ 14.07
28	W10823815		Compressor (includes Items 12,13,14,29)   (Replaces: 2225647)				$ 674.15
29	W10843121		Drier (production)   (Replaces: 2319825)			Immediately	$ 52.57
29	W10843121		Drier (service)   (Replaces: 4387019)			Immediately	$ 52.57
30	WPW10339879		Strap   (Replaces: 2155774)				$ 7.90
33	2302249		Air Baffle				$ 37.70
34	WP2188874		Motor, Condenser   (Replaces: 2188874)			Immediately	$ 113.96
35	2187764		Wire Assembly, Unit				$ 258.93
36	W11458267		Fan Blade   (Replaces: 2225834)			Immediately	$ 23.99
37	2205294		Tube, Discharge				$ 54.65
38	2205293		Tube, Suction				$ 98.29
39	W11676464		Tube, Process   (Replaces: 2212848)				$ 103.44
40	3400518		Screw				$ 12.98
41	WP489128		Screw   (Replaces: 488500)				$ 10.88
42	978029		Valve Access (5/8``)				$ 93.85
42	978030		Valve, Access (3/4``)				$ 130.71
42	876764		Valve, Access(3/16``)			Immediately	$ 91.35
42	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 105.25
42	8201826		Tray, Evaporator   (Replaces: 2300635)				$ 156.93
42	978026		Valve, Access (5/16``)			Immediately	$ 128.09
42	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 21.64
42	978028		Valve, Access (1/2)		Appelez-nous	-
