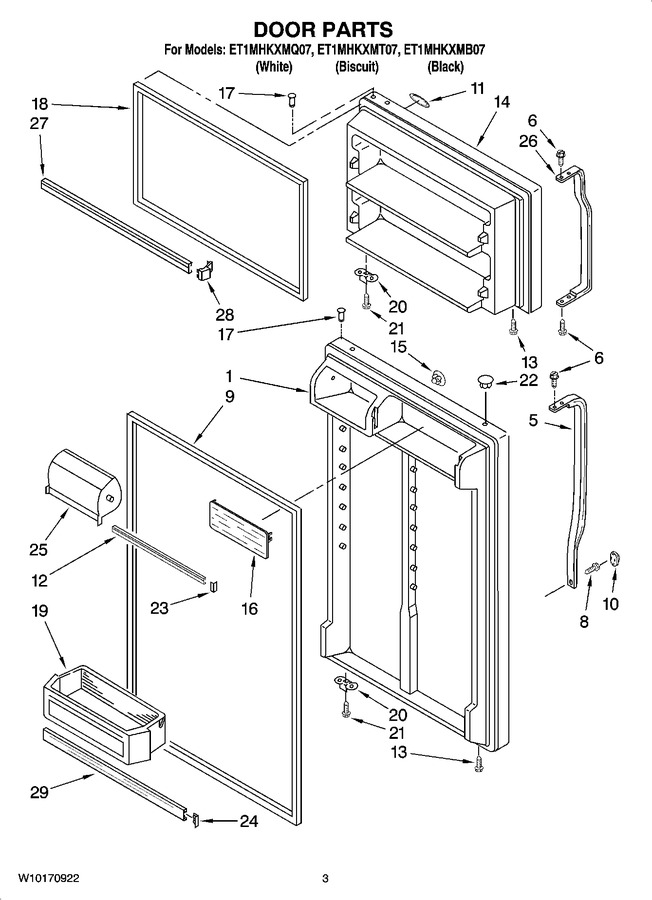

02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11023687 | Refrigerator Door (includes Illus. 9 & 17) (black) (Replaces: 2200714) |
|
$ 767.09 | |||||
| 1 | W11023679 | Refrigerator Door (includes Illus. 9 & 17) (white) (Replaces: 2183920) |
|
$ 722.23 | |||||
| 1 | W11023688 | Refrigerator Door (includes Illus. 9 & 17) (biscuit) (Replaces: 2205284) |
|
- | |||||
| 5 | WP2202807W | Handle, Refrigerator (white) (Replaces: 2202807W) |
|
$ 155.22 | |||||
| 5 | 2202807B | Handle, Refrigerator (black) |
|
$ 66.99 | |||||
| 5 | 2202807T | Handle, Refrigerator (biscuit) |
|
$ 64.39 | |||||
| 6 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 7.19 | ||||
| 8 | WP8281146 | Screw (Replaces: 8281146) |
|
$ 7.56 | |||||
| 9 | 2177311 | Door Gasket, Magnetic (black) (Replaces: 2202882) |
|
$ 315.19 | |||||
| 9 | 2159061 | Door Gasket, Magnetic (mist Beige) (Replaces: 2202875) |
|
Immediately | $ 183.67 | ||||
| 10 | WP2202819B | Cover, Screw (black) (Replaces: 2202819B) |
|
$ 10.89 | |||||
| 10 | WP2202819W | Cover, Screw (white) (Replaces: 2202819W) |
|
Immediately | $ 7.75 | ||||
| 10 | 2202819T | Cover, Screw (biscuit) |
|
$ 8.02 | |||||
| 11 | WP2213265 | Nameplate (Replaces: 2262218) |
|
Immediately | $ 88.74 | ||||
| 12 | WP2201061 | Trim, Door Shelf (Replaces: 2195378) |
|
$ 118.40 | |||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.94 | |||||
| 14 | W11023679 | Freezer Door (includes Illus. 17 & 18) (white) (Replaces: 2182489) |
|
$ 722.23 | |||||
| 14 | W11023687 | Freezer Door (includes Illus. 17 & 18) (black) (Replaces: 2200711) |
|
$ 767.09 | |||||
| 14 | W11023688 | Freezer Door (includes Illus. 17 & 18) (biscuit) (Replaces: 2204686) |
|
- | |||||
| 15 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 7.40 | ||||
| 15 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2189009) |
|
$ 7.25 | |||||
| 15 | WP2200936 | Hole Plug, Handle (biscuit) (Replaces: 2200936) |
|
$ 7.59 | |||||
| 16 | WP2188236 | Shelf, Flip-up (Replaces: 2188236) |
|
$ 61.31 | |||||
| 17 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.19 | |||||
| 18 | 2159060 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214967) |
|
$ 320.01 | |||||
| 18 | 2177310 | Door Gasket,magnetic (black) (Replaces: 2214969) |
|
$ 319.34 | |||||
| 19 | WP2204812 | Bin, Door Shelf (Replaces: 2204812) |
|
$ 76.62 | |||||
| 20 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 13.37 | ||||
| 21 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.86 | ||||
| 22 | WP2212649 | Hole Plug (biscuit) (Replaces: 2212649) |
|
$ 7.61 | |||||
| 22 | WP2212651 | Hole Plug (black) (Replaces: 2212651) |
|
$ 23.06 | |||||
| 22 | WP2212648 | Hole Plug (white) (Replaces: 2212648) |
|
Immediately | $ 7.80 | ||||
| 23 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.65 | ||||
| 24 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 12.18 | ||||
| 25 | WP2218118 | Compartment Door (Replaces: 2218118) |
|
$ 78.02 | |||||
| 26 | WP2202806W | Handle, Freezer (white) (Replaces: 2202806W) |
|
$ 148.00 | |||||
| 26 | 2202806T | Handle, Freezer (biscuit) |
|
$ 63.61 | |||||
| 26 | WP2202806B | Handle, Freezer (black) (Replaces: 2202806B) |
|
$ 147.21 | |||||
| 27 | 2195947 | Trim-door (2) |
|
$ 50.94 | |||||
| 28 | WP2195916K | Endcap, Trim (4) (Replaces: 2195916) |
|
Immediately | $ 12.55 | ||||
| 29 | WPW10421486 | Trim, Door (Replaces: 2195948) |
|
$ 109.28 |
