SELECT A DIAGRAM
01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts

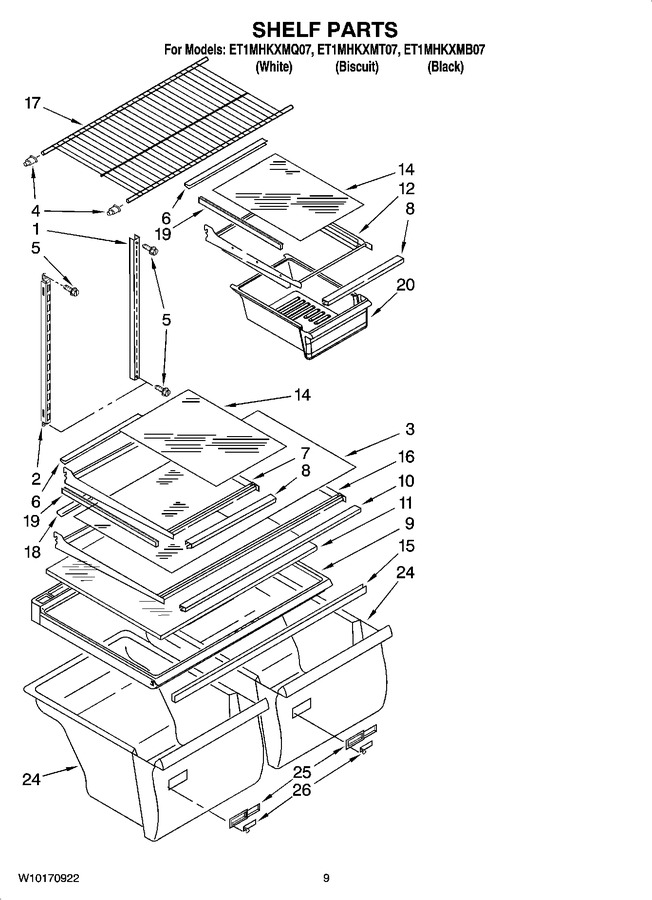

05 - Shelf Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 3 | 2200988 | Glass, Full Shelf |
|
- | |||||
| 4 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 14.70 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 6 | WP2188689 | Trim, Shelf Rear (Replaces: 2188687) |
|
$ 121.55 | |||||
| 7 | 2201102E | Shelf, Cantilever |
|
- | |||||
| 8 | 2188685 | Trim, Shelf Front |
|
- | |||||
| 9 | WP2314549 | Crisper Cover (Replaces: 2314502) |
|
$ 279.10 | |||||
| 10 | 2188691 | Trim, Shelf (front) |
|
$ 50.70 | |||||
| 11 | WP2176225 | Insert, Crisper Cover (Replaces: 2210573) |
|
$ 264.41 | |||||
| 12 | 2201106 | Pan, Shelf Cantilever |
|
$ 77.79 | |||||
| 14 | 2200987 | Glass, Shelf |
|
- | |||||
| 15 | WP2172748 | Crisper Support (Replaces: 2314478) |
|
$ 102.08 | |||||
| 16 | 2201104E | Shelf, Full Cantilever |
|
- | |||||
| 17 | 2189454 | Shelf, Freezer |
|
- | |||||
| 18 | WP2188689 | Trim, Shelf (rear) (Replaces: 2188689) |
|
$ 121.55 | |||||
| 19 | 2188711 | Trim, Shelf Side |
|
- | |||||
| 20 | WP2218132K | Pan, Meat (Replaces: 2218132K) |
|
Immediately | $ 159.64 | ||||
| 24 | W10854037 | Crisper Pan (includes Illus. 25 & 26) (Replaces: 2218141) |
|
Immediately | $ 179.19 | ||||
| 25 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 15.81 | |||||
| 26 | WP2176222 | Slide, Humidity Control (Replaces: 2176222) |
|
$ 27.35 | |||||
| 1117510 | Torx Key |
|
$ 5.84 | ||||||
| 72032 | Brush Touch-up Kit (black) |
|
Immediately | $ 18.69 | |||||
| 212643 | Sealer, Gum (4 Feet) |
|
Immediately | $ 82.13 | |||||
| 479502 | Tape, Vinyl 3/4 X 108``) |
|
$ 66.77 | ||||||
| 876370 | Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``) |
|
$ 243.14 | ||||||
| 876029 | Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``) |
|
- | ||||||
| 511873 | Touch-up, White Porcelain (2 Oz.) |
|
$ 51.75 | ||||||
| 606755 | Bag, Insulation (36-5/8`` X 46``) |
|
$ 82.37 | ||||||
| 799833 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | ||||||
| 799832 | Kit. Porcelain Repair (white) |
|
- | ||||||
| 350942 | Primer, White (12 Oz. Spray Can) |
|
$ 94.14 | ||||||
| 285006 | Enamel, Black (12 Oz. Spray Can) (Replaces: 350939) |
|
$ 59.89 | ||||||
| 72017 | Brush Touch-up Kit (white) |
|
Immediately | $ 12.30 | |||||
| 350930 | Enamel, White (12 Oz. Spray Can) |
|
Immediately | $ 40.12 | |||||
| 4392899 | Brush Touch-up Kit (biscuit |
|
Immediately | $ 27.77 | |||||
| 799340 | Enamel, Black (1 Qt. Uncut) |
|
- | ||||||
| 799344 | Enamel, White (1 Qt. Uncut) |
|
$ 237.46 | ||||||
| 4392900 | Enamel, Biscuit (1 Qt. Uncut) |
|
- | ||||||
| 833938 | Kit, Terminal Connector |
|
$ 8.47 | ||||||
| W11729596 | Eckmf-94 (Replaces: 2155469) |
|
Immediately | $ 150.98 | |||||
| 4392901 | Enamel, Biscuit (12 Oz. Spray Can) |
|
- | ||||||
| WP503695 | Cork, Sealer 1/4 Pound) (Replaces: 503695) |
|
$ 123.84 | ||||||
| 542639 | Cement, Alumilastic 1-1/4 Oz.) |
|
- | ||||||
| WP542638 | Grease, Silicone (1/2 Oz.) (Replaces: 542638) |
|
Immediately | $ 12.78 | |||||
| WP505587 | Sealer, Mastic (1 Qt.). (Replaces: 505587) |
|
Immediately | $ 182.65 | |||||
| 876370 | Kit, Insulation (14 Pcs. 3`` X 24`` X 48``) (Replaces: 876305) |
|
$ 243.14 | ||||||
| 876370 | Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``) (Replaces: 978941) |
|
$ 243.14 |
