SELECT A DIAGRAM

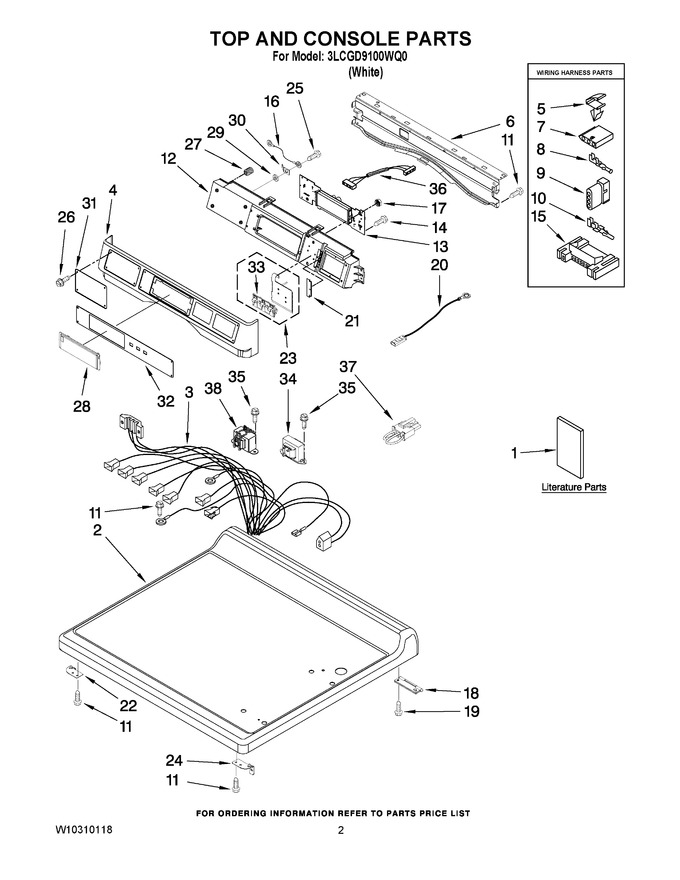

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10096909 Burner Assembly


05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10310116		User Instruction		Appelez-nous	-
1	W10310126		Installation Instruction		Appelez-nous	-
1	W10306604		Tech Sheet		Appelez-nous	-
1	W10310118		Parts List		Appelez-nous	-
2	W11622909		Top   (Replaces: W10137410)		Appelez-nous	-
3	W10111046		Harness, Main		Appelez-nous	-
4	W10779120		Console (outer)   (Replaces: W10137459)				$ 132.04
5	WP3394427		Clip, Harness   (Replaces: 3394427)				$ 7.79
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 180.73
7	353424		Connector, Sensor				$ 18.95
8	WP94614		Terminal   (Replaces: 94614)				$ 7.67
9	3936144		Plug, Terminal				$ 20.21
10	94613		Terminal		Appelez-nous	-
11	WP489464		Screw, 8-18 X 1/2   (Replaces: W10080700)			Immediately	$ 7.83
12	W11790400		Console (inner)   (Replaces: W10137427)		Appelez-nous	-
13	WPW10166346		User-interface Assembly   (Replaces: W10166346)				$ 313.29
14	489136		Screw, 3-24 X 1/32				$ 10.29
15	3395683		Connector (motor)			Immediately	$ 51.86
16	W10188087		Ground Wire Assembly		Appelez-nous	-
17	WPW10139046		Nut, 6-32   (Replaces: W10139046)				$ 8.79
18	WP8565018		Hinge & Pin Assembly   (Replaces: 8565018)				$ 109.85
19	W10080310		Screw, 8-18 X 1/2		Appelez-nous	-
20	W10257051		Jumper, Static		Appelez-nous	-
21	W10187276		Seal-console		Appelez-nous	-
22	W10137445		Bracket - Top Panel, Left		Appelez-nous	-
23	WPW10135255		Assembly, Membrane Switch & Backer Plate   (Replaces: W10135255)				$ 208.96
24	W10137444		Bracket - Top Panel, Right		Appelez-nous	-
25	WP488234		Screw,8-32x1/4   (Replaces: 488234)				$ 6.74
26	WPW10137457		Screw, 8-32 X 3/64   (Replaces: W10137457)				$ 6.94
27	WPW10189313		Insert (8)   (Replaces: W10189313)				$ 8.79
28	WPW10131114		Display Cover   (Replaces: W10131114)				$ 47.54
29	W10189075		Washer, Brass				$ 18.22
30	3373818		Tab-grounding		Appelez-nous	-
31	W10296436		Facia-dispenser		Appelez-nous	-
32	W10296434		Facia-console		Appelez-nous	-
33	W10803340		Push Button   (Replaces: W10137455)				$ 117.38
34	W10237958		Transformer 240 - 120 Vac		Appelez-nous	-
35	W10080820		Screw, 8-18 X 5/16		Appelez-nous	-
36	W10166307		Harness, Communication				$ 39.35
37	W11129439		Switch, Jumper Service Vault   (Replaces: W10133282)				$ 16.82
38	W10751202		Transformer, 120 - 22.5 Vac   (Replaces: W10205520)				$ 214.61

    View Diagram in Separate Window       Print Part List
