01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - W10096909 Burner Assembly

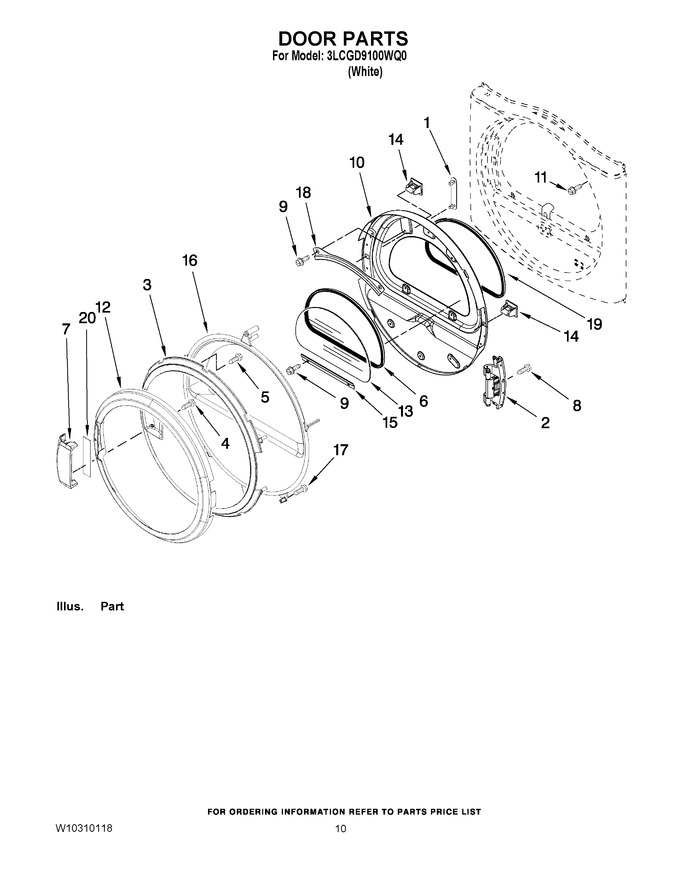

05 - Door Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8565119		Plug Strip (inner Door)				$ 93.64
2	WPW10304672		Door Hinge Assembly   (Replaces: W10304672)			Immediately	$ 221.41
3	8565111		Assembly, Door Intermediate		Appelez-nous	-
4	W10080840		Screw, 8-18 X 5/8		Appelez-nous	-
5	3400618		Screw, 6-32 X 3/8				$ 64.70
6	W11706993		Seal, Window   (Replaces: 8579663)				$ 26.88
7	8576578		Handle, Door (includes Illus. 20.)				$ 50.30
8	WPW10159996		Screw, 10-24 X 3/64   (Replaces: W10159996)				$ 7.68
9	W10080720		Screw, 10-16		Appelez-nous	-
10	WPW10164062		Door Assembly (inner) (includes Illus. 1,14 & 19)   (Replaces: W10259900)				$ 337.21
11	WP355515		Screw, 8-18 X 11/16   (Replaces: 355515)				$ 7.67
12	8576577		Door, Outer Ring				$ 328.52
13	WPW10286878		Window   (Replaces: W10286878)				$ 261.68
14	279570		Door Catch Assembly   (Replaces: 690081)			Immediately	$ 8.89
15	W10822054		Retainer (lower)   (Replaces: 8519354)			Immediately	$ 17.15
16	WP8580059		Door, Intermediate   (Replaces: 8580059)				$ 102.38
17	WP8534022		Screw   (Replaces: 8534022)				$ 7.94
18	8519356		Retainer (upper)		Appelez-nous	-
19	WPW10163915		Door Seal   (Replaces: W10163915)			Immediately	$ 87.42
20	WPW10112927		Pad, Door Handle   (Replaces: W10112927)				$ 7.91
